2017 Doosan DNM 750L II
No longer available
2017 Doosan DNM 750L II
Location:California
Description
30 Station Side Mounted Tool Changer

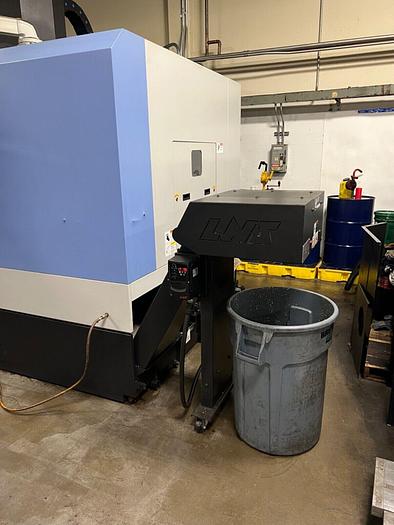

Probing Package with Tool and Part Probing Chip Conveyor-Side Exit Type
Quad Chip Auger System 12,000 RPM Spindle
Coolant Through the Spindle - 290 PSI
Flood Coolant Hand Held MPG
Rigid Tapping
RS 232 Port Interface
3 Color Machine Status Condition Lights
Wired 220V Electrics All Available Manuals
**Power On Hours 31,342**
**Cutting Hours 8,906**
**Machine is manufactured new in August of 2017**
Specifications
| Manufacturer | Doosan |
| Model | DNM 750L II |
| Year | 2017 |
| Condition | Used |
| Stock Number | 119178 |

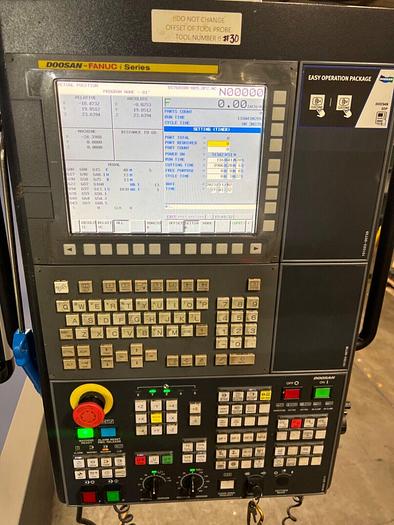

| Control | Fanuc i Series Control |
| Table Size | 85" x 29.96" |
| Maximum Table Load | not available |
| X-Axis Travel | 85" |
| Y-Axis Travel | 30" |
| Z-Axis Travel | 24.6" |
| Spindle Taper | CAT 40 Big Plus |
| Spindle Speeds | 12,000 RPM |
| Spindle Motor | 25 HP |
| Number of Tool Positions | 30 Station Tool Changer - Side Mounted |
| Maximum Tool Diameter / Length / Weight | 4.92" / 13.78" / 18.74 lbs. |
| Tool Change Time Tool to Tool | 1.2 Seconds |
| Tool Change Time Chip to Chip | 2.86 seconds |
| Rapid Traverse Rates X, Y / Z | 1181 IPM / 945 IPM |
| Machine Dimensions LxWxH | not available |
| Machine Weight | not available |
