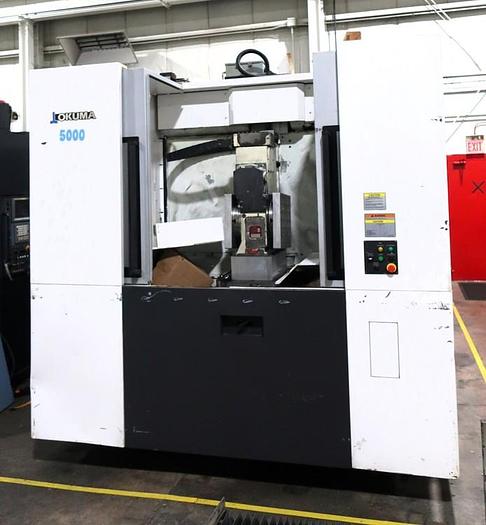

2014 Okuma MB-5000H

2014 Okuma MB-5000H

Contact us for price

Location:Illinois

orCall (863) 439-6066

Description

2 Pallet Changer System

Full 4th Axis Rotary Table

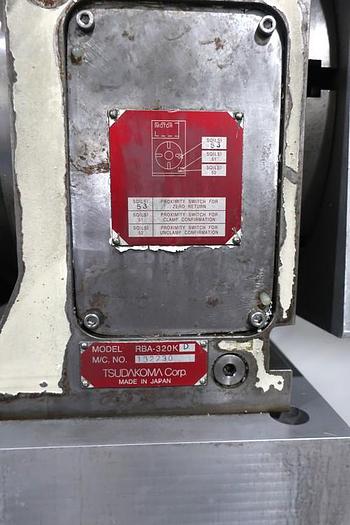

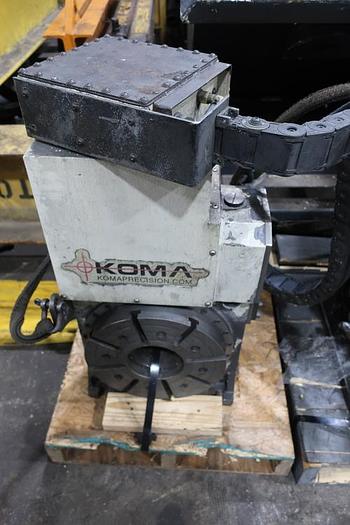

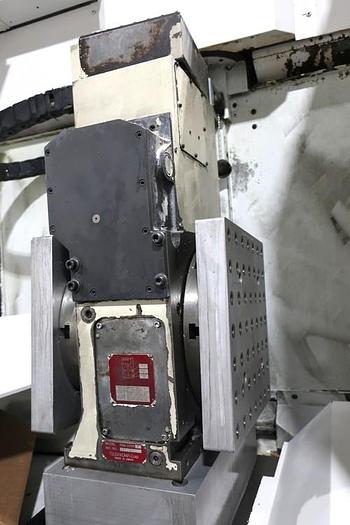

Tsudakoma 12.5" Diameter RBA-320K Rotary Tables Mounted on 4th Axis Tables

4th & 5th Axis Drives

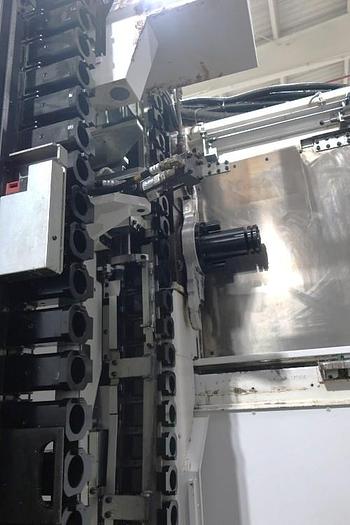

64 Station Tool Changer

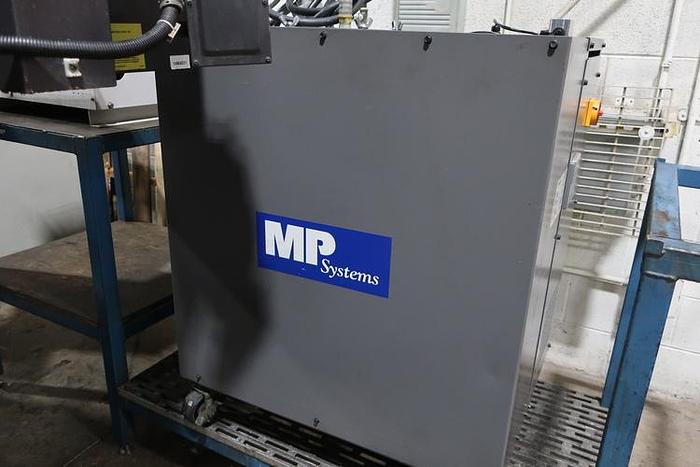

MP Systems High Pressure Coolant Pump

Coolant Through the Spindle

15,000 RPM Spindle

Chip Conveyor

Mist Collector

Machine Management

Custom API

B Axis Limit

Feed Backlash Function

Inductosyn B

Animation

Graphics

Tool Life Management

Spare T1 Change

Vertical Backlash

Add Axis A, B, C

DNC-T1

Comp Variables 200 Sets

Helical Cutting

One Direct Position

Safety Logic SP

Skip Function

High Speed Interpolation

Nurbs Command

Super Hi NC

6 Axis Control

Shower Wash Coolant

Tool Breakage Detection

Rigid Tapping

Remote Jog Handle

USB Port Interface

RS 232 Port Interface

All Available Manuals

Approximately (50) Tool Holders


**NC Running Hours 30,876**

**Spindle Running Hours 26,094**

**Cutting Hours 19,543**



Specifications

ManufacturerOkuma
ModelMB-4000H
Year2014
ConditionUsed
Stock Number119172
Machine ControlOkuma OSP P-300M Control
Table Size / Number of Pallets19.7" x 19.7" / 2 Pallet Changer
Maximum Table Load1,000 lbs
Pallet Indexing.001 Degrees Full 4th
X-Axis Travel29.92"
Y-Axis Travel29.92"
Z-Axis Travel29.92"
Spindle Speed15,000 RPM
Spindle TaperCAT 40
Spindle Motor40 HP
Tool Magazine Capacity64 Station Tool Changer
Maximum Tool Diameter / Length / Weight5.91" / 11.81" / 22 lbs.
Rapid Traverse Rates2,362 IPM
Cutting Feedrates2,362 IPM
Machine Dimensions LxWxH182" x 102.56" x 114"
Machine Weight27,500 lbs
