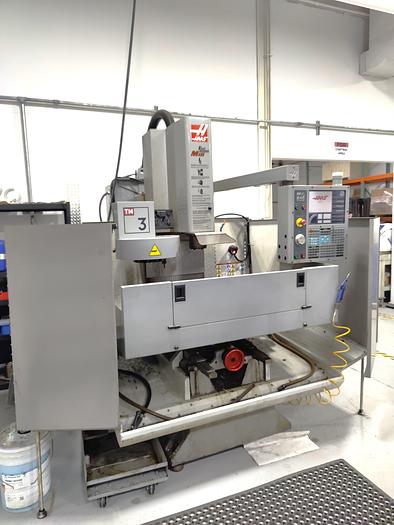

2008 Haas TM-3
No longer available
2008 Haas TM-3
Location:New York, NY
Description
4th Axis Drive & Wiring
Haas Wireless Intuitive Probing (Tool & Part Probes)
User Definable Macros
Spindle Orientation
Coordinate Rotation & Scaling
Haas Intuitive Programming System
Manual Hand Wheels
Coolant Half Guard Covers
RS232 Port Interface
Coolant System with Tank & Pump
Brushless Servos
Machine can be wired either Single Phase 240V or Three Phase 208V Electrics
**Servo On Hours 6,721**
**Spindle Hours 1,043**
**Machine is under power running parts, but does have some noise in both the spindle and Y axis**

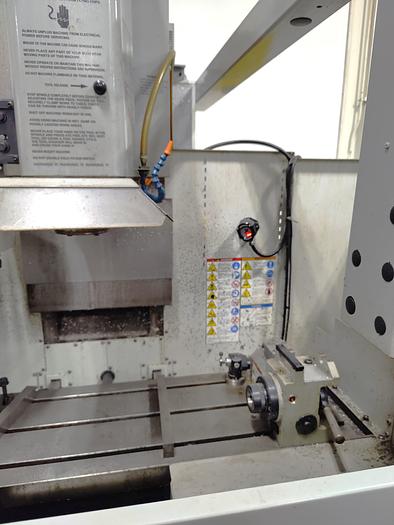

**Haas HA5C Indexer in photos is NOT included in purchase**
Specifications
| Manufacturer | Haas |
| Model | TM-3 |
| Year | 2008 |
| Condition | Used |
| Stock Number | 119167 |
| Table Size | 57.75" x 14.5" |
| Maximum Table Load | 1,000 lbs |
| X-Axis Travel | 40" |
| Y-Axis Travel | 20" |
| Z-Axis Travel | 16" |
| Spindle Speed | 4,000 RPM |
| Spindle Taper | CAT 40 |
| Spindle Motor | 7.5 HP |
| Distance Spindle Nose to Table Top | 4" - 20" |
| Tool Magazine Capacity | 10 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 3.5" / NA / 12 lbs |
| Rapid Traverse Rates | 400 IPM |
| Machine Dimensions LxWxH | 128"x90"x102" |
| Machine Weight | 5,780 lbs |
