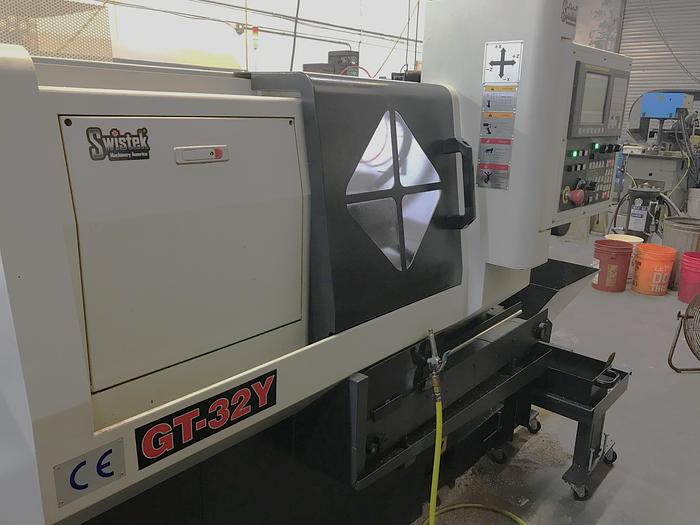

2018 Swistek GT328 DDY
Featured
No longer available
2018 Swistek GT328 DDY
$39,950 (USD)
Location:New York, NY
Description
Y Axis Capability
Full C Axis 360,000 Live Milling and Drilling Capability for Both Face and OD

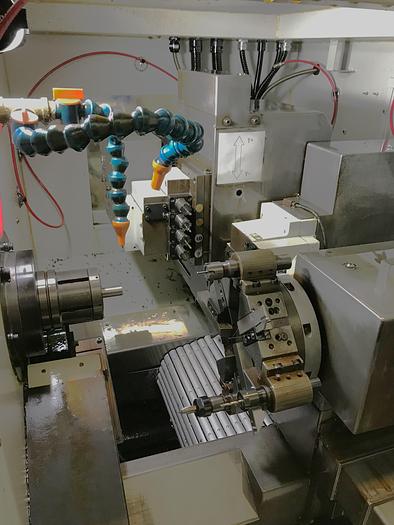

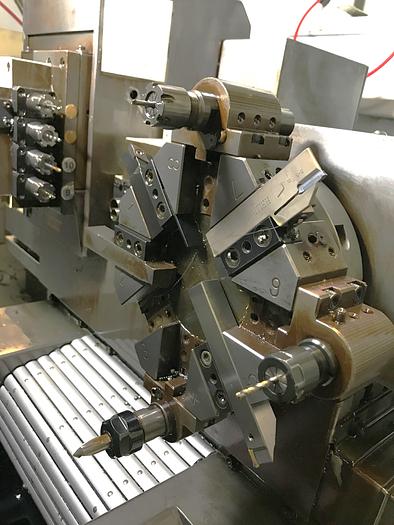

8 Station Turning Turret

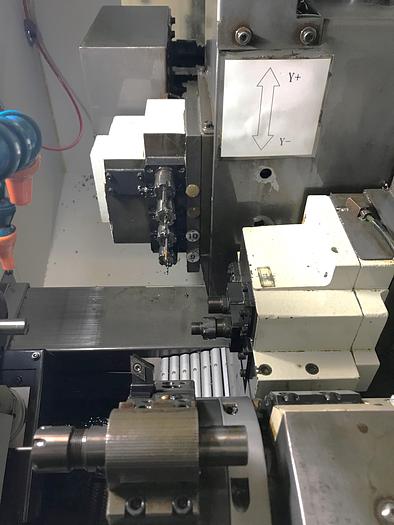

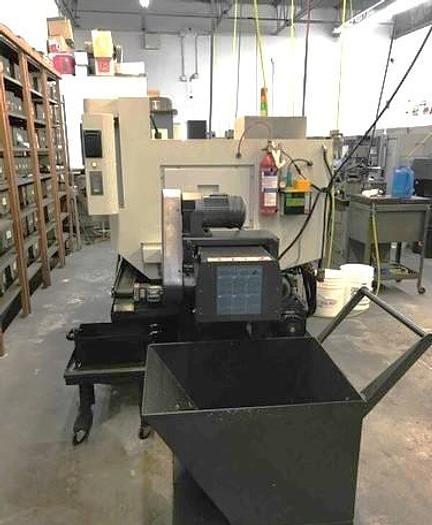

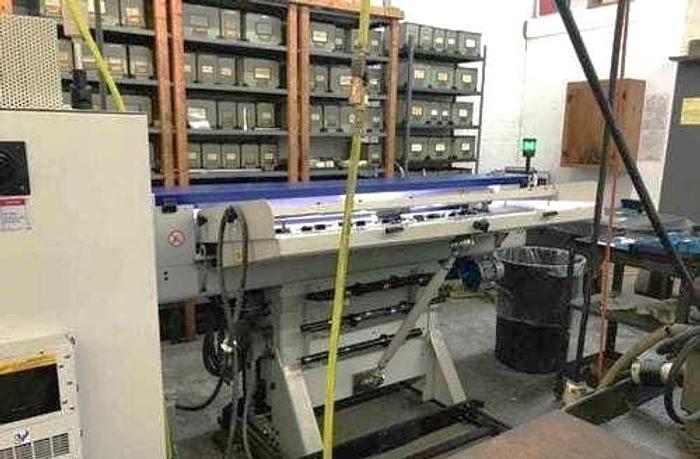

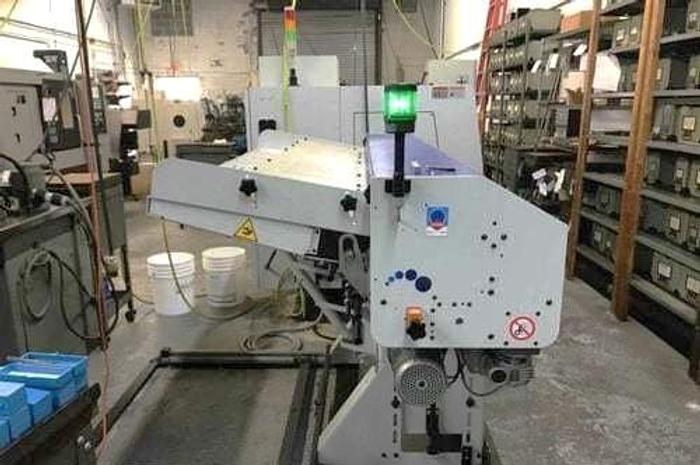

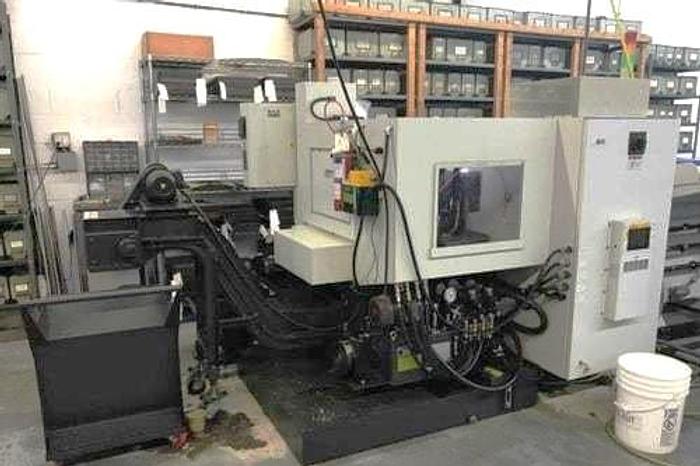

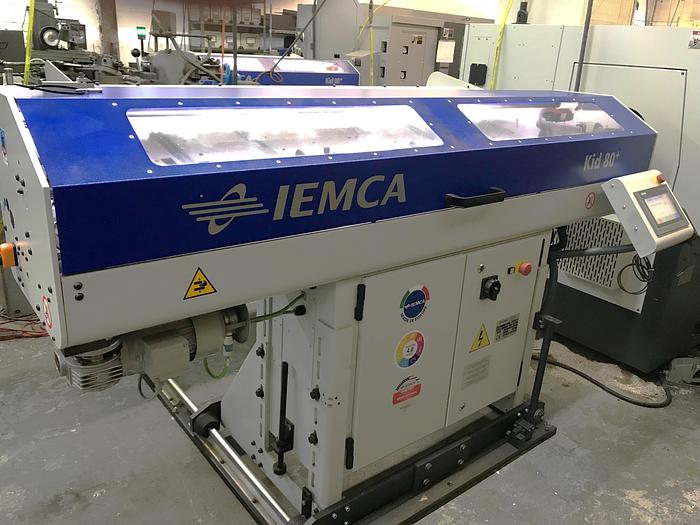

Dual Gang Slides for Y Axis OD Work and Face Milling Using ER-16 Collets Iemca Kid 10/16 Autoload Barfeeder - 3.15" Max Diameter x 63.63" Max Length Chip Conveyor Parts Catcher
Parts Exit Conveyor
Fire-Tek Fire System Self Installation C-Fire RS 232 Port Interface 3 Color Machine Status Condition Lights
Coolant System with Tank & Pump
All Available Manuals
All Available Static Holders and ER-16 Tooling
(7) Spindle Liners 1/2", 3/4", 7/8", 1", 1 1/16", 1 18", and 1 3/16"
Specifications
| Manufacturer | Swistek |
| Model | GT328 DDY |
| Year | 2018 |
| Condition | Used |
| Stock Number | 119164 |

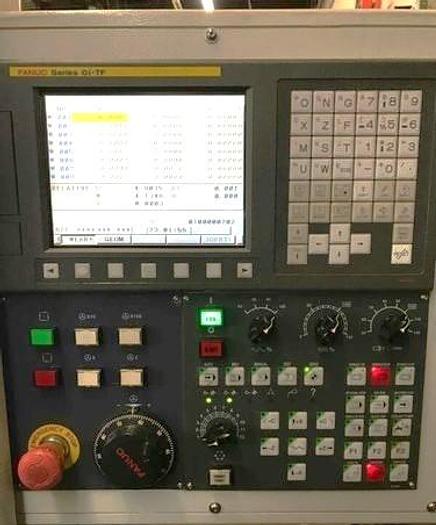

| Control | Fanuc 0i-TF |
| Maximum Swing over Bed | 19.69" |
| Maximum Machining Diameter | 3.94" |
| Maximum Machining Length | 3.94" |
| Maximum Bar Capacity | 1.25" |
| X-Axis Travel | 9.062" |
| Z-Axis Travel | 7.88" |
| C Axis Spindle Rotation | .001 Degree |
| Spindle Speeds | 50 - 6,000 RPM |
| Spindle Motor | 5 HP |
| Number of Tools - Turret | 8 Station Turret |
| Number of ER-16 OD Tools | 4 Live Stations |
| Number of ER-16 ID Tools | 2 Live Stations |
| Milling Spindle Motor | 1 HP - Both ID & OD |
| Rapid Traverse Rates | 591 IPM |
| Machine Dimensions | 73" x 60" x 67" |
| Machine Weight | 4,000 lbs. |
