2011 Haas VF-2SS
No longer available
2011 Haas VF-2SS
Location:California
Description
4th Axis Drive & Wiring

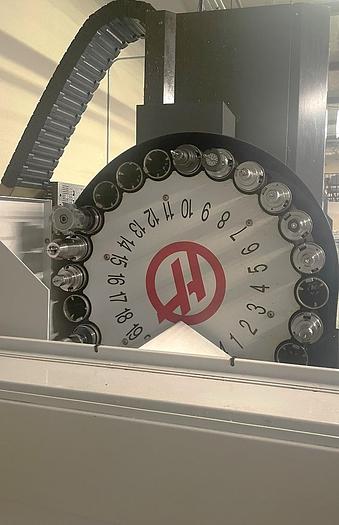

24+1 Position Side Mounted Tool Changer
Auger Style Chip Conveyor
High Speed Machining
Programmable Coolant Nozzle
Automatic Air Gun
Rigid Tapping (Synchronous/Solid Tapping)
Coolant System with Tank & Pump
USB Port Interface
RS 232C Port Interface
Wired 195-260V Electrics
All Available Manuals
**Vises in photos are NOT included**
Specifications
| Manufacturer | Haas |
| Model | VF-2SS |
| Year | 2011 |
| Condition | Used |
| Stock Number | 119160 |
| Table Size | 36" x 14" |
| Maximum Table Load | 1,500 lbs. |
| Spindle Nose to Table Top | 4" - 24" |
| X Axis Travel | 30" |
| Y Axis Travel | 16" |
| Z Axis Travel | 20" |
| Spindle Taper | CAT 40 |
| Spindle Speeds | 12,000 RPM |
| Spindle Motor | 30 HP - Direct Drive |
| Number of Tool Positions | 24 Station Side Mounted ATC |
| Rapid Traverse Rates (X, Y, Z) | 1400 IPM |
| Cutting Feedrates | 0.1 - 833 IPM |
| Machine Dimensions | 88" x 93" x 106" |
| Machine Weight | 9,000 lbs. |
