2021 Southwestern Industries Trak 20P-M10
No longer available
2021 Southwestern Industries Trak 20P-M10
$29,500 (USD)
Location:California
Description
Indexer Compatible
8 Station Tool Changer
Minimal Floor Space
Integrated Jergens Ball Lock System
Conversational Programming
G Code Compatible
3 Axis Simultaneous
Electronic Handwheel
Automatic Fixture Offsets
USB Port Interface
RS 232 Port Interface

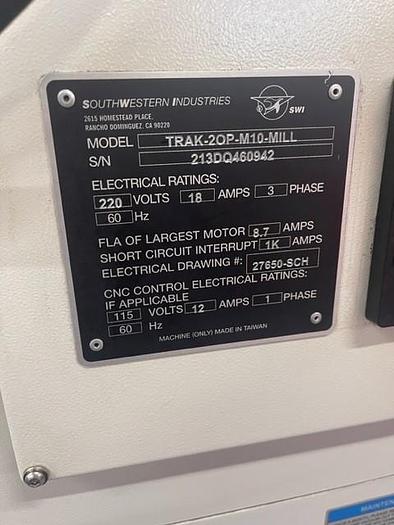

Wired 220V / 3 Phase
All Available Manuals
Specifications
| Manufacturer | Southwestern Industries Trak |
| Model | 20P-M10 |
| Year | 2021 |
| Condition | Used |
| Stock Number | 119155 |

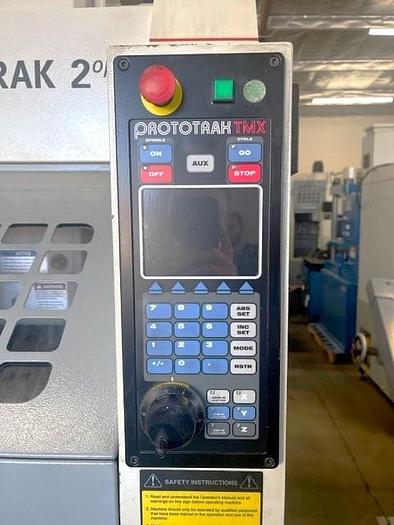

| Machine Control | ProtoTrak TMX Control |
| Table Size | 18" x 15" |
| Maximum Table Load | 500 lbs |
| X-axis travel | 14" |
| Y-Axis Travel | 12" |
| Z-Axis Travel | 17" |
| Spindle Speed | 5,000 RPM |
| Spindle Taper | BT #30 |
| Spindle Motor | 3 HP |
| Distance Spindle Nose to Table Top | 2.75" - 20.25" |
| Tool Magazine Capacity | 8 Station Tool Changer |
| Rapid Traverse Rates X, Y / Z | 600 IPM / 600 IPM |
| Minimum Height to Fit Through Doorway | 92" |
| Machine Dimensions LxWxH | 30.5" x 52" x 101" |
| Machine Weight | 3,175 lbs. |
