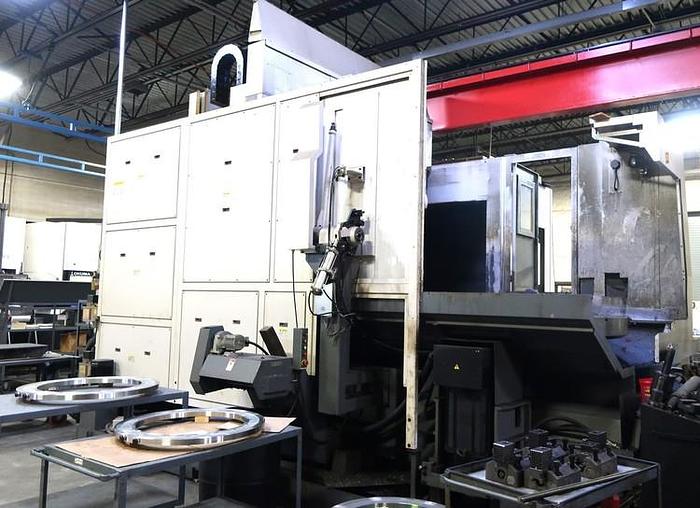

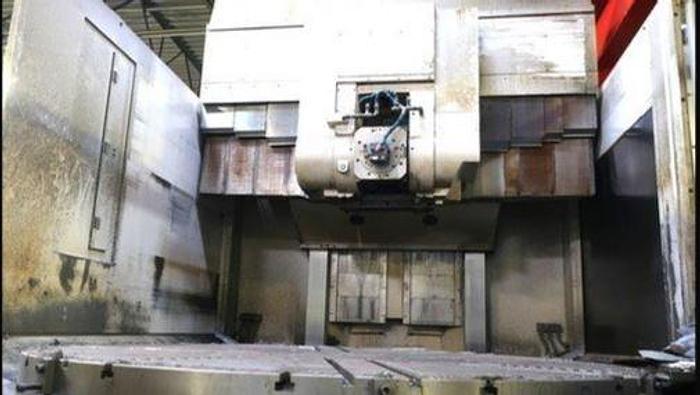

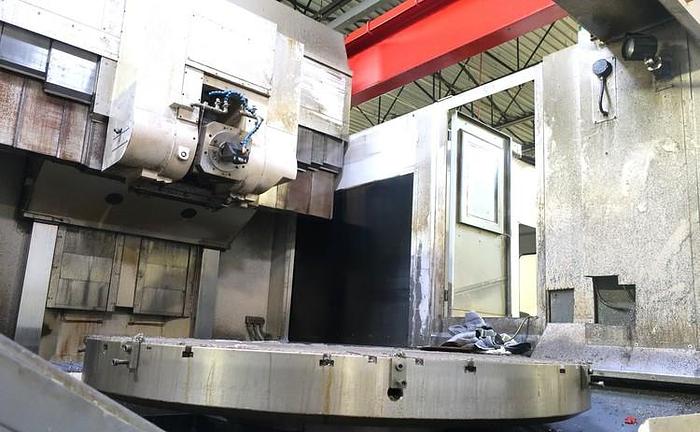

2011 Okuma VTM-200YB
![Used 2011 Okuma VTM-200YB](https://i.machineryhost.com/a5771bce93e200c36f7cd9dfd0e5deaa/291f83da9a149fe63d732114cba33132/large-used-2011-okuma-vtm-200-yb.jpg)
No longer available
2011 Okuma VTM-200YB
Location:Indiana
Description
C-Axis Table Positioning

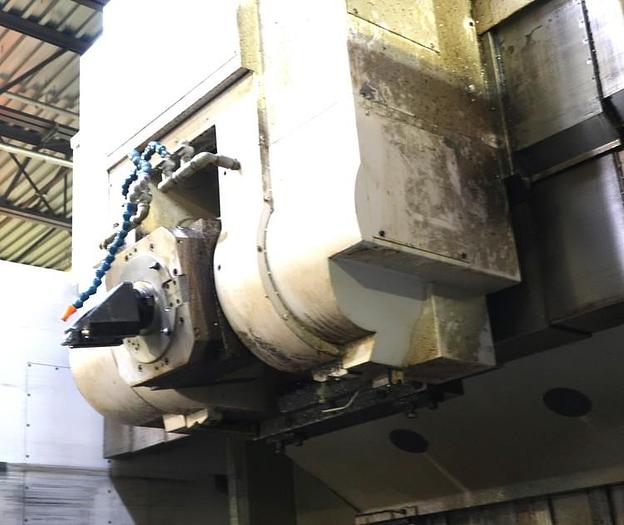

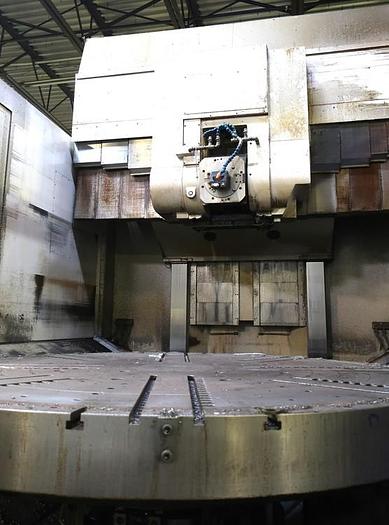

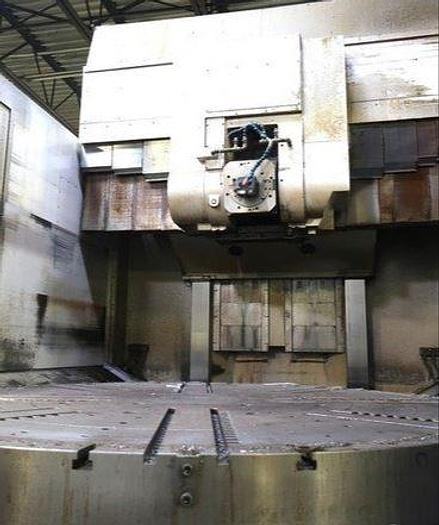

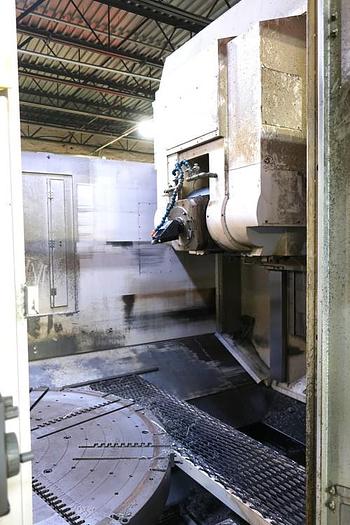

Tilting Horizontal/Vertical Spindle Head w/Live Tooling
Chip Conveyor
(30) BT50 Tool Holders

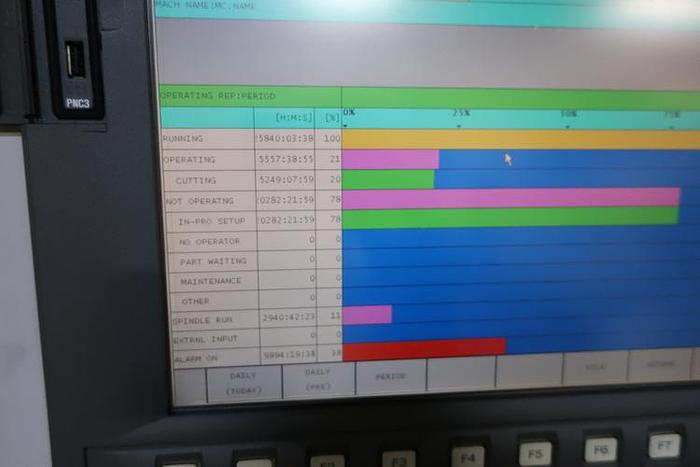

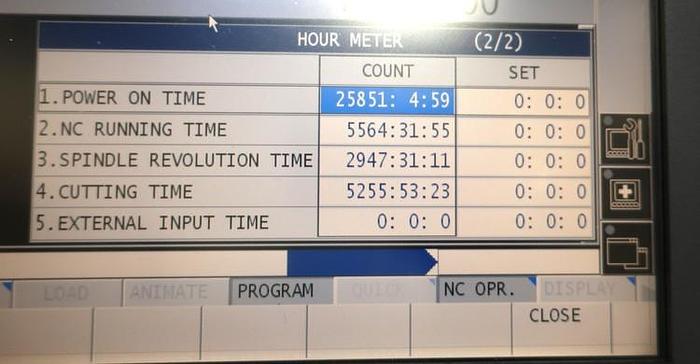

**5,255 Cutting Hours**
**From an Aerospace Facility**
Specifications
Manufacturer | Okuma |
Model | VTM-200YB |
Year | 2011 |
Condition | Used |
Stock Number | 119151 |

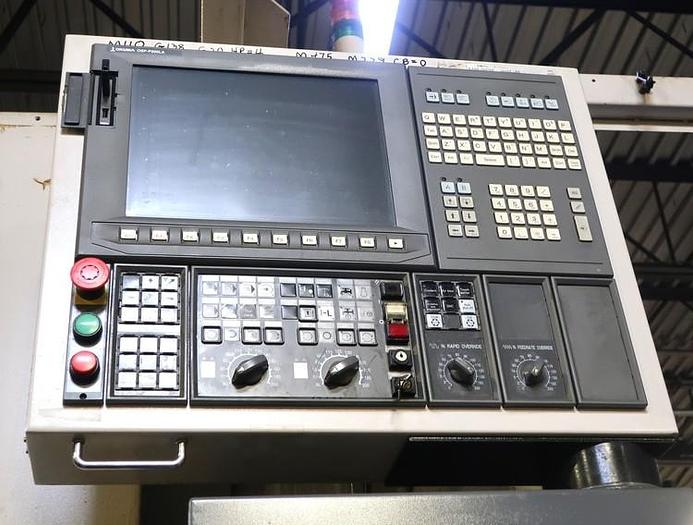

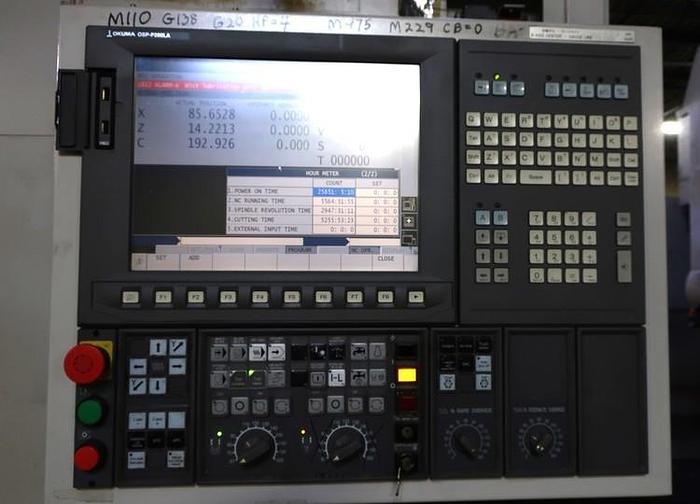

Machine Control | OSP P-200L |

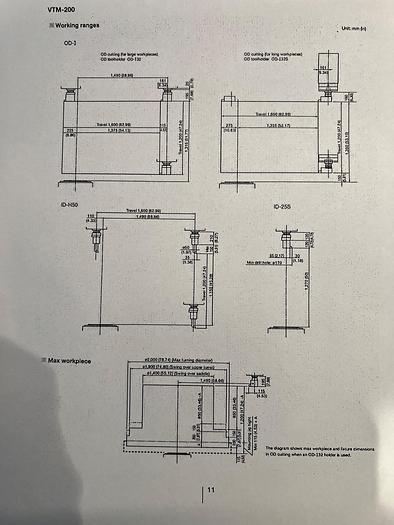

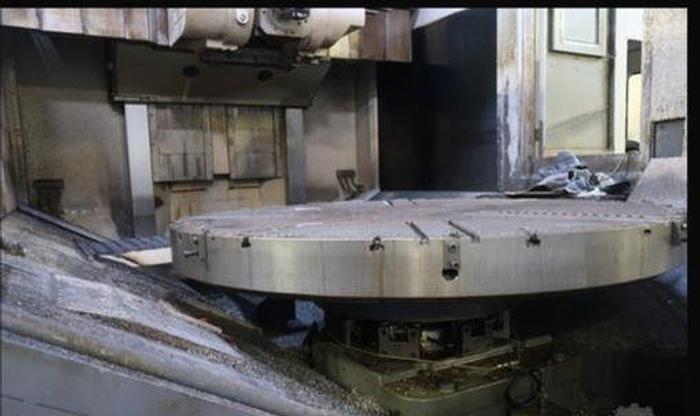

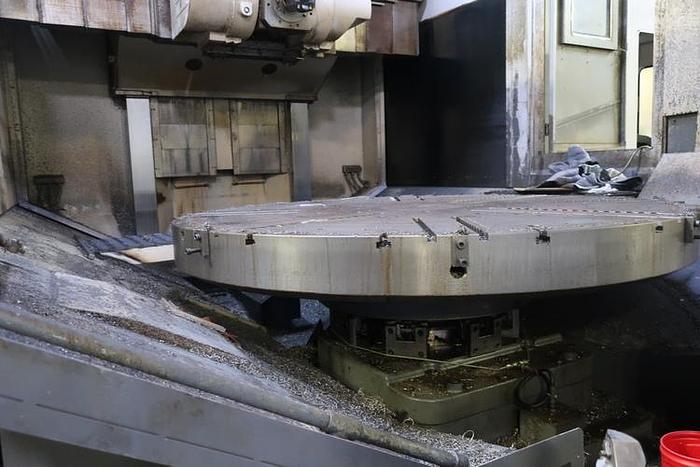

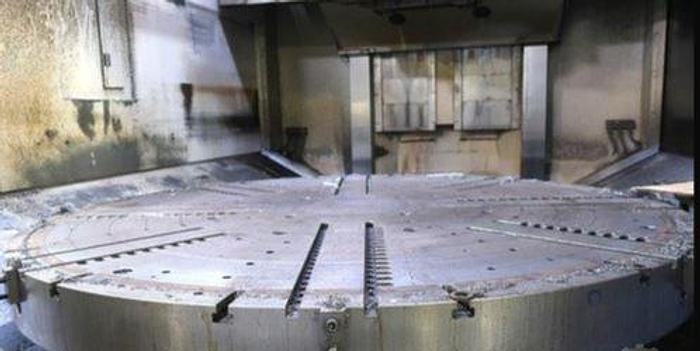

Table Diameter | 78.74" |
Maximum Table Load | 15,400 lbs |
Maximum Turning Diameter | 94.49" |
Maximum Turning Height | 47.24" |
X-Axis Travel | 62.99" |
Z-Axis Travel | 47.24" |
B-Axis Tilt Movement | Horizontal to Vertical |
C-Axis Rotation | 360 Degrees in .001 movement |
Spindle taper | BT50 Big Plus |
Table Speed | 5 - 200 RPM |
Table Motor | 44 HP |
Milling Spindle Speed | 20 - 4,500 RPM |
Milling Spindle Motor | 20 HP 2-Ranges |
Tool Magazine Capacity | 36 Station Tool Changer |
Maximum Tool Diameter / Length / Weight | 6.7"/19.7"/66 lbs |

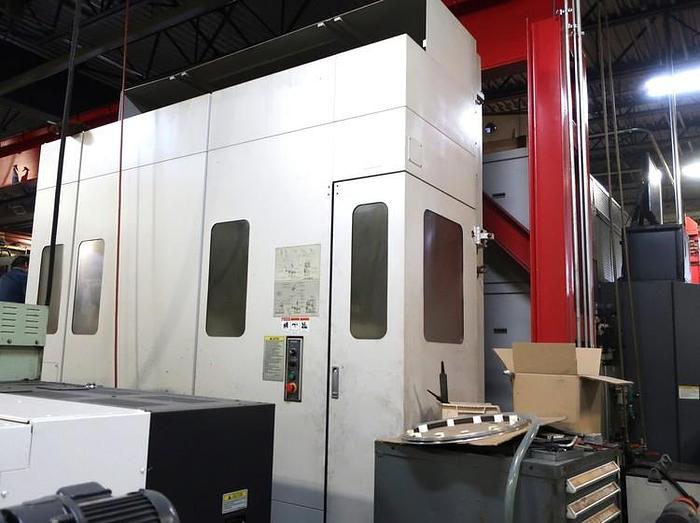

Machine Dimensions LxWxH | 219" x 209" x 182" |
Machine weight (approximately) | 68,000 lbs |
