1999 Fadal VMC6030HT
1999 Fadal VMC6030HT
$32,500 (USD)
Location:Illinois
or
Call (863) 439-6066
Description
5th Axis Prewired
10,000 RPM Spindle
Rigid Tapping
Boxed Ways
High Torque Spindle Motor 2 Speed Spindle Drive RS 232 Port Interface
Coolant System with Tank & Pump
Wired 460V Electrics
Specifications
| Manufacturer | Fadal |
| Model | VMC6030HT |
| Year | 1999 |
| Condition | Used |
| Stock Number | 119148 |

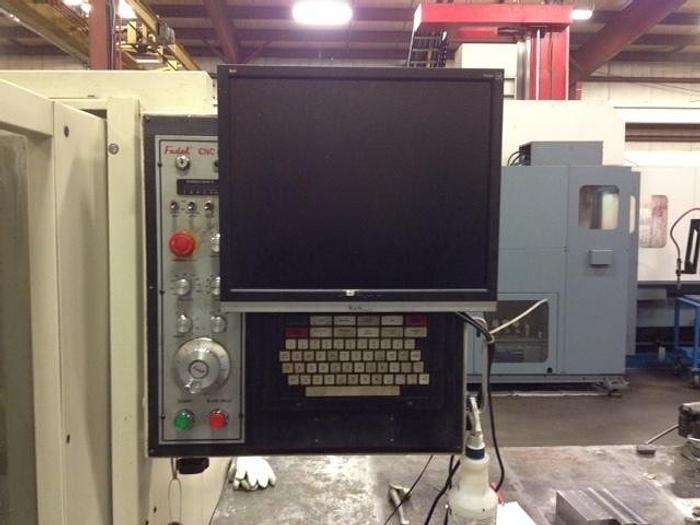

| Control | Fadal CNC88HS Control |
| Table Size | 62" x 30" |
| Maximum Table Load | 4,120 lbs. |
| Distance Spindle Nose to Table Top | 5.5" - 35.5" |
| X-Axis Travel | 60" |
| Y-Axis Travel | 30" |
| Z-Axis Travel | 28" |
| Spindle Taper | CAT 40 |
| Spindle Speeds | 10,000 rpm |
| Spindle Motor | 22.5 HP |

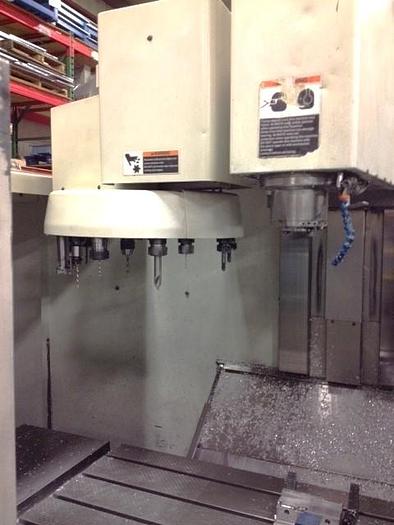

| Tool Magazine Capacity | 24 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 4.5" / 15" / 15 lbs |
| Rapid Traverse Rates (X, Y, Z) | 400 IPM |
| Machine Dimensions LxWxH | 158" x 103" x 119" |
| Machine Weight | 17,500 lbs. |
