2019 Hurco TM-10i
No longer available
2019 Hurco TM-10i
$69,950 (USD)
Location:Ohio
Description

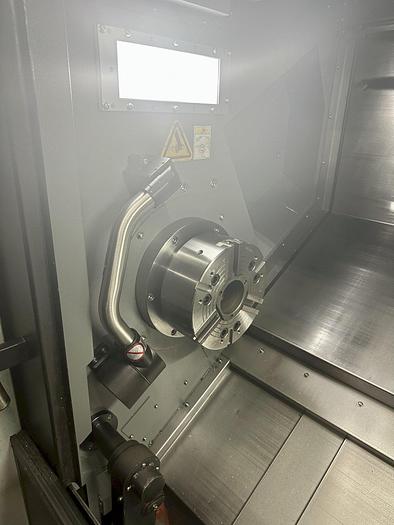

10" 3 Jaw Hydraulic Chuck
Parts Cather
Chip Conveyor
Tool Presetter

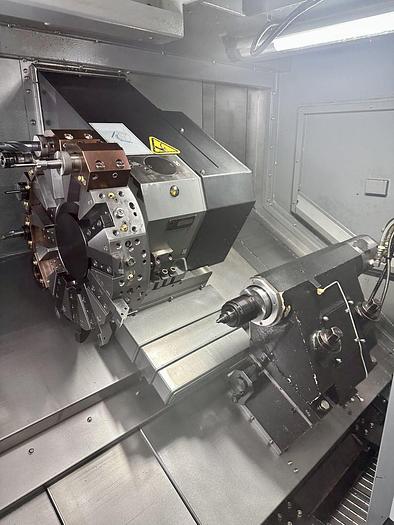

Tailstock
Hurco Lathe Max Classic Package
Rigid Tapping
Conversational Programming
Some Tool Holders
Hand Held Pendant
All Available Manuals
**ONLY 2,620 Spindle Hours of Use**
Specifications
| Manufacturer | Hurco |
| Model | TM-10i |
| Year | 2019 |
| Condition | Used |
| Stock Number | 119147 |

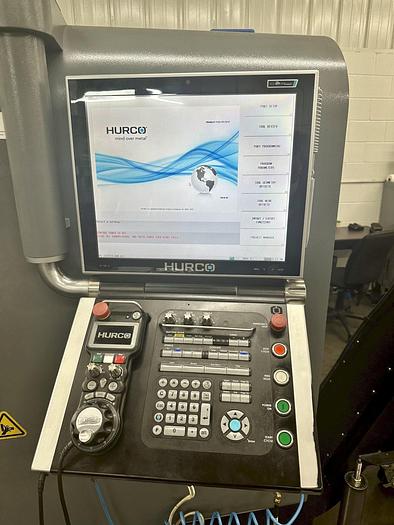

| Machine Control | Hurco WinMax 8 Control |
| Chuck Size | 10" 3-Jaw Hydraulic |
| Maximum Swing over Bed | 22.9" |
| Maximum Cutting Diameter | 17.7" |
| Distance Between Centers | 28.9" |
| X-axis travel | 9.8" |
| Z-Axis Travel | 31.1" |
| Spindle Nose / Bore / Bar Capacity | A2-8" / 3.15" / 2.75" |
| Spindle Motor | 29.5 HP |
| Spindle Speed | 3,000 RPM |

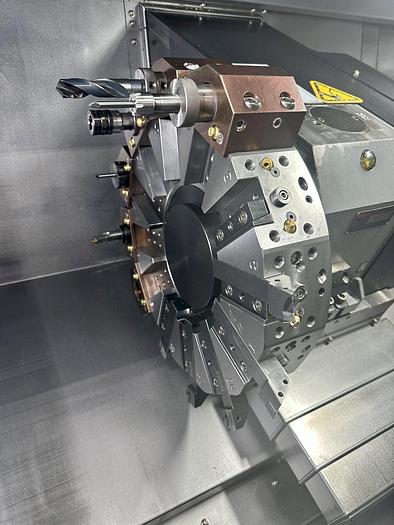

| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates | 1181 IPM |
| Machine Dimensions LxWxH | 191.2" x 112.4" x 89.3" |
| Machine Weight | 11,054 lbs. |
