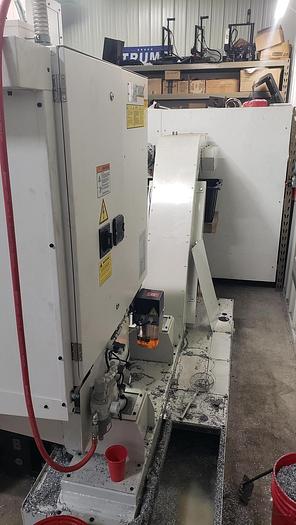

2018 Fanuc Robodrill Alpha-D21MiB5
No longer available
2018 Fanuc Robodrill Alpha-D21MiB5
$69,500 (USD)
Location:California
Description

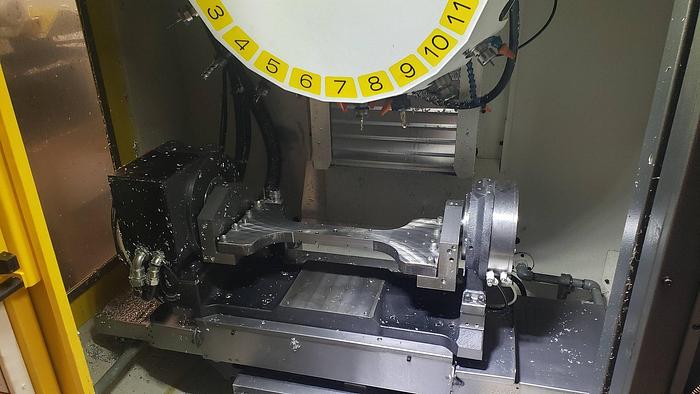

Fanuc DDR-TiB 4th Axis Trunnion Style Rotary Table
10" Color Display w/Intuitive iHMI Screen
Drive & Wiring for 4th 24,000 RPM Spindle 21 Station Tool Changer USB Port Interface
RS 232 Port Interface
Chip / Coolant Pan with Pump
Spindle Orientation
Custom Macro
Coordinate System Rotation
Chip Conveyor All Available Manuals
Specifications
| Manufacturer | Fanuc |
| Model | Robodrill Alpha-D21MiB5 |
| Year | 2018 |
| Condition | Used |
| Stock Number | 119145 |
| Control | Fanuc 31i-B5 Control |
| Table Size | 25.61" x 15.76" |
| Maximum Table Load | 660 lbs. |
| X-Axis Travel | 19.7" |
| Y-Axis Travel | 15.76" |
| Z-Axis Travel | 13" |
| Spindle Taper | BT #30 |
| Spindle Speed | 24,000 RPM |
| Spindle Motor 1 Minute / Continuous | 35 HP / 7.5 HP |
| Distance Spindle Nose to Table Top | 9.85" - 22.85" |
| Number of Tool Positions | 21 Station Tool Changer |
| Rapid Traverse Rates | 2,152 IPM |
| Cutting Feedrates | 1181 IPM |
| Machine Dimensions | 75" x 62" x 93.85" |
| Machine Weight | 4,840 lbs. |
