2003 Fadal VMC5020A HT
No longer available
2003 Fadal VMC5020A HT
Location:New Jersey
Description
Linear Guide Rails on X and Y Axis
Boxed Ways on Z Axis
20 Station Umbrella Style Tool Changer

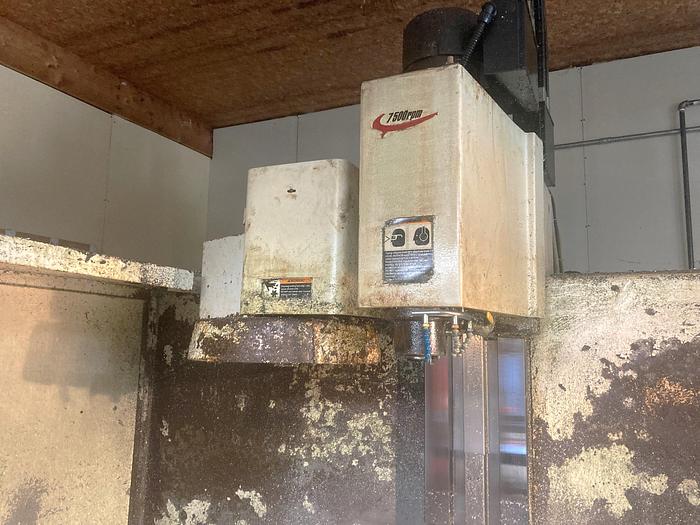

2 Speed Spindle Drive High Torque 22.5 HP Spindle Rigid Tapping RS 232 Port Interface

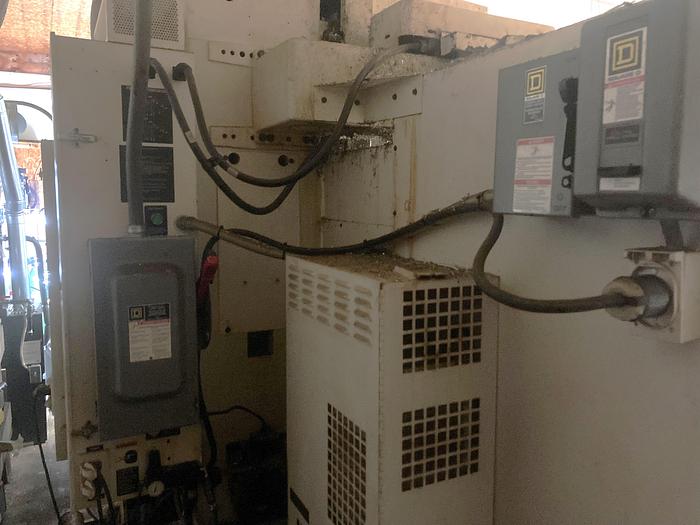

Wired 220V Electrics
Specifications
| Manufacturer | Fadal |
| Model | VMC5020A HT |
| Year | 2003 |
| Condition | Refurbished |
| Stock Number | 119139 |

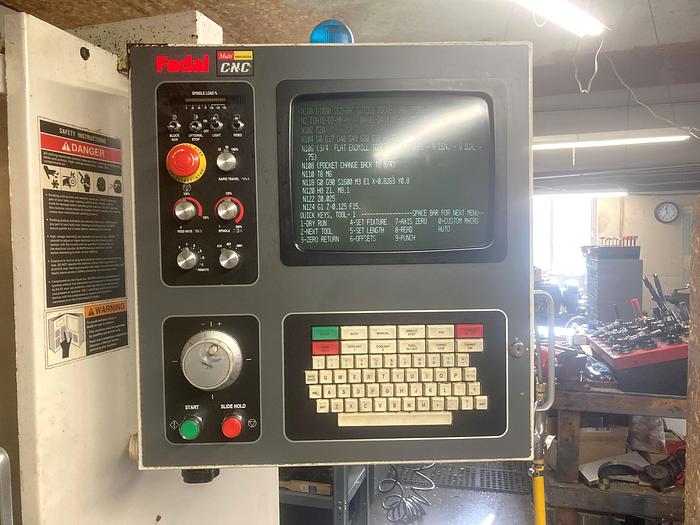

| Control | Fadal Multi Processor CNC Control |

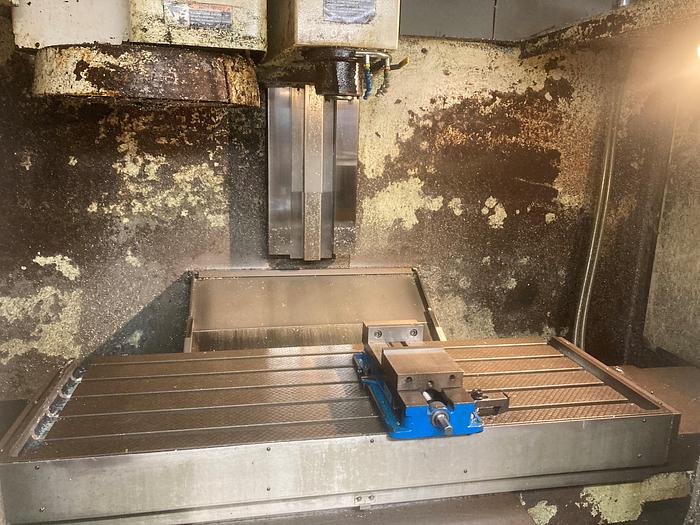

| Table Size | 57" x 20" |
| Maximum Table Load | 3,000 lbs |
| X-Axis Travel | 50" |
| Y-Axis Travel | 20" |
| Z-Axis Travel | 20" |
| Spindle Taper | CAT 40 |
| Spindle Speeds | 10 - 7,500 RPM |
| Spindle Motor | 22.5 HP |
| Spindle Torque | 120 ft. lbs |
| Tool Magazine Capacity | 21 Station Umbrella ATC |
| Maximum Tool Diameter / Length / Weight | 4.5" / 15" / 15 lbs |
| Rapid Traverse Rates (X, Y, Z) | 900 ipm, 900 ipm, 700 ipm |
| Machine Dimensions LxWxH | 116"x87"x104" |
| Machine Weight | 11,500 lbs |
