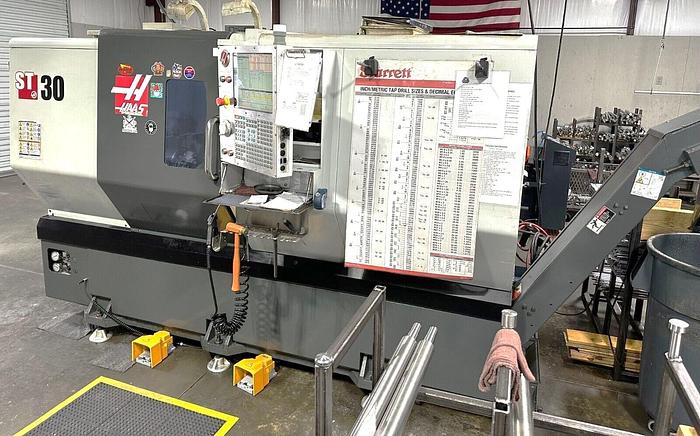

2014 Haas ST-30
No longer available
2014 Haas ST-30
$39,500 (USD)
Location:Georgia
Description
Programmable Tailstock

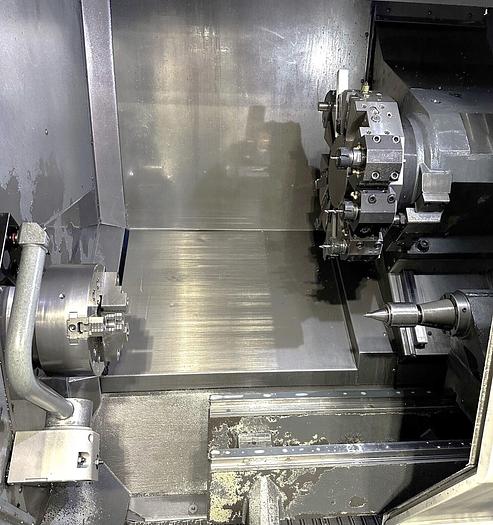

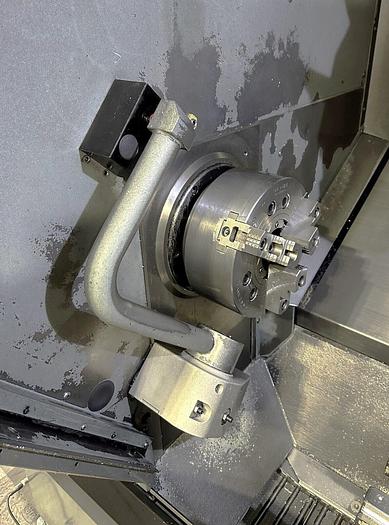

10" 3 Jaw Hydraulic Chuck
Chip Conveyor
Tool Presetter
Rigid Tapping
USB Port Interface
RS 232 Port Interface
High Intensity Lighting
All Available Tool Blocks
Coolant System with Tank & Pump
Assorted Tool Holders

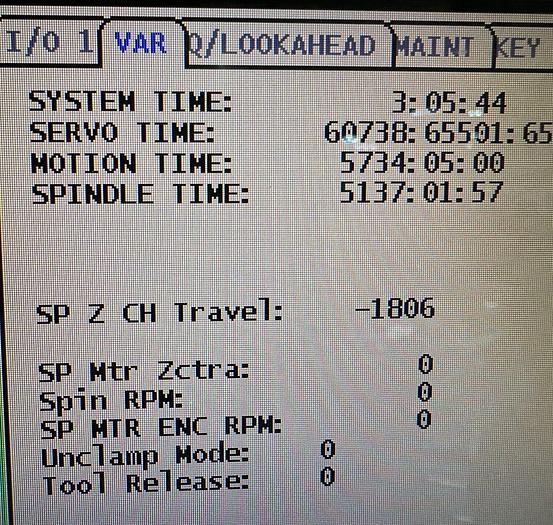

**5,137 Spindle Running Hours**
Specifications
| Manufacturer | Haas |
| Model | ST-30 |
| Year | 2014 |
| Condition | Used |
| Stock Number | 119118 |

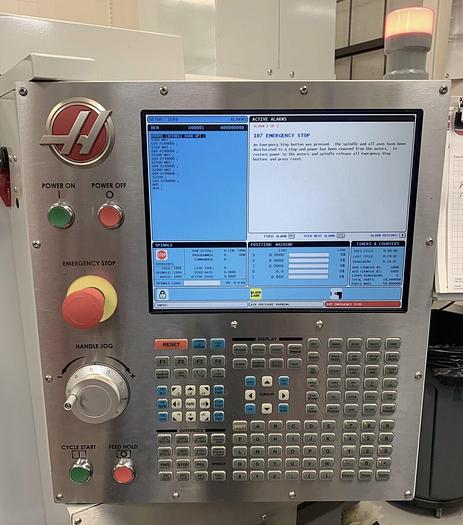

| Machine Control | Haas CNC Control |
| Maximum Swing | 31.75" |
| Maximum Turning Diameter | 18" |
| Maximum Machining Length | 23" |
| Maximum Bar Capacity | 3" |
| X-Axis Travel | 12.5" |
| Z-Axis Travel | 26" |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 3.5" / 3" |
| Spindle Speeds | 30 - 3,000 RPM |
| Spindle Motor | 30 HP |

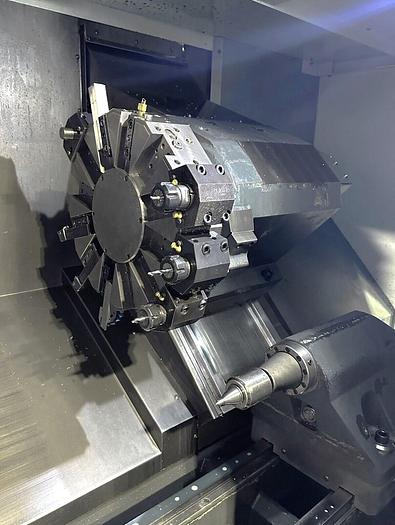

| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates X/Z | 945 ipm / 945 ipm |
| Tailstock Body Travel / Taper | 20" / MT #4 |
| Machine Dimensions | 171" x 90" x 83" |
| Machine Weight | 12,540 lbs. |
