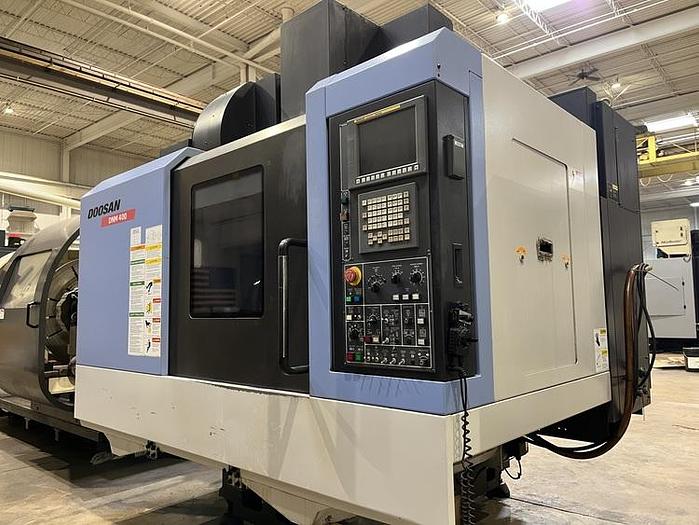

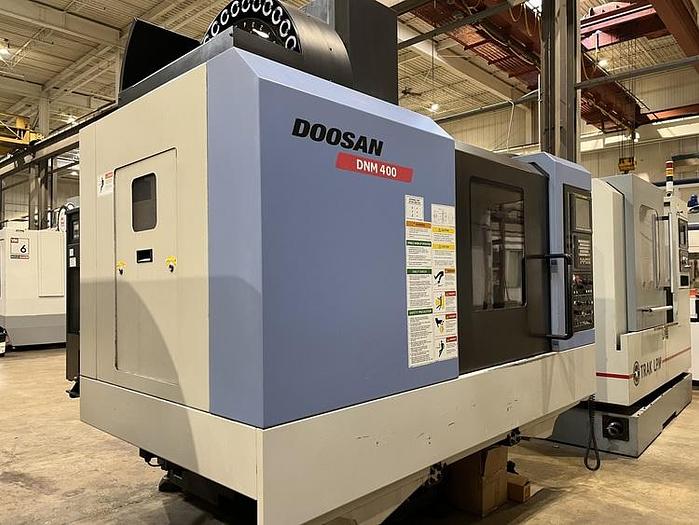

2010 Doosan DNM-400
No longer available
2010 Doosan DNM-400
Location:Illinois
Description
30 atc Bidirectional Tool Changer
PCMCIA Card Slot
USB, RS-232 & Ethernet Connectivity
Spindle Orientation

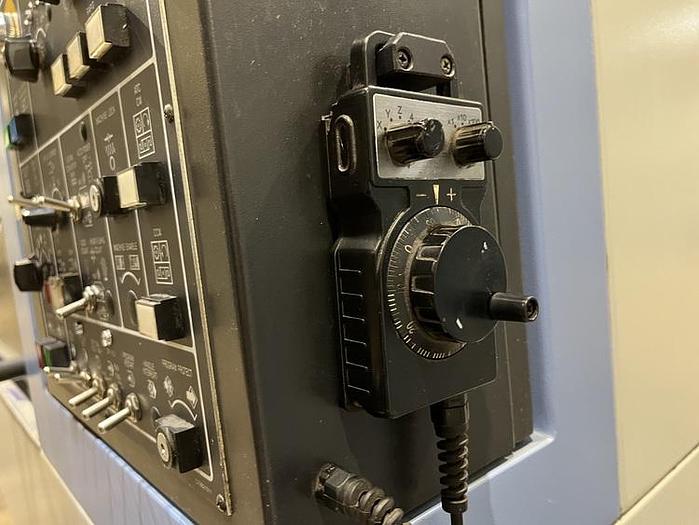

Remote Jog Handle
Rigid Tapping
Helical Interpolation
Work Light
Specifications
| Manufacturer | Doosan |
| Model | DNM-400 |
| Year | 2010 |
| Condition | Used |
| Stock Number | 119117 |
| Table size | 36" x 17.1" |
| Table load capacity | 1,323 lbs |
| X-axis travel | 30" |
| Y-axis travel | 17.1" |
| Z-axis travel | 20.1" |
| Distance Spindle Nose to Table Top | 5.91" to 24.25" |
| Spindle speed | 8,000 RPM |
| Spindle taper | CAT 40 |
| Spindle motor 30 min. / cont. | 20 HP / 15 HP |
| Tool magazine capacity - side mount | 30 ATC |
| Tool change time | 1.5 seconds |
| Cutting feed rates | 595 IPM |
| Rapid traverse rates (x,y/z) | 1417 IPM / 1181 IPM |
| Max. tool diameter/length/weight | 4.9" / 11.8" / 17.6 lbs. |
| Machine Dimensions LxWxH | 132"x101"x110" |
| Machine weight | 12,500 lbs. |
