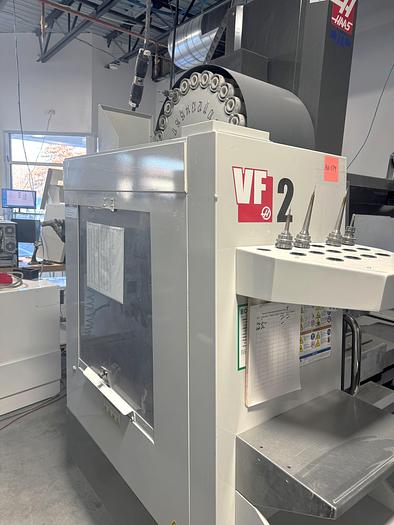

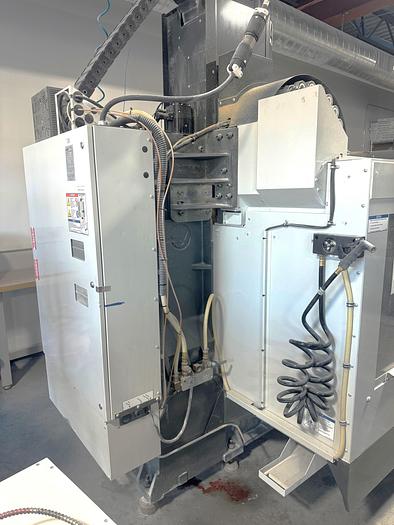

2011 Haas VF2 with TR160 5th Axis Trunnion Table and 30k RPM Spindle

2011 Haas VF2 with TR160 5th Axis Trunnion Table and 30k RPM Spindle

Contact us for price

New York, NY

Description

24 Station Side Mounted Tool Changer

30,000 RPM Spindle Option

BT30 Taper Spindle

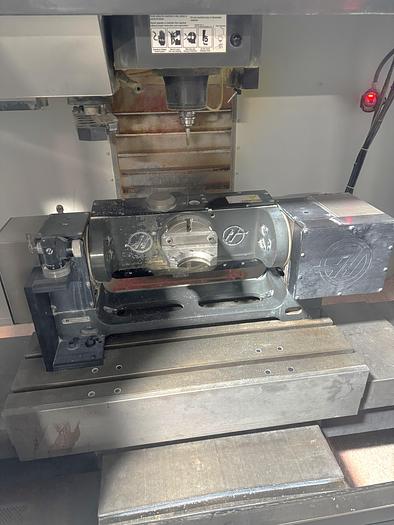

Haas TR160 Trunnion Style Table

4th Axis Drive & Wiring

5th Axis Drive & Wiring

Haas Wireless Probing Package, includes Tool Probe, Spindle Mounted Part Probe is NOT included

Probe Stand for Tool Probe

Coordinate Rotation & Scaling

Spindle Orientation

Auger Style Chip Conveyor w/ Chute (included, but not currently being used on machine)

User Definable Macros

High Speed Machining

Rigid Tapping

16MB Expanded Program Memory

Standard Flood Coolant (not used currently, only being used as a dry machine)

Ethernet Interface/Hard Drive

USB Port Interface

RS 232 Port Interface

Wired 195V/260V Electrics

Complete Coolant System with Tank & Pump (not used currently, only being used as a dry machine)


**Manufactured New in November of 2011**

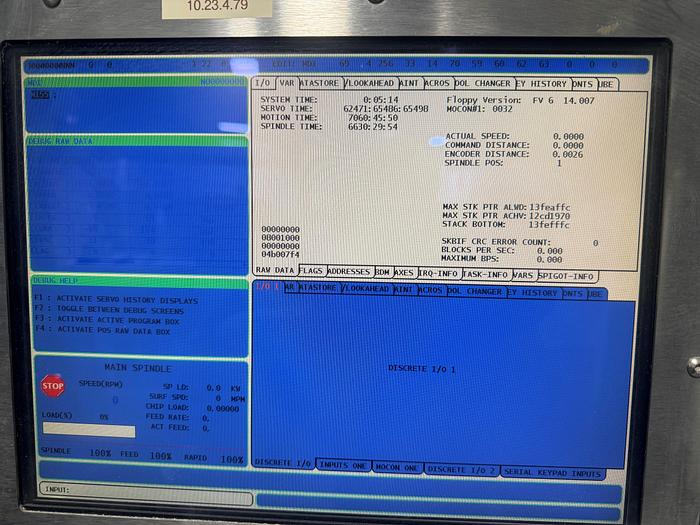

**Motion Hours 7,060**

**Spindle Hours 6,630**


Specifications

ManufacturerHaas
ModelVF2 with TR160 5th Axis Trunnion Table and 30k RPM Spindle
Year2011
ConditionUsed
Stock Number119115
ControlHaas CNC Control
Table Size36" x 14"
Maximum Table Load1,000 lbs
X-Axis Travel30"
Y-Axis Travel16"
Z-Axis Travel20"
Spindle Speed30,000 RPM
Spindle TaperBT 30 Taper
Spindle Motor20 HP
Tool Magazine Capacity24 Station Side Mounted ATC
Rapid Traverse Rates1,000 IPM
Distance Spindle Nose to Table Top4" - 24"
Maximum Tool Diameter / Length / Weight3.5"/ NA / 12 lbs
Machine Dimensions LxWxH88"x92.5"x104"
Machine Weight8,000 lbs
