2022 Haas ST-25
2022 Haas ST-25
Contact us for price
California
orCall (863) 439-6066
Description
15" LCD Color Monitor
Memory Lock Keyswitch
USB Port Interface
RS 232 Port Interface

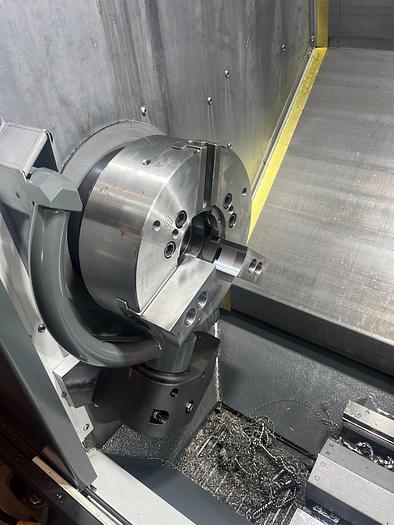

10" 3 Jaw Hydraulic Chuck
Chip Conveyor
Automatic Tool Presetter
Visual Quick Code Programming
Rigid Tapping
High-Intensity Lighting
Programmable Tailstock
55 Gallon Coolant Tank
All Available Tool Blocks
All Available Manuals

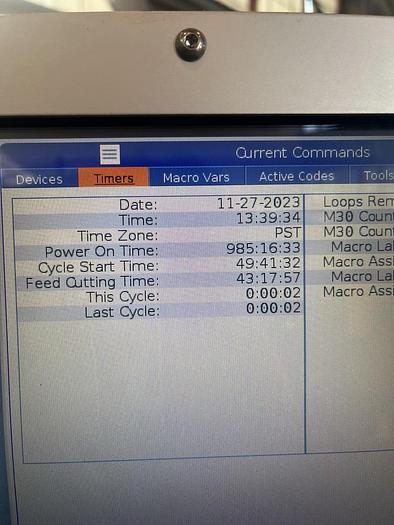

**Under 100 Run Time Hours**
Specifications
| Manufacturer | Haas |
| Model | ST-25 |
| Year | 2022 |
| Condition | Used |
| Stock Number | 119113 |
| Machine Control | Haas NextGen Control |
| Chuck Size | 10" 3-Jaw Hydraulic |
| Maximum Swing | 31.75" |
| Maximum Machining Diameter | 15" |
| Maximum Machining Length | 21" |
| X-Axis Travel | 9.3" |
| Z-Axis Travel | 21" |
| Spindle Nose / Bore / Bar Capacity | A2-6 / 3.5" / 3.0" |
| Spindle Motor | 40 HP |
| Spindle Torque | 300 ft./lbs. |
| Spindle Speeds | 3,400 RPM |
| Number of Turret Positions | 12 Bolt on Style |
| Rapid Traverse Rates | 945 IPM |
| Tailstock Taper | MT #4 |
| Machine Dimensions LxWxH | 140" x 90" x 89" |
| Machine Weight | 12,300 lbs. |
