1995 Dahlih MCV-2600 Heavy Duty 3 Axis Vertical Machining Center
1995 Dahlih MCV-2600 Heavy Duty 3 Axis Vertical Machining Center
$15,950 (USD)
Location:Rhode Island
or
Call (863) 439-6066
Description

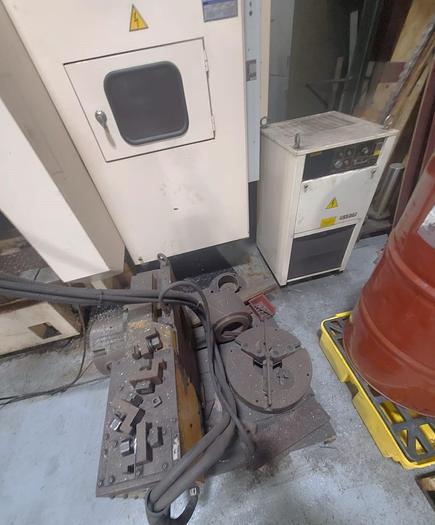

4th Axis Rotary Table

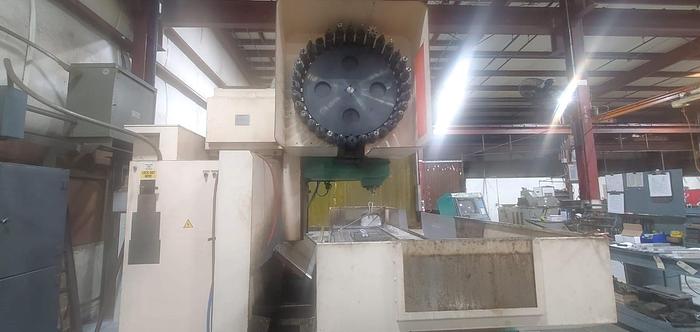

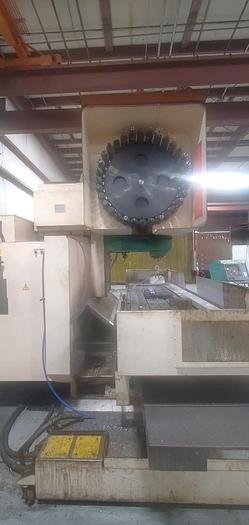

32 Station Side Mounted Tool Changer

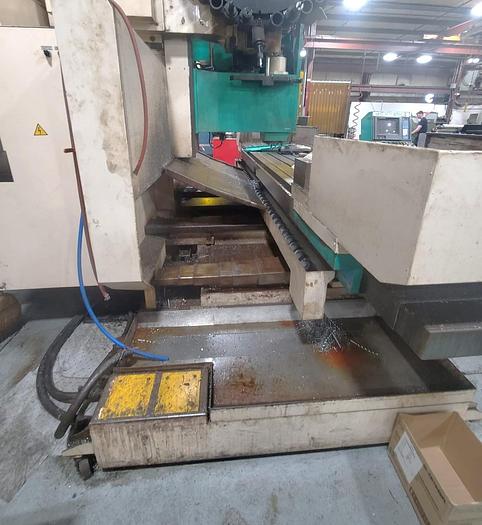

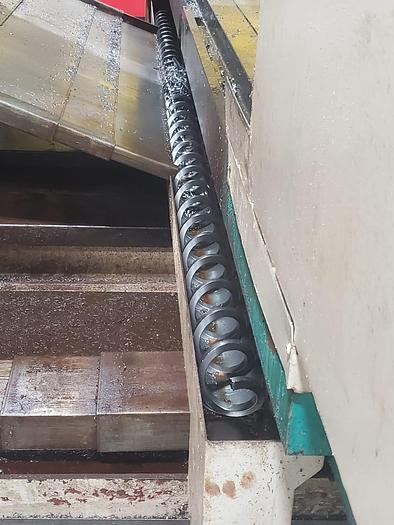

Auger Style Chip Conveyor

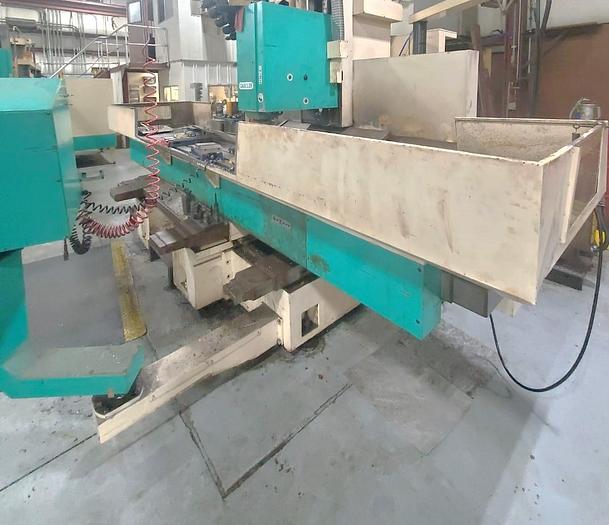

Open Table Design
Flood Coolant
4 Way Boxed Way Construction
Geared Headstock
RS 232 Port Interface

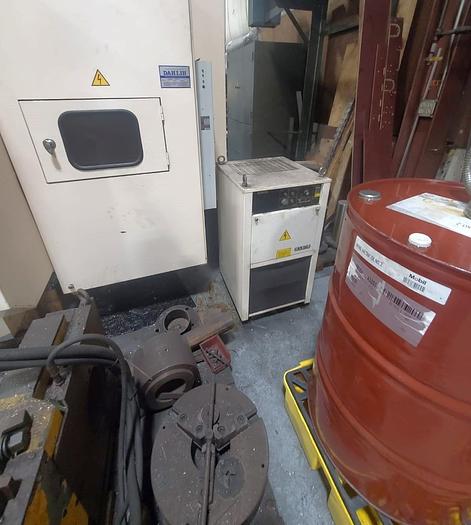

Chiller Unit
Coolant System with Tank & Pump
Specifications
| Manufacturer | Dahlih |
| Model | MCV-2100 Heavy Duty 3 Axis Vertical Machining Center |
| Year | 1995 |
| Condition | Used |
| Stock Number | 119093 |

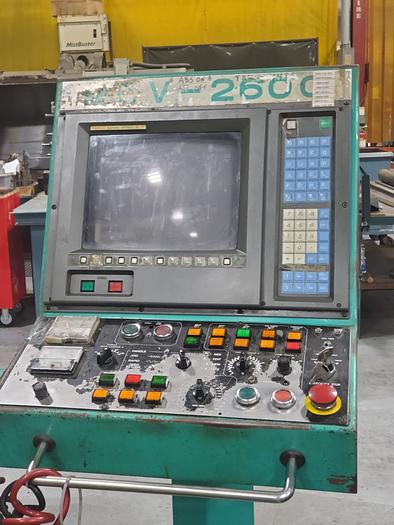

| Control | Fanuc Series 15MEE-B-4 Control |
| Table Size | 90.55" x 38.19" |
| Maximum Table Load | 6,600 lbs. |
| X-Axis Travel | 82.68" |
| Y-Axis Travel | 34.25" |
| Z-Axis Travel | 29.92 |

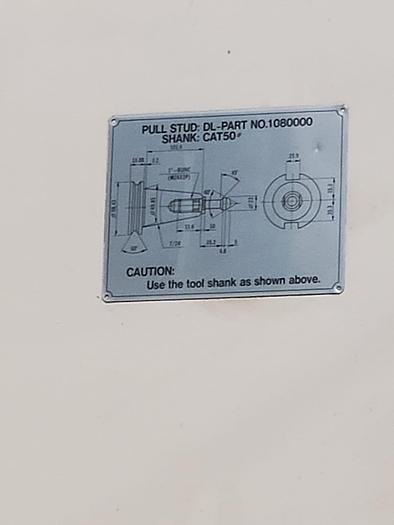

| Spindle Taper | CAT 50 |
| Spindle Speeds | 6,000 RPM |
| Spindle Motor | 30 HP |
| Tool Magazine Capacity | 32 Station Side Mounted ATC |
| Rapid Traverse Rates (X, Y, Z) | 630 IPM |
| Machine Dimensions LxWxH | 250" x 145" x 118" |
| Machine Weight | 39,600 lbs. |
