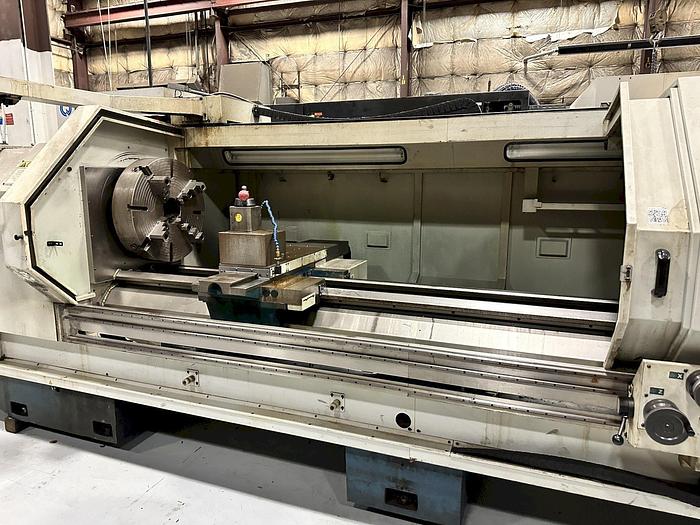

2007 Romi M27 x 120"
2007 Romi M27 x 120"
Contact us for price
Michigan
orCall (863) 439-6066
Description

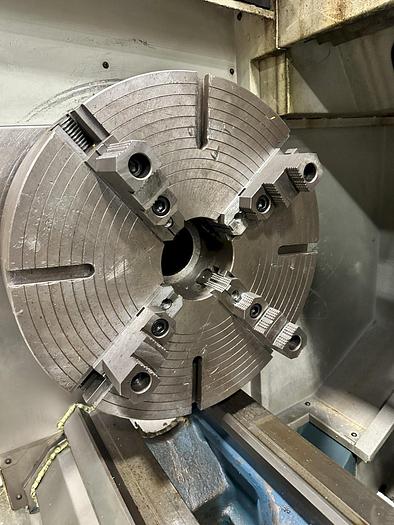

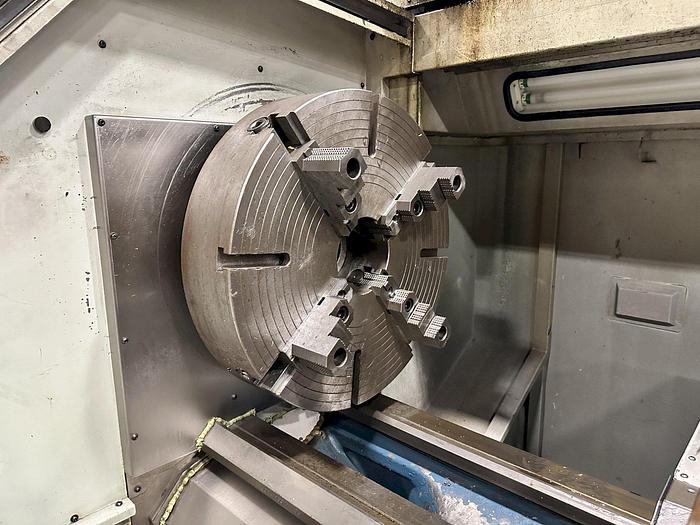

24" 4 Jaw Manual Chuck

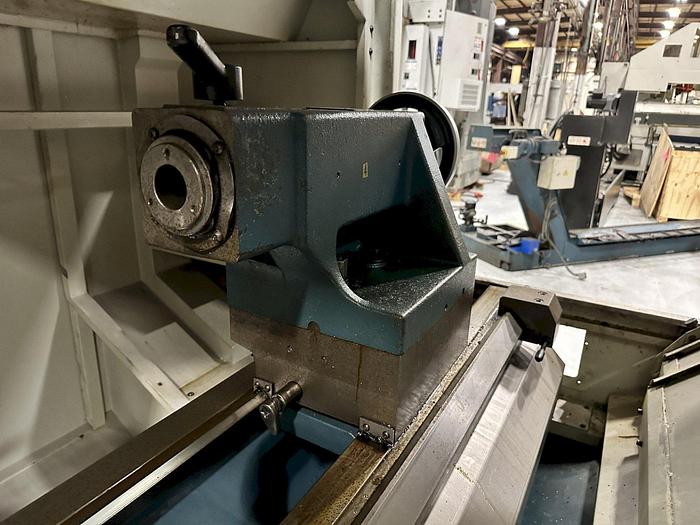

Tailstock

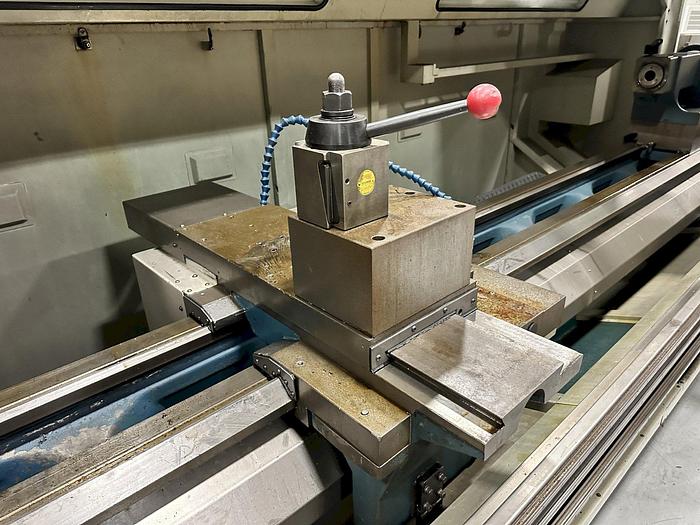

Tool Post
Bar Support
Manual Steady Rests

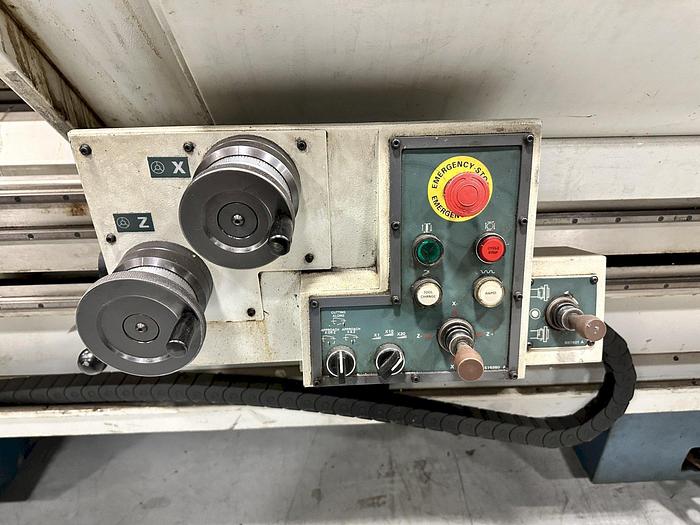

X & Z Electronic Hand Wheels
Chip Conveyor
All Available Manuals
Card Interface
RS 232 Port Interface
Full Enclosure Guarding
Specifications
| Manufacturer | Romi |
| Model | M27 x 120" |
| Year | 2007 |
| Condition | Used |

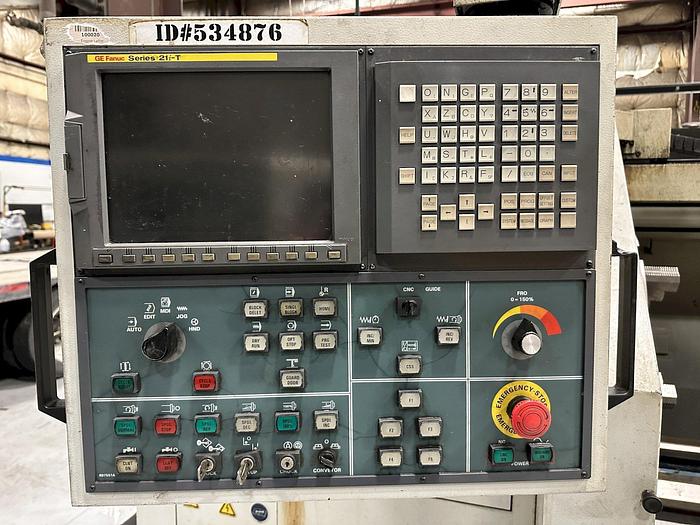

| Machine Control | Fanuc 21i-T |
| Maximum Swing over Bed | 27" |
| Distance Between Centers | 120" |
| Maximum Swing Over Cross Slide | 16.93" |
| X-Axis Travel | 14.17" |
| Z-Axis Travel | 120" |
| Spindle Nose / Spindle Bore | A2-8" / 4.1" |
| Spindle Speeds | 2 - 1,800 RPM |
| Spindle Motor | 30 hp |
| Number of Tool Positions | Quick Change Tool Post |
| Rapid Traverse Rates | 295 IPM |
| Tailstock Quill Diameter / Quill Travel / Taper | 3.94" / 7.08" / #5MT |
| Floor Space Required | 207" x 80" x 80" |
| Machine Weight | 15,430 lbs |
