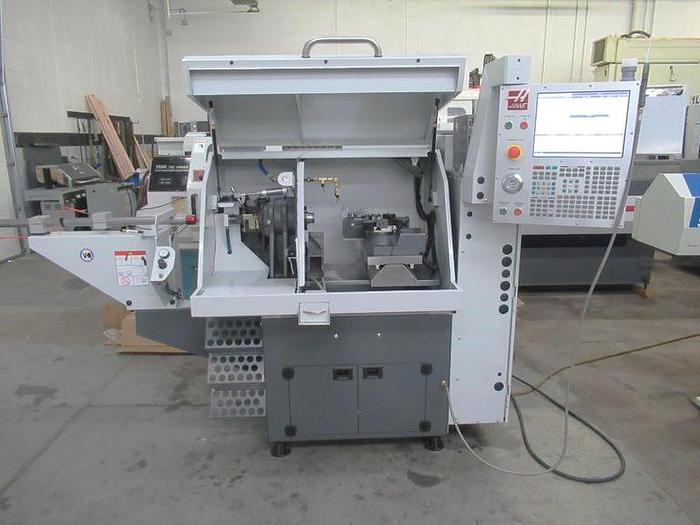

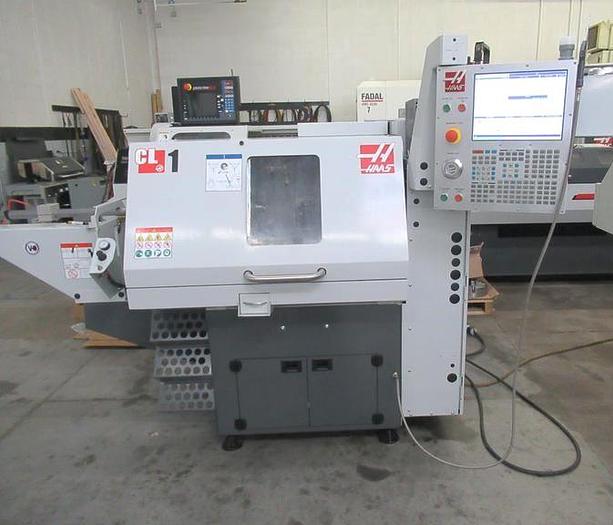

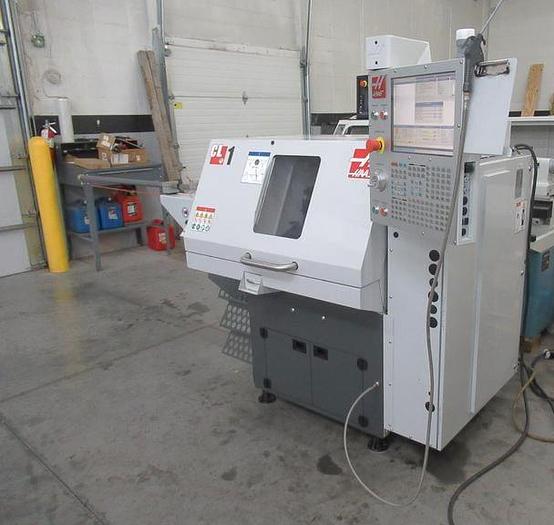

2019 Haas CL-1 w/ Live Tooling
No longer available
2019 Haas CL-1 w/ Live Tooling
$49,950 (USD)
Location:Minnesota
Description
Live Tooling Option with C Axis

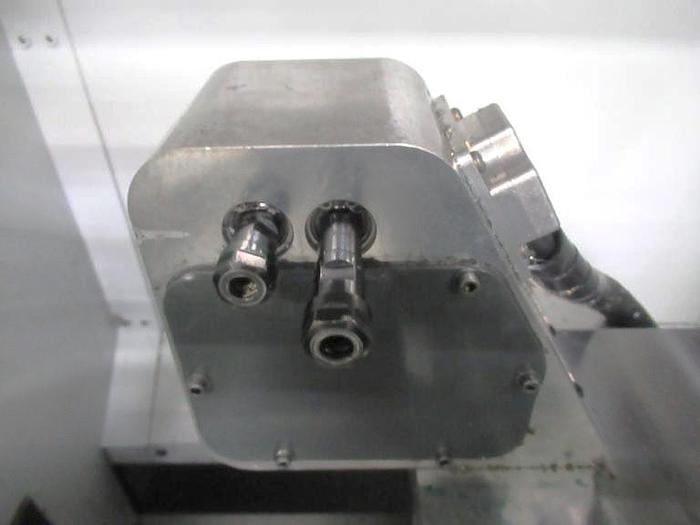

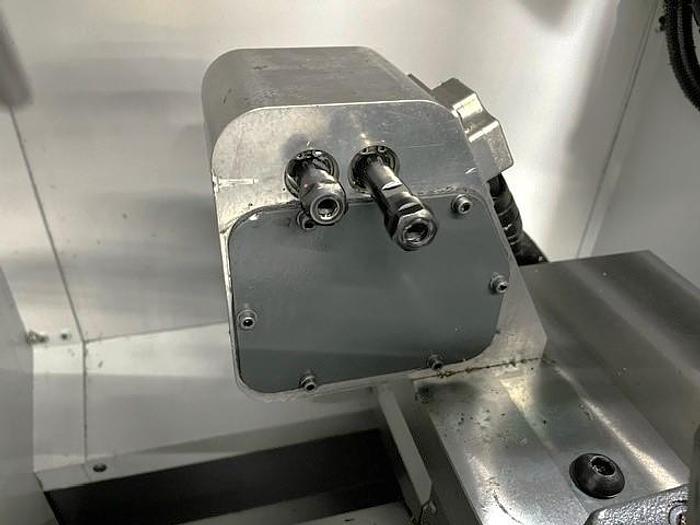

Dual ER-11 Live Milling Spindles

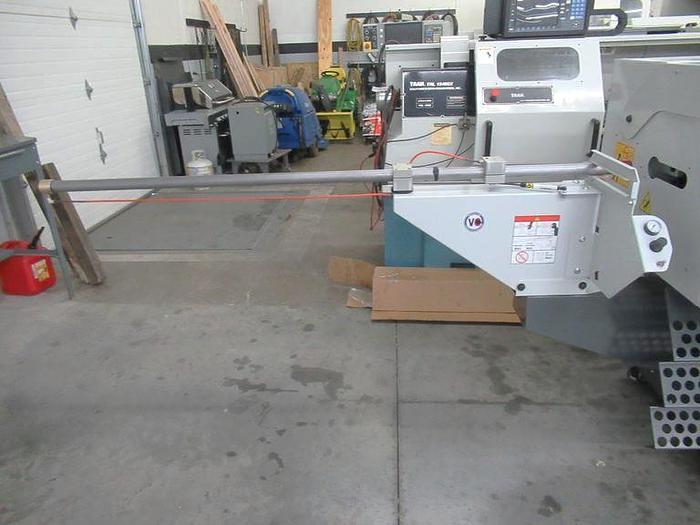

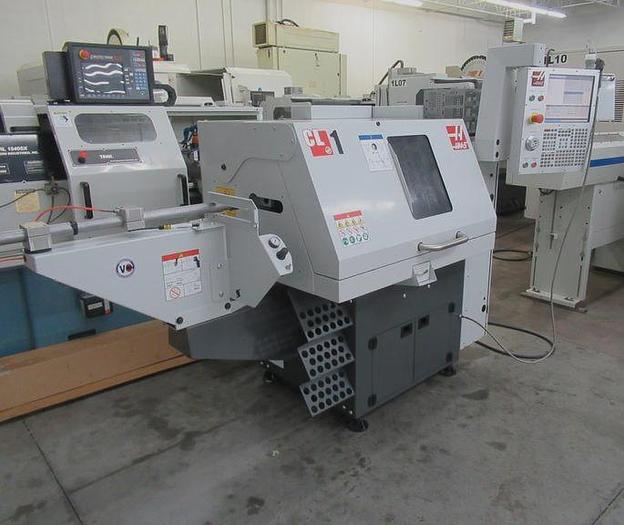

6' Fully Integrated Pneumatic Barfeeder with .25" - 1" Capacity
Parts Catcher
Spindle Orientation

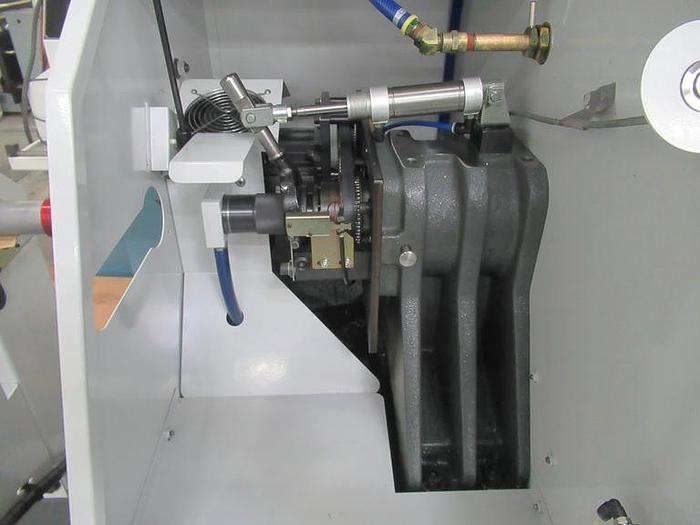

5C Collet Closer
Coolant Pump w/ 13 Gallon Coolant Tank
Rigid Tapping
Visual Programming System

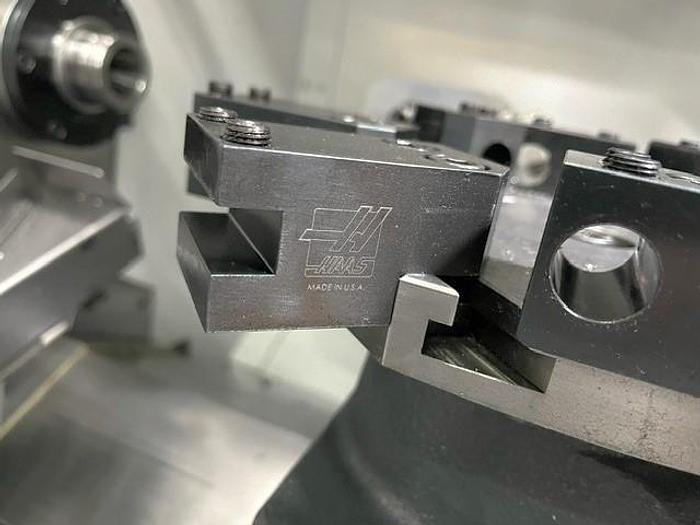

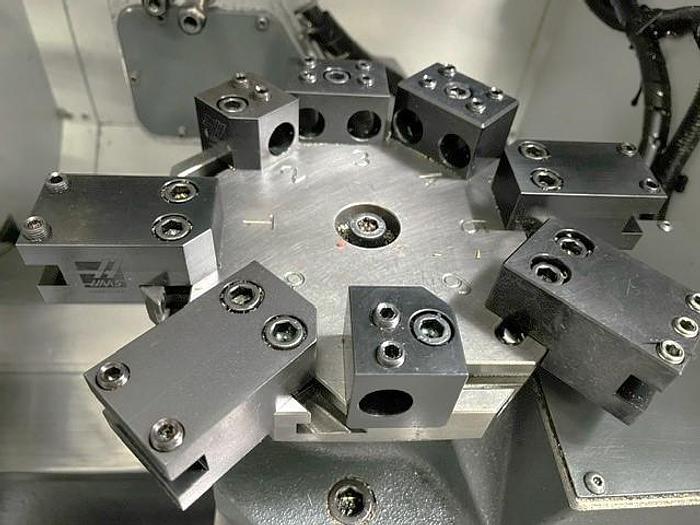

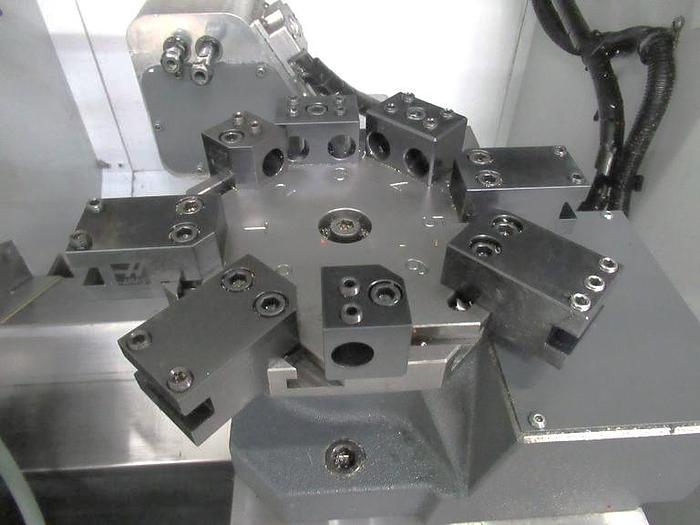

Gang Style Tooling Kit

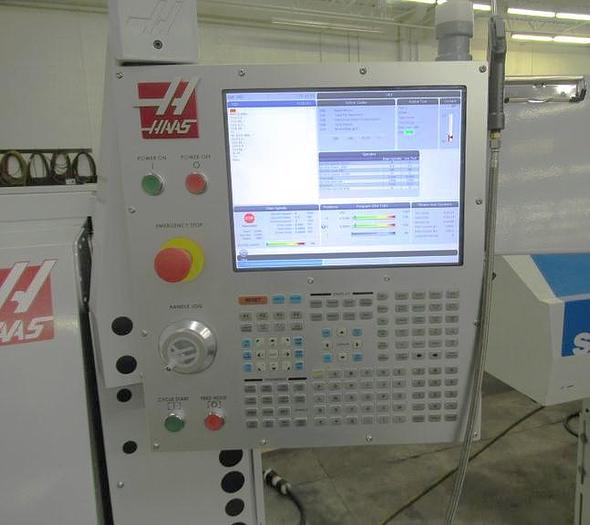

Haas CNC Control with 15" Color LCD Monitor
Ethernet Interface
USB Port Interface
1 GB Program Memory
Memory Lock Key Switch
Haas Drop
Haas Connect: Remote Monitoring
Media Display M-Code M130
Wifi Connection for Haas Control
Early Power Failure Detection Module
**This machine can be wired at either Three Phase or Single Phase Power**

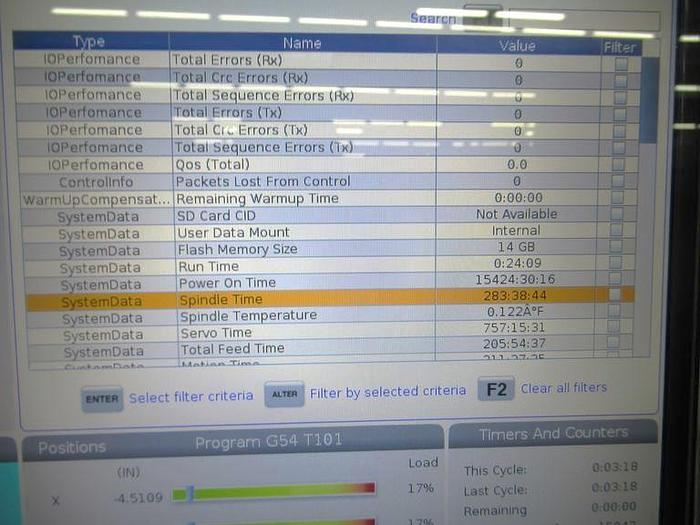

**ONLY 283 SPINDLE RUN HOURS**
**Price New as Equipped: Approximately $63,375
Specifications
| Manufacturer | Haas |
| Model | CL-1 w/ Live Tooling |
| Year | 2019 |
| Condition | Used |
| Stock Number | 119086 |
| Chuck Size | 5C Collet |
| Maximum Swing Over Cross Slide | 11" |
| Maximum Machining Diameter | 5.0" |
| Maximum Machining Length | 8" |
| X-Axis Travel | 12" |
| Z-Axis Travel | 8" |
| C Axis Spindle Rotation | 0.001 Degree |
| Spindle Speed | 6,000 RPM |
| Spindle Nose / Spindle Bore / Bar Capacity | 5C Type / 1.25" / 1" |
| Spindle Motor | 5 HP |

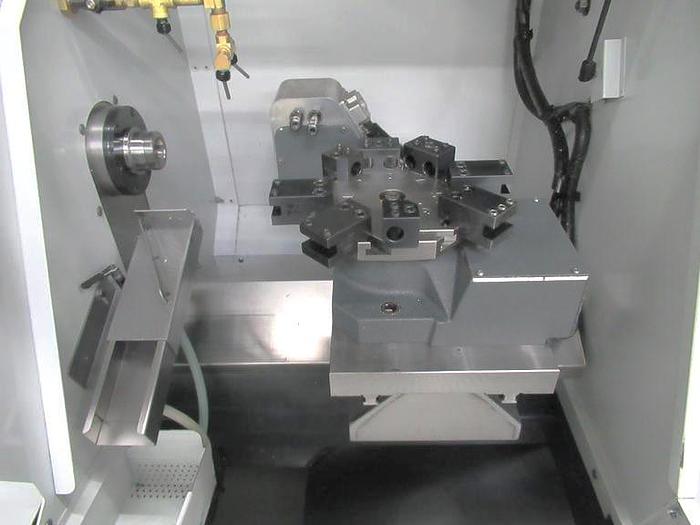

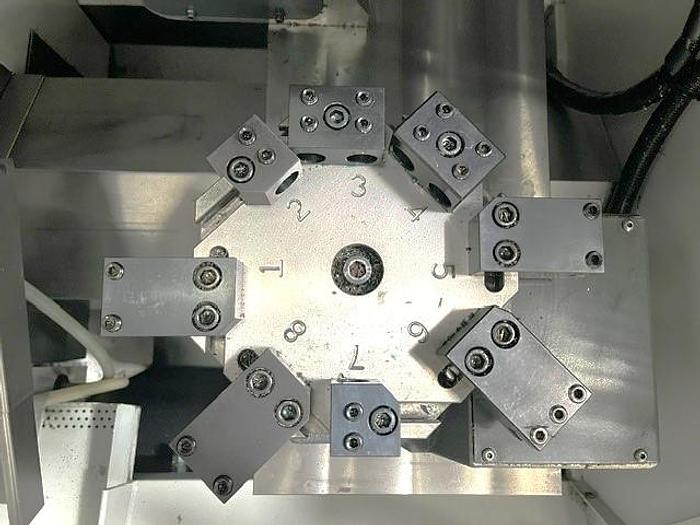

| Turret Type | 8 Position Turret |
| Number of Live Tool Locations | 2 ER-11 Milling Stations |
| Live Tool Motor | 400W Brushless Drive (approx. 1/2 HP) |
| Milling Spindle Speed | 6,000 RPM |
| Rapid Traverse Rates X/Z | 757 IPM |
| Cutting Feedrates | 500 IPM |
| Machine Dimensions LxWxH | 112" x 62" x 80" w/ Barfeed |
| Machine Weight | 2,500 lbs with Barfeed |
| Live Mill Holder Collet Capacity | 1/16" - 1/4" |
