2021 Haas Mini Mill
No longer available
2021 Haas Mini Mill
Location:California
Description
1 GB Program Memory
10 Station Tool Changer
Rigid Tapping
Wireless Networking Interface
RS 232 Port Interface

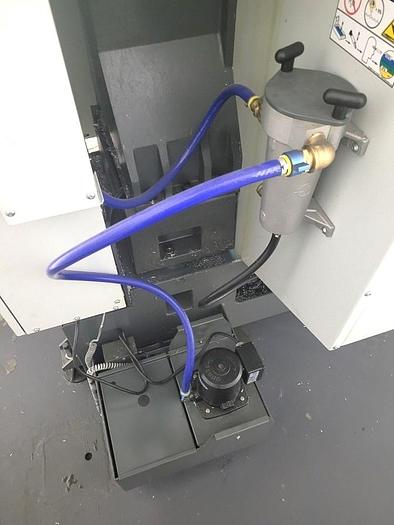

Complete Coolant System
**VERY LOW HOURS**
Specifications
| Manufacturer | Haas |
| Model | Mini Mill |
| Year | 2021 |
| Condition | Used |
| Stock Number | 119085 |
| Table Size | 36" x 12" |
| Maximum Table Load | 500 lbs |
| X-axis travel | 16" |
| Y-Axis Travel | 12" |
| Z-Axis Travel | 10" |
| Spindle Taper | CAT #40 |
| Spindle Speed | 6,000 RPM |
| Spindle Motor | 7.5 HP |
| Distance Spindle Nose to Table Top | 4" - 14" |
| Tool Magazine Capacity | 10 Position ATC |
| Tool Change Time Tool to Tool | 2.5 Seconds |
| Maximum Tool Diameter / Length / Weight | 3.5" / Na / Na |
| Rapid Traverse Rates | 650 IPM |
| Cutting Feedrates | 500 IPM |
| Machine Dimensions LxWxH | 78" x 72"x85" |
| Machine Weight | 4,100 lbs |
