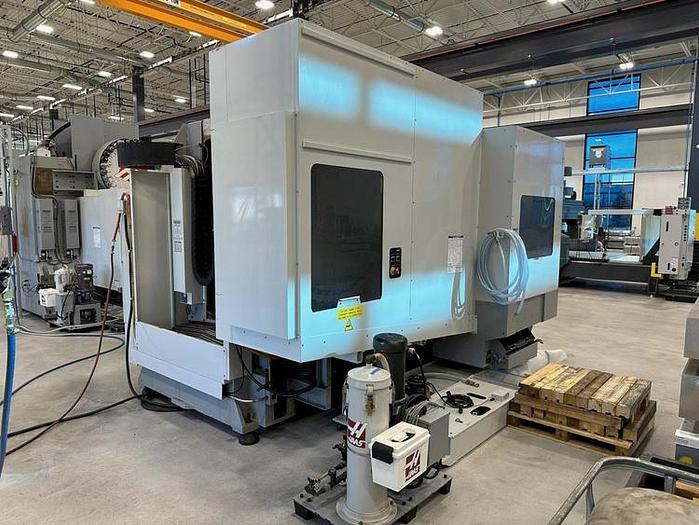

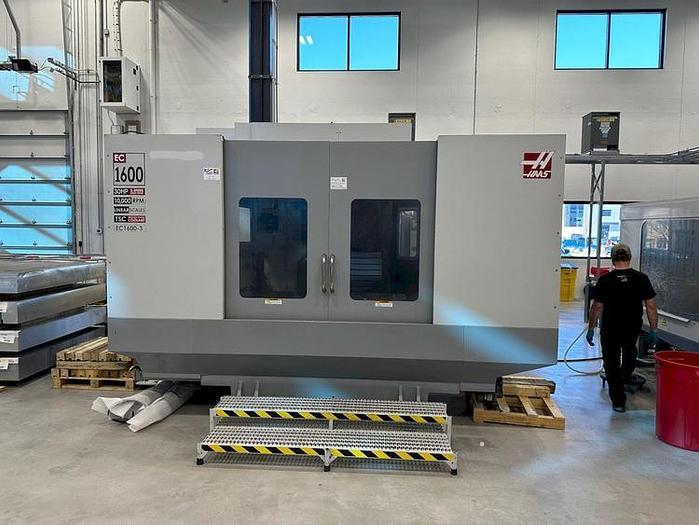

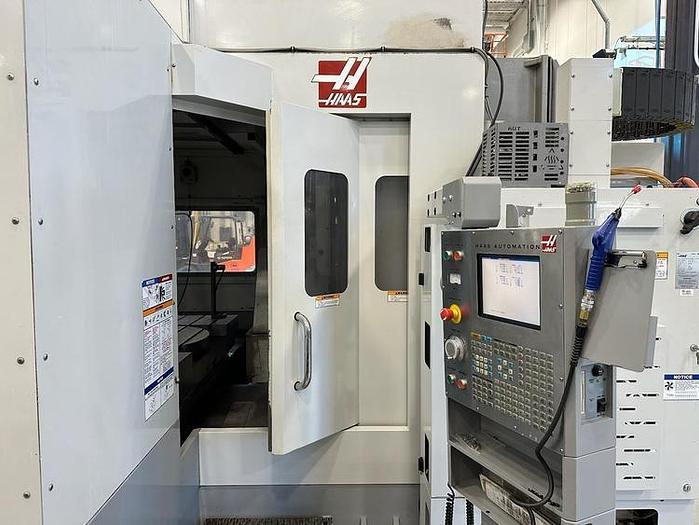

2006 Haas EC-1600 w/Built in Rotary Table
No longer available
2006 Haas EC-1600 w/Built in Rotary Table
Location:Illinois
Description
4th Axis Drive & Wiring

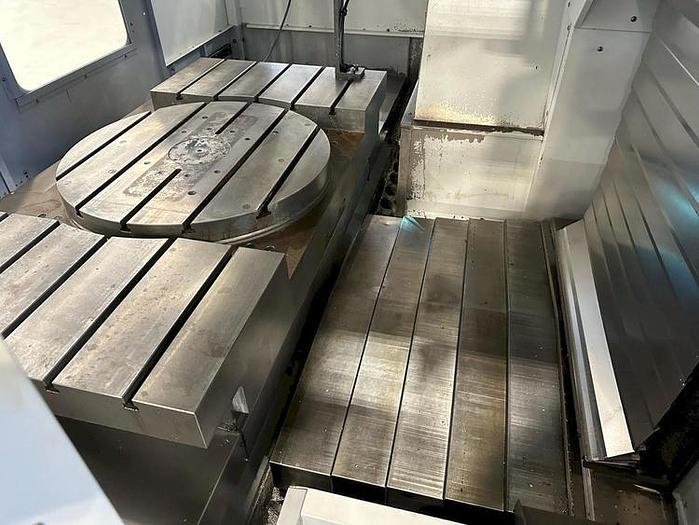

Full 4th Built-in Rotary Platter
Coolant Through the Spindle
50 Station Side Mounted Tool Changer
10,000 RPM Spindle Option
Auxiliary Coolant Filter System
Coordinate Rotation & Scaling
Spindle Orientation
User Definable Macros
Visual Quick Code Programming
Dual Auger Chip Conveyors
Rigid Tapping
Remote Jog Handle
Hard Disk Drive & Ethernet Interface
USB Port Interface
RS 232 Port Interface

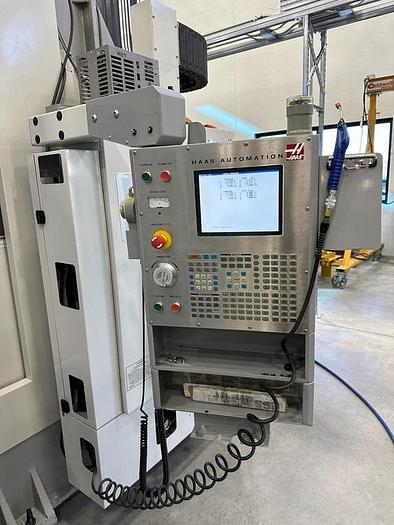

15" Color LCD Monitor
Early Power Failure Detection Module
Memory Key Lock Switch
Specifications
| Manufacturer | Haas |
| Model | EC-1600 w/Built in Rotary Table |
| Year | 2006 |
| Condition | Used |
| Stock Number | 119082 |
| Table Size | 64" x 32" |
| Maximum Table Load | 10,000 lbs |
| Pallet Indexing | 360 Degrees |
| X-axis travel | 64" |
| Y-Axis Travel | 50" |
| Z-Axis Travel | 32" |
| Spindle Taper | CAT 50 |
| Spindle Speed | 10,000 RPM |
| Spindle Motor | 30 HP - 2-Speed Geared Head |
| Tool Magazine Capacity | 50 Station Side Mounted Tool Changer |
| Rapid Traverse Rates | 540 IPM |
| Maximum Tool Diameter / Length / Weight | 10" / 20" / 30 lbs |
| Machine Dimensions LxWxH | 190"x144"x135" |
| Machine Weight | 30,000 lbs |
