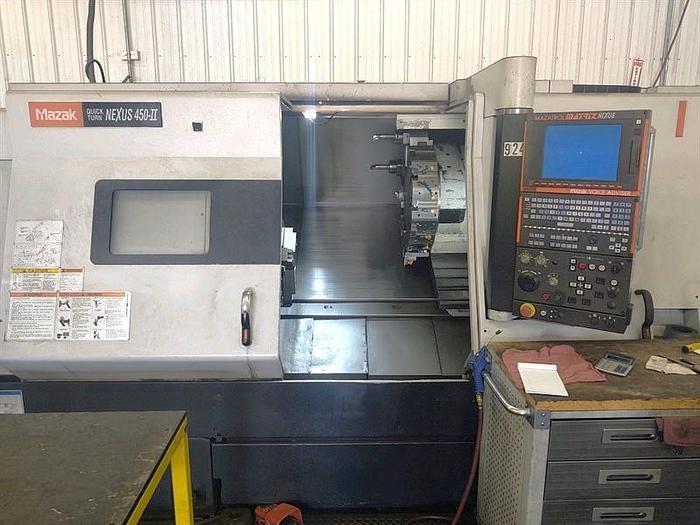

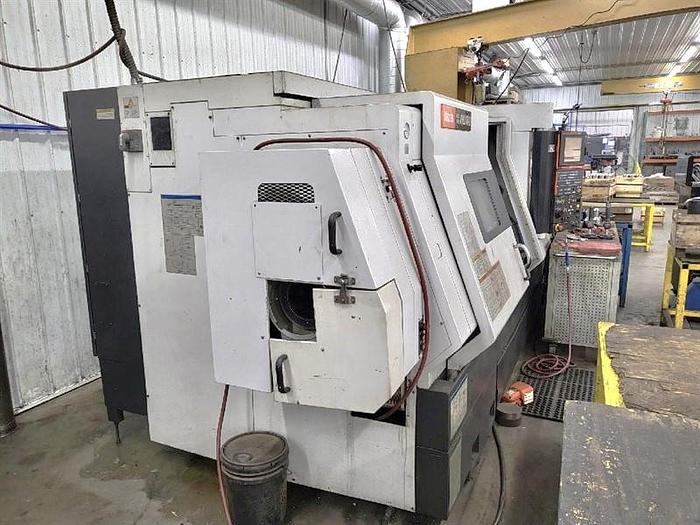

2009 Mazak Nexus QTN 450-II/1000
2009 Mazak Nexus QTN 450-II/1000
$99,950 (USD)
Minnesota
orCall (863) 439-6066
Description

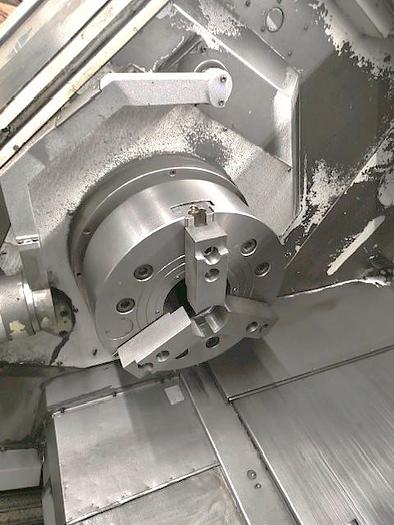

18" 3 Jaw Hydraulic Chuck
7.2" Big Bore Spindle with 6.49" bar capacity due to hydraulic draw tube
Chip Conveyor
Programmable Tailstock
Tool Presetter

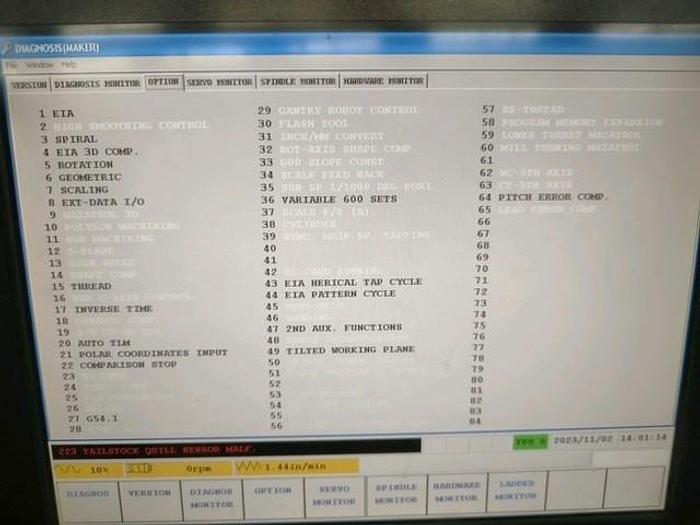

EIA/ISO Programming
EIA Pattern Cycle
EIA Helical Tapping Cycle
EIA 3D Compensation High Pressure Coolant
USB Interface (2 Ports) LAN Port Interface
RS 232 Port Interface Multi Tap Transformer
Tool Path Storage
Tilted Work Plane
Spiral Interpolation
Geometric
Coordinate Rotation & Scaling
Extenal Data Input/Output
Polar Coordinate Input
Door Interlock
2nd Auxilliary Function
Prepped for Rear Chuck
Threading
Variable 600 Sets
Pitch Error Compensation
Inverse Time
Comparison Stop
Coolant Tank Windows XP Operation System All Available Manuals All Available Tooling
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 450-II/1000 |
| Year | 2009 |
| Condition | Used |
| Stock Number | 119073 |

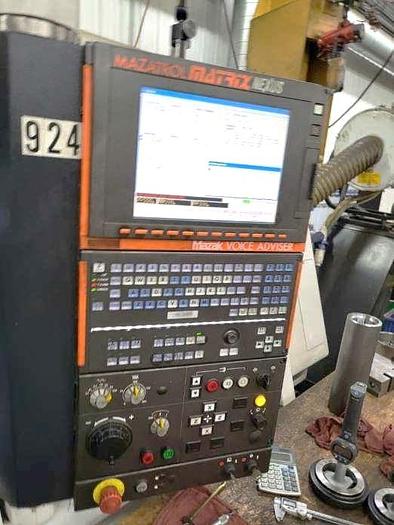

| Control | Mazatrol Matrix Nexus |
| Chuck Size | 18" 3 Jaw Hydraulic Chuck |
| Maximum Swing | 33.268" |
| Maximum Turning Diameter | 22.835" |
| Maximum Turning Length | 40.3" |
| Maximum Bar Capacity | 6.49" |
| X-Axis Travel | 12.13" |
| Z-Axis Travel | 42.13" |
| Spindle Nose / Spindle Bore | A2-15" / 7.2" |
| Spindle Speeds | 2,000 RPM - Geared |
| Spindle Motor | 50 HP |

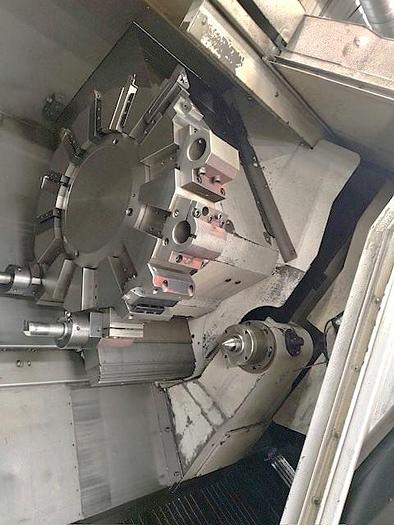

| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates | 1181 IPM |
| Tailstock Body Travel / Center | 40.375" / MT #5 |
| Machine Dimensions | 178"x99"x84" |
| Machine Weight | 19,401 lbs. |
