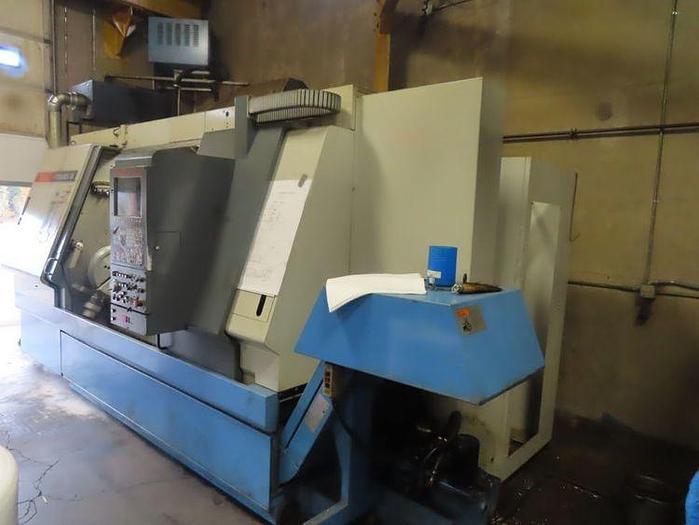

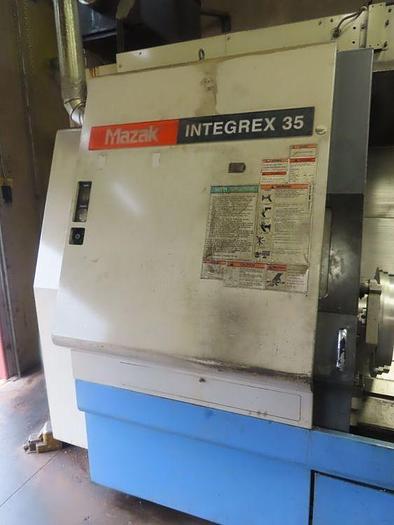

1998 Mazak Integrex 35/1500

1998 Mazak Integrex 35/1500
Contact us for price
Oregon
Description

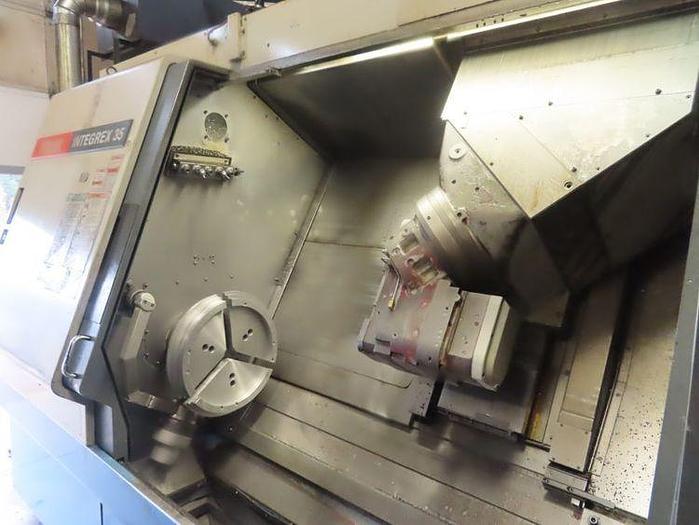

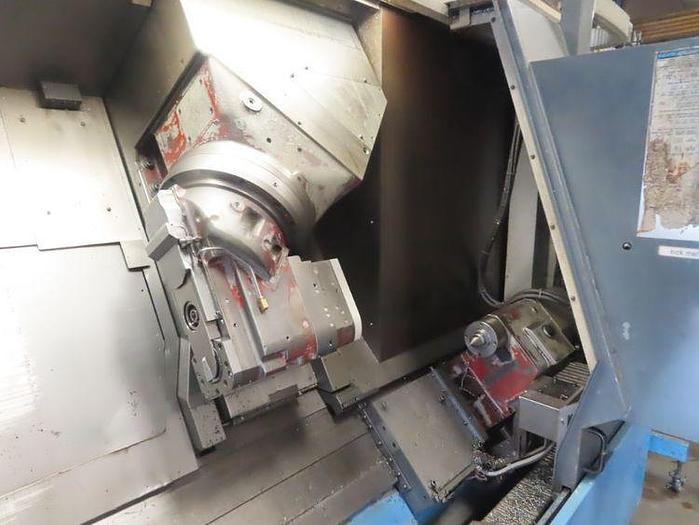

Full C-Axis Spindle Rotation
Live Milling/Drilling Capability
Chip Conveyor - Mayfran

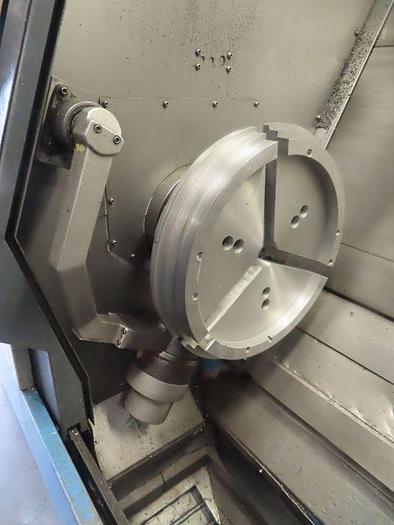

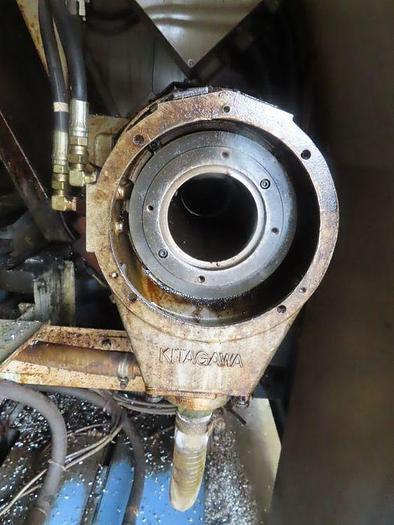

12" 3 Jaw Hydraulic Chuck

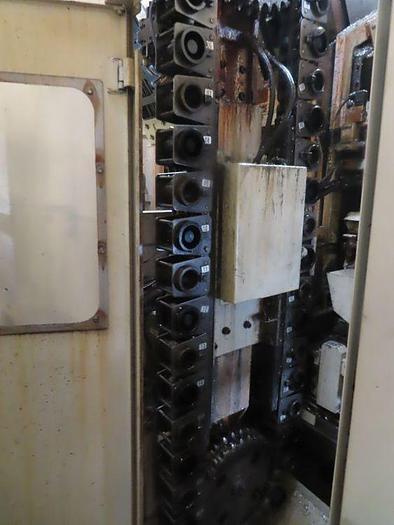

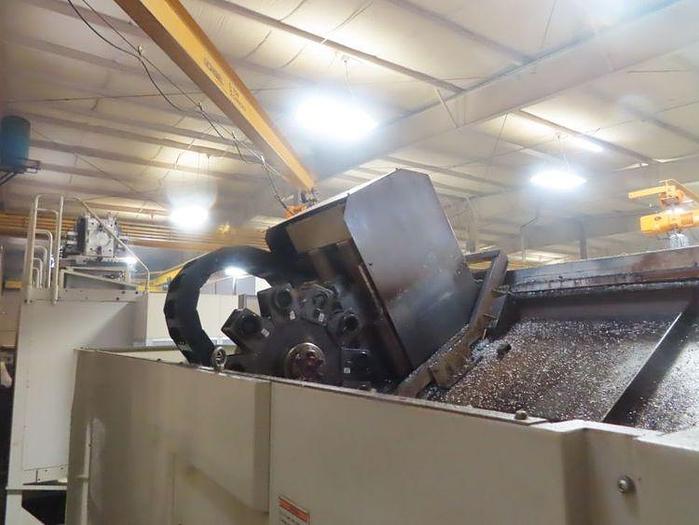

40 Station Tool Changer (20 Mill / 20 Turn)
Automatic Tool Eye

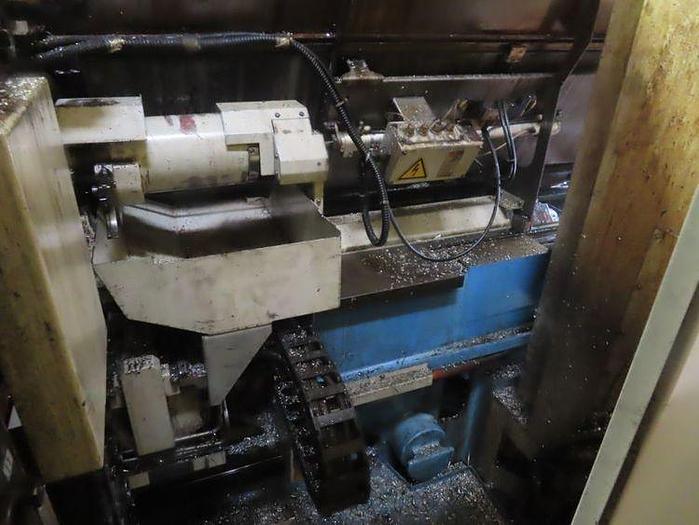

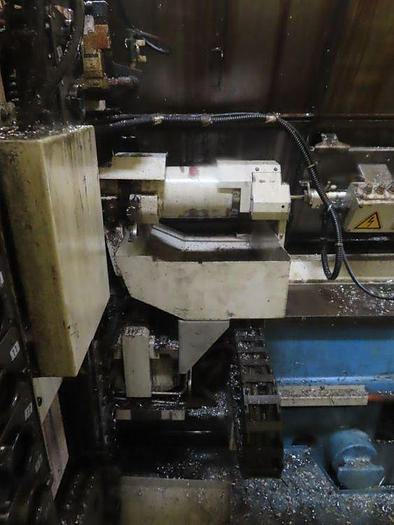

Tailstock
Steady Rest Mount
60" Centers Option
Transformer 230-460V Electrics
Synchronized Tapping with Mill Tool
Coolant Through the Mill Head

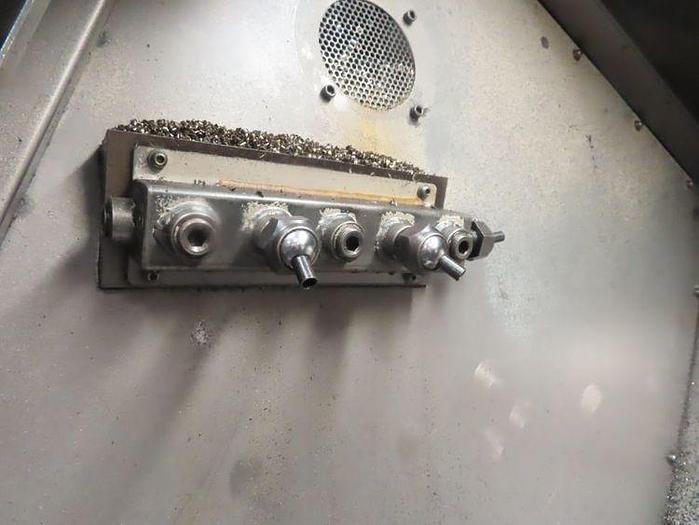

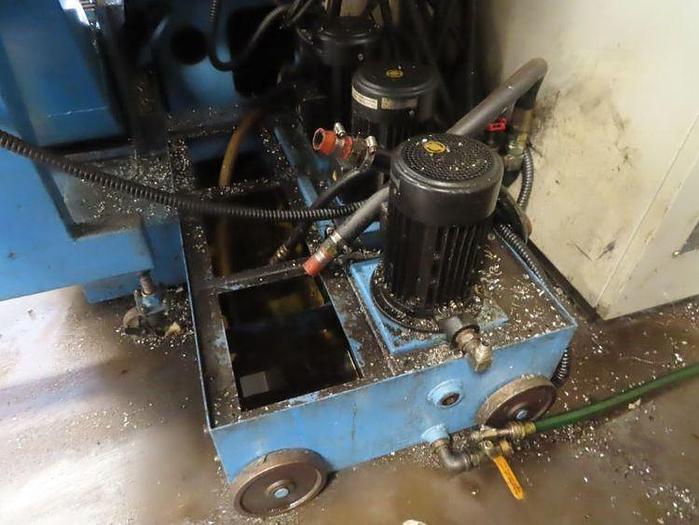

Coolant System with Tank & Pump
EIA/ISO Input Function for G Code Programming
RS-232C Port for DNC Interface

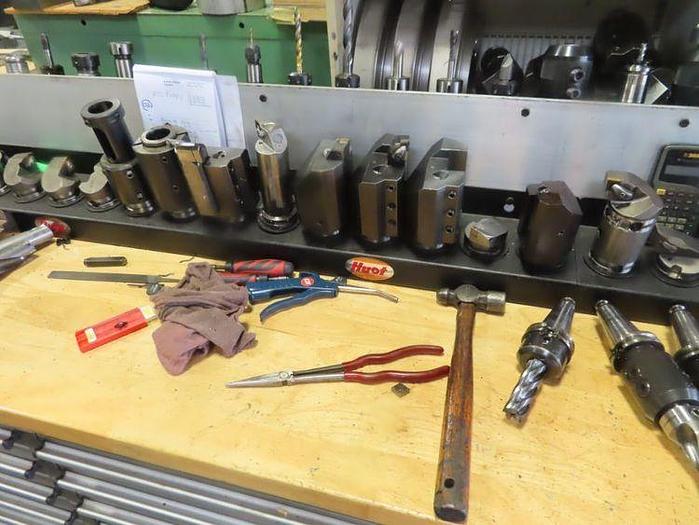

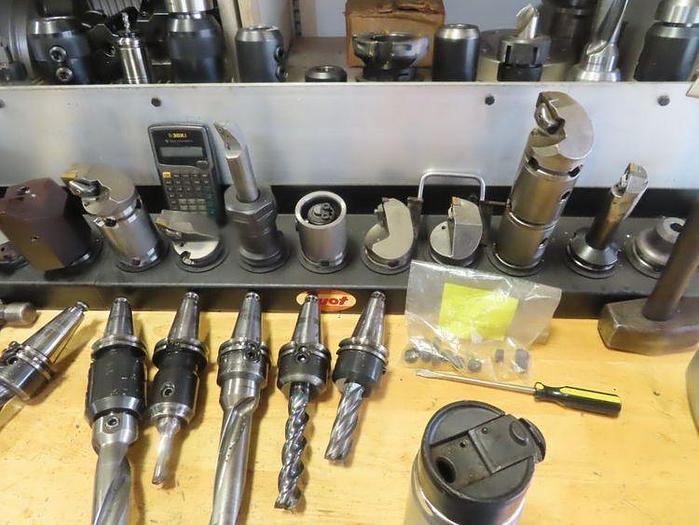

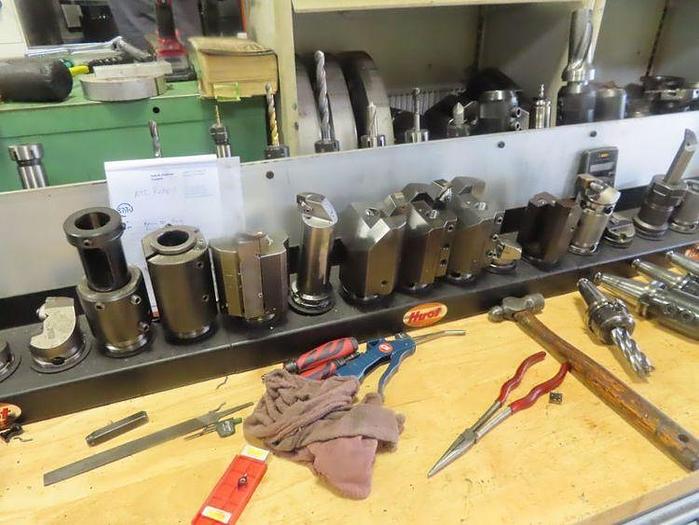

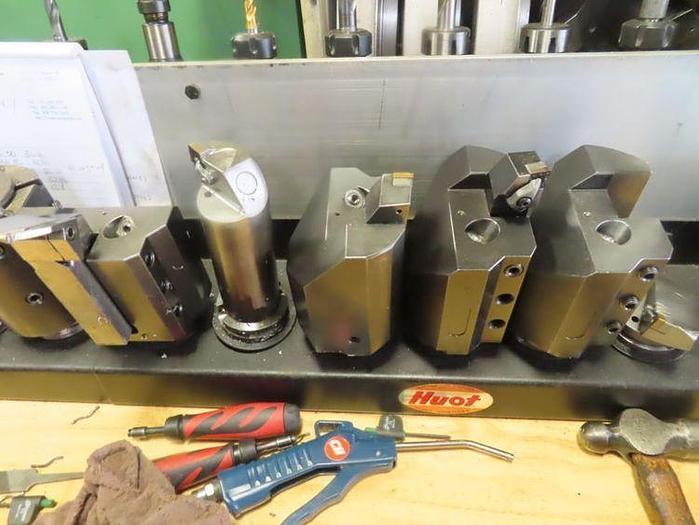

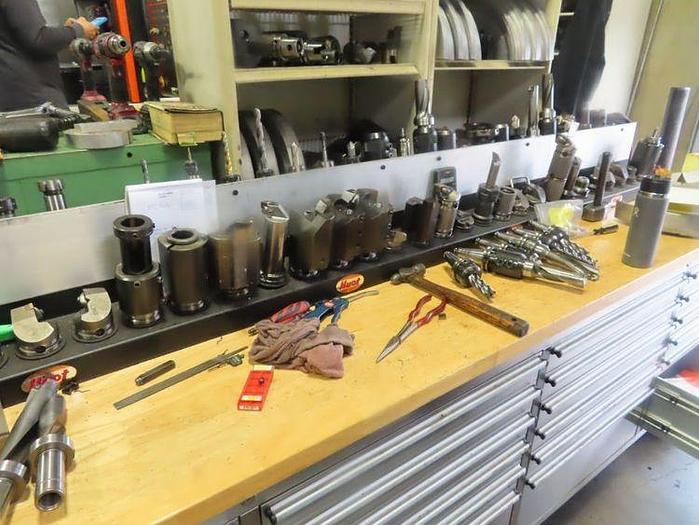

Miscellaneous Tooling - Both KM63 and CAT40 Holders
All Available Manuals

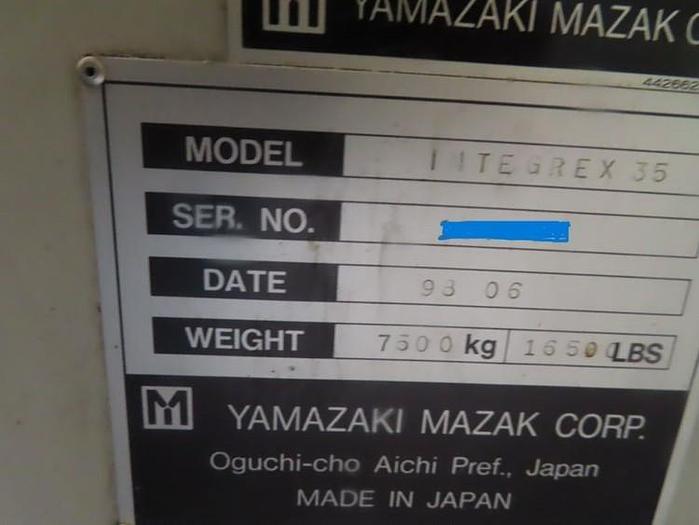

**Manufactured New in June of 1998**
**Will be under power thru end of November, needs to be removed by December 5th**
**One Owner Machine, well maintained, has been a "work horse" for client. Has run carbon steel, stainless, and aluminum**
**Power On Hours - 7,364**
**Automatic Cutting Hours - 5,720**
**Automatic Operation Hours - 8,030**
**Total Cutting Hours - 2,154**
Specifications
Manufacturer | Mazak |
Model | Integrex 35/1500 |
Year | 1998 |
Condition | Used |
Stock Number | 119072 |

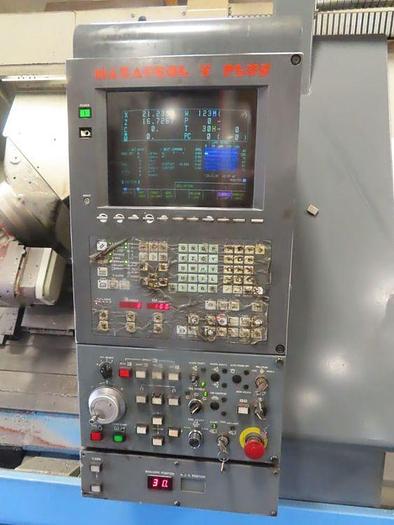

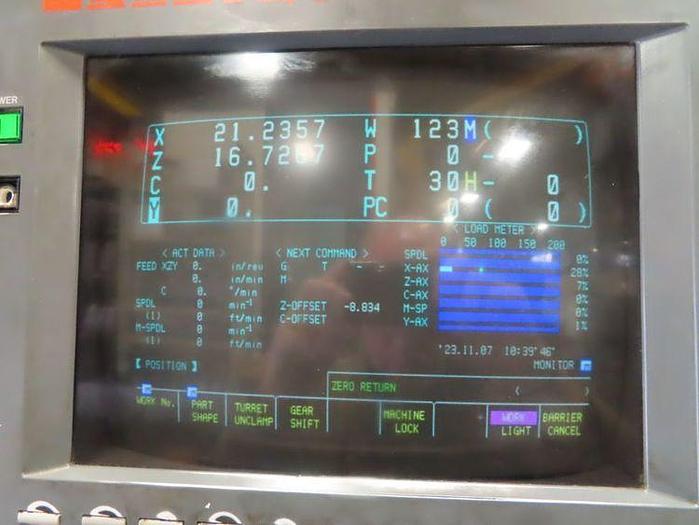

Machine Control | Mazatrol T-Plus Control |
Chuck Sizes Main / Subspindle | 12" 3-Jaw Hydraulic Chuck |
Maximum Swing | 22.5" |
Maximum Swing Over Carriage | 18.5" |
Maximum Turning Diameter | 22.5" |
Maximum Cutting Length | 60" |
X-Axis Travel | 17.75" |
Z-Axis Travel | 60.2" |
C-Axis Rotation | .001 Degree |
Spindle Nose / Bore / Bar Capacity | A2-8" / 3.46" / 3.03" |
Spindle Speed | 35 - 3,000 RPM |
Spindle Motor | 40 HP |
Mill Tool Taper | KM63 and CAT 40 |
Milling Spindle Speed | 6,000 RPM |
Milling Spindle Motor | 10 HP |
Tool Magazine Capacity | 40 Position Tool Changer |
Number of Turret Positions | 2 Station Turret |
Tailstock Quill Diameter / Center | 3.35" / MT #4 |
Rapid Traverse Rates X/Z | 472 IPM / 708 IPM |
Machine Dimensions LxWxH | 204" x 90" x 120" |
Machine Weight | 16,535 lbs |
