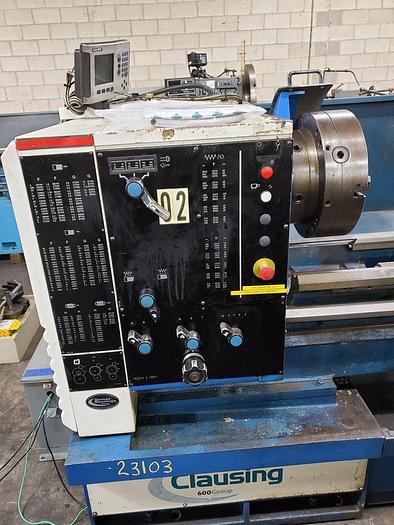

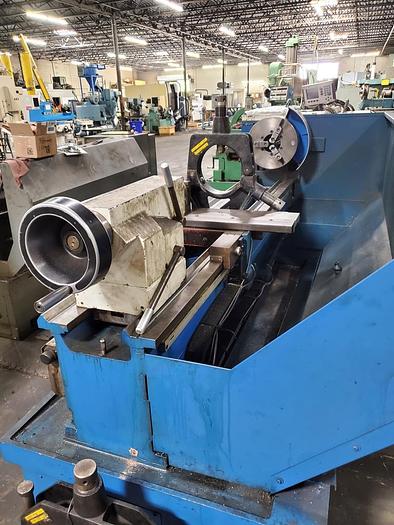

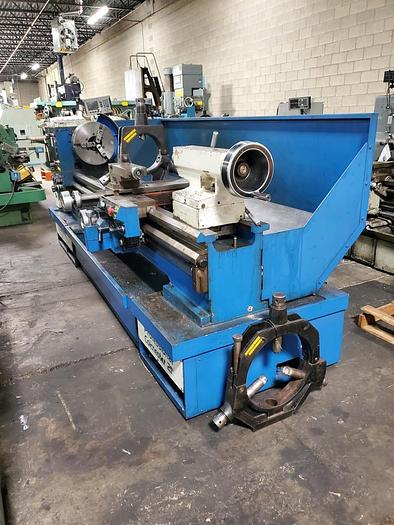

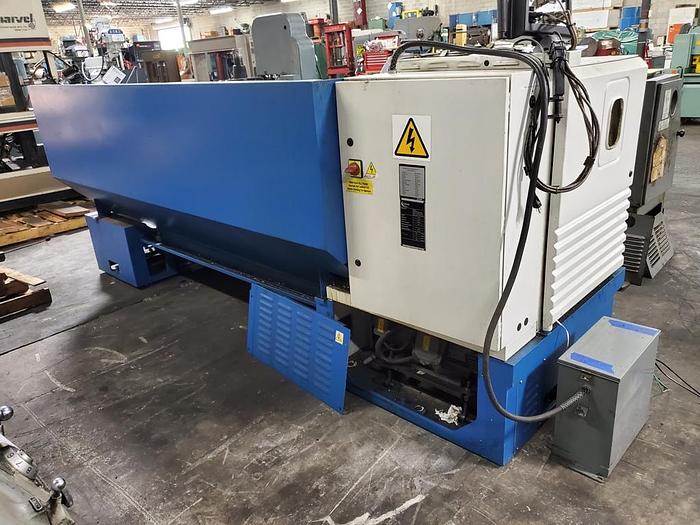

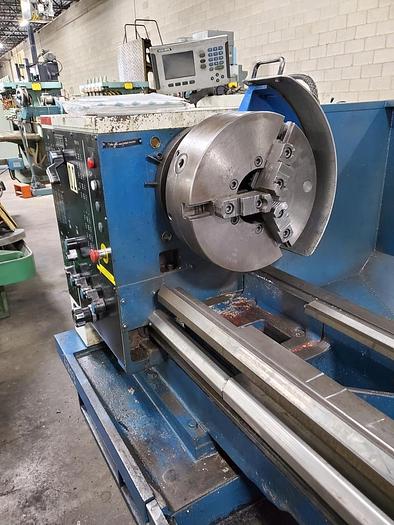

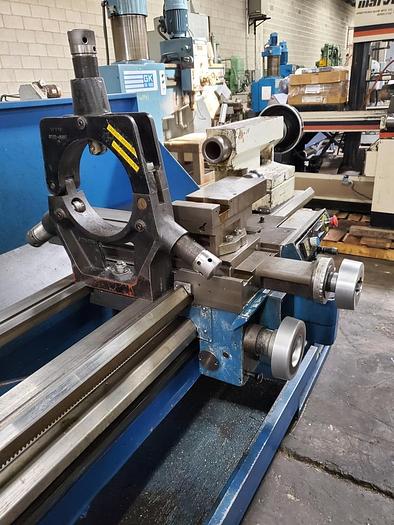

1986 Nardini IN-2000T Engine Lathe
No longer available
1986 Nardini IN-2000T Engine Lathe
$14,950 (USD)
Location:Pennsylvania
Description
15.75" Bison 3 Jaw Manual Chuck
Newall 2 Axis Digital Readout
Inch/Metric Threading
Tailstock - 2 Speed
18" Faceplate
6" Steady Rest
6 Position Adjustable Turret Stop for Carriage
4 Way Rapid Traverse
Assorted Change Gears
Full Length Rear Splash Guards
220/440V / 3 Phase / 60 HZ
OEM Manual
Specifications
| Manufacturer | Nardini |
| Model | IN-2000T Engine Lathe |
| Year | 1986 |
| Condition | Used |
| Stock Number | 119068 |
| Chuck Size | 15.75" 3 Jaw Chuck |
| Maximum Swing over Bed | 20" |
| Maximum Swing Over Cross Slide | 11.375" |
| Swing over Gap | 27.875" |
| Length of Gap from Spindle Face | 11.75" |
| X-Axis Travel | 12.625" |
| Tool Slide Travel | 7" |
| Center Distance | 80" |
| Spindle Nose / Spindle Bore | A1-11 / 4.75" |
| Spindle Speeds | 16 - 1,250 RPM |
| Spindle motor | 20 HP |
| Number of Tool Positions | not available |
| Tailstock Quill Diameter / Quill Travel / Taper | 3.5" / 10.375" / #5 MT |
| Machine Dimensions LxWxH | 144"x50"x70" |
| Machine Weight | 5,800 lbs approximately |
