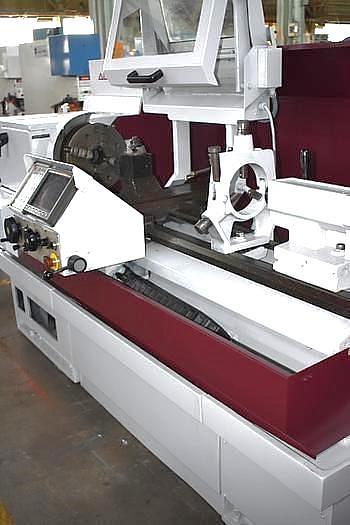

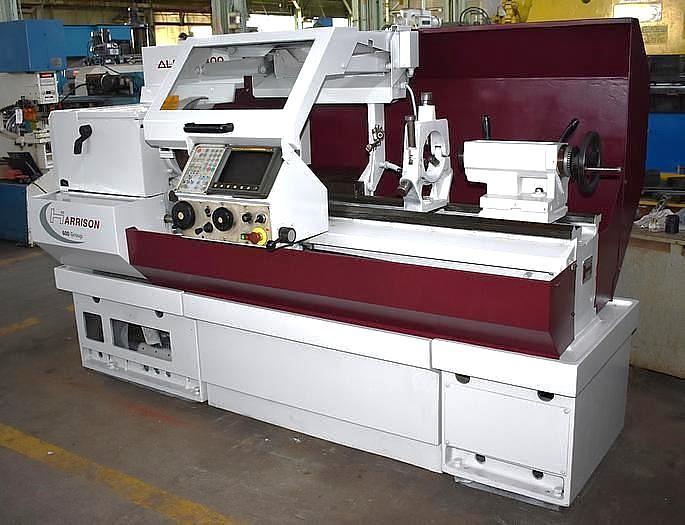

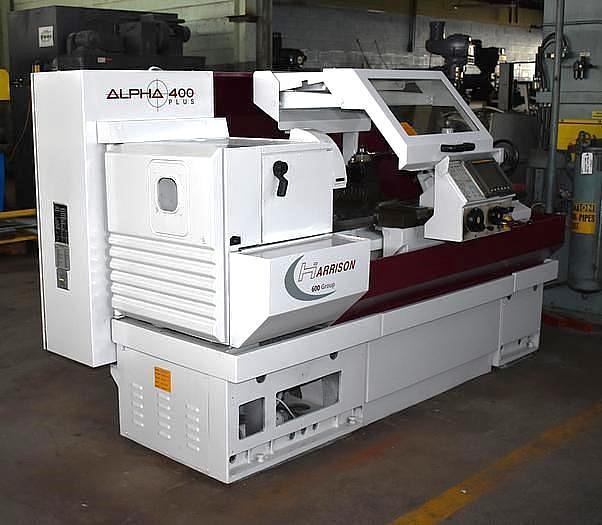

1997 Harrison/600 Group Alpha 400 Plus CNC Combination Lathe
No longer available
1997 Harrison/600 Group Alpha 400 Plus CNC Combination Lathe
$14,950 (USD)
Location:Kentucky
Description

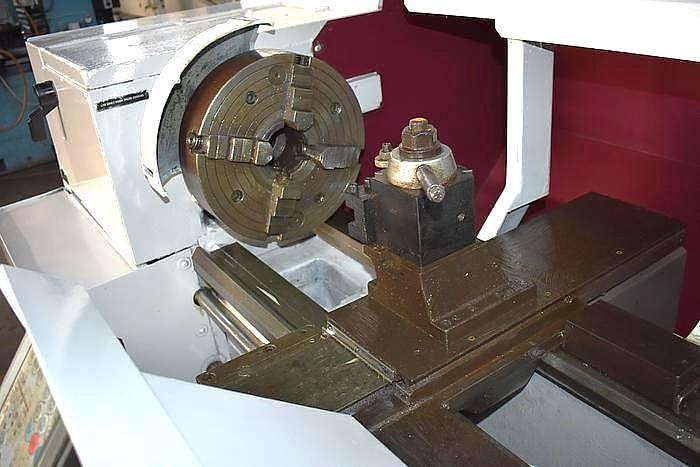

12" 4 Jaw Manual Chuck with Jaws
10" 3 Jaw Manual Chuck with Jaws
Tool Post
Tailstock
Removable Gap
Steady Rest
Electronic Hand Wheels for Manual Operation
Coolant System
Utilizes Fanuc Based G Code Type Programming
Wired 415V 3 Phase Electrics
RS 232 Port Interface
Coolant/Chip Splash Cover
Specifications
| Manufacturer | Harrison/600 Group |
| Model | Alpha 400 Plus |
| Year | 1997 |
| Condition | Used |
| Stock Number | 119066 |

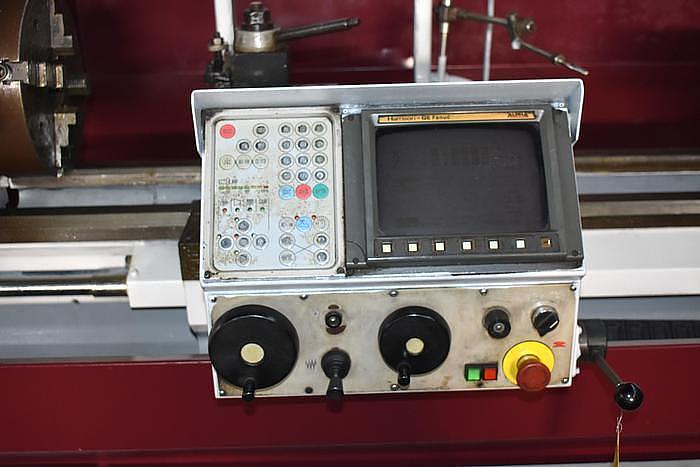

| Machine Control | Harrison GE/Fanuc Alpha Control |
| Chuck Size | 10" & 12" Manual Chucks |
| Maximum Swing over Bed | 15.75" |
| Swing in Gap | 23" |
| Maximum Swing Over Cross Slide | 9.62" |
| Distance Between Centers | 50" |
| X-Axis Travel | 9.8" |
| Z-Axis Travel | 50" |
| Subspindle Nose / Bore / Bar Capacity | D1-6 Camlock / 2.1" / 2.1" |
| Spindle Speeds | 15 - 2,500 RPM |
| Spindle Motor 30 Minutes/Continuous | 10 HP |
| Turret Type | Tool Post |
| Rapid Traverse Rates | 240 IPM |
| Tailstock Quill Diameter / Quill Travel / Taper | 2.875" / 5.5" / MT #5 |
| Machine Dimensions LxWxH | 101" x 60" x 68" |
| Machine Weight | 4,750 lbs |
