2000 Toshiba TMF-10 w/ Live Tooling

Chip Conveyor

Live Milling Capability

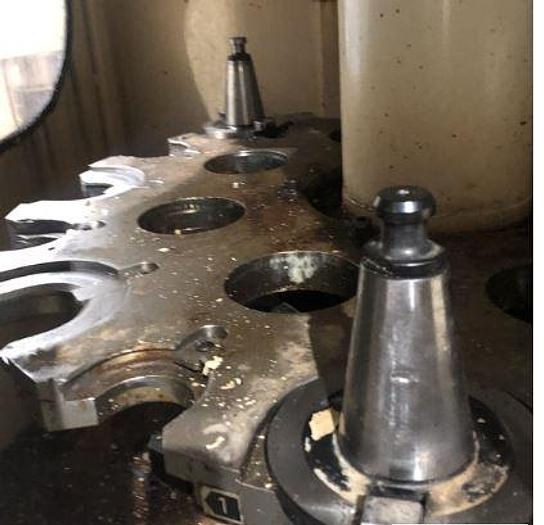

24 Station Tool Changer

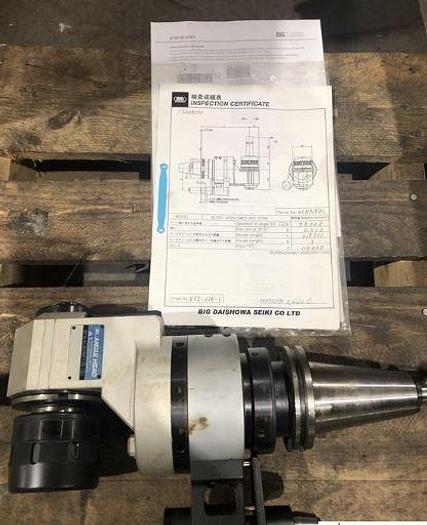

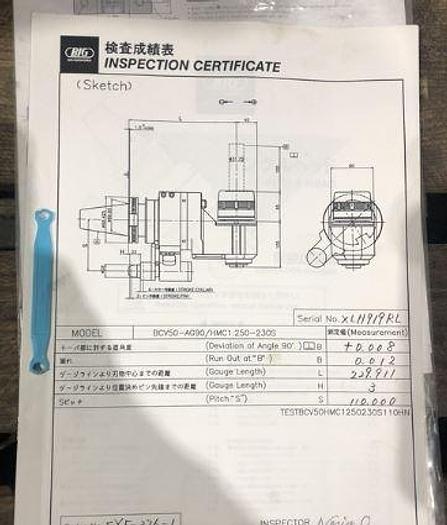

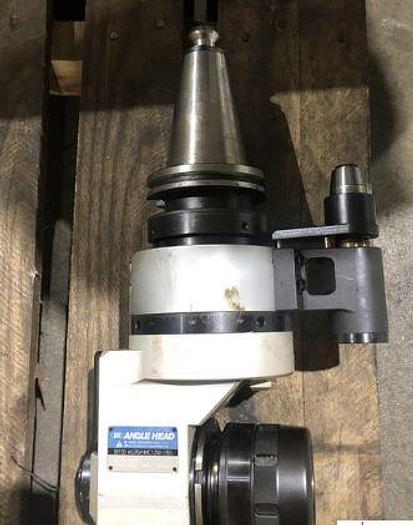

40 Taper Angular Live Tooling

RS 232 Port Interface

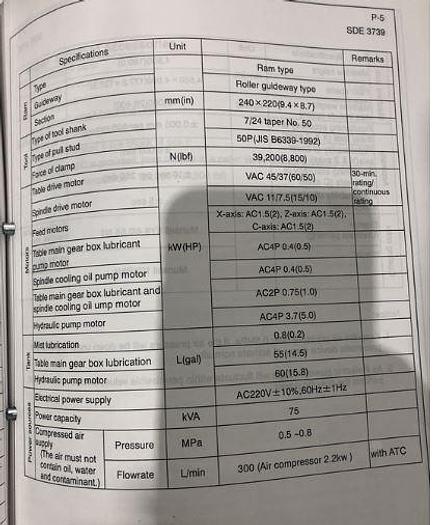

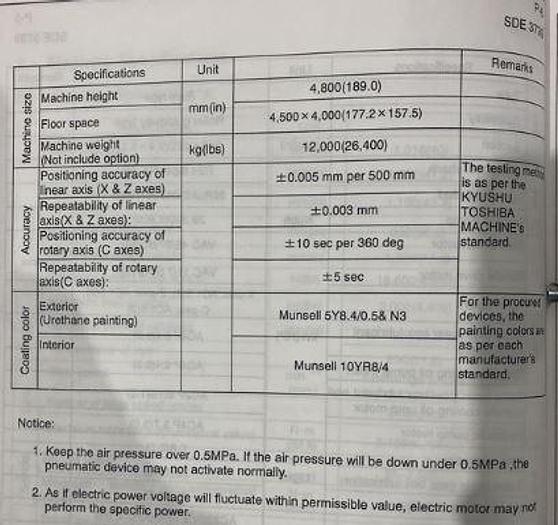

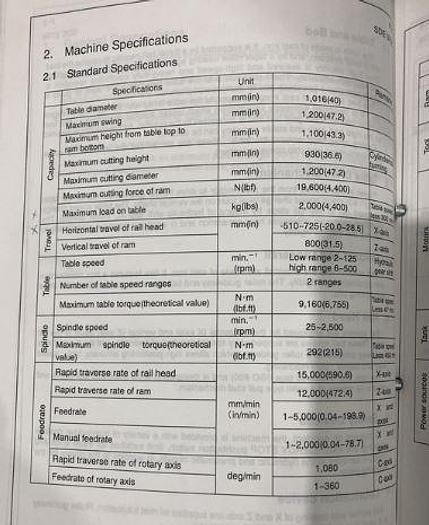

All Available Manuals

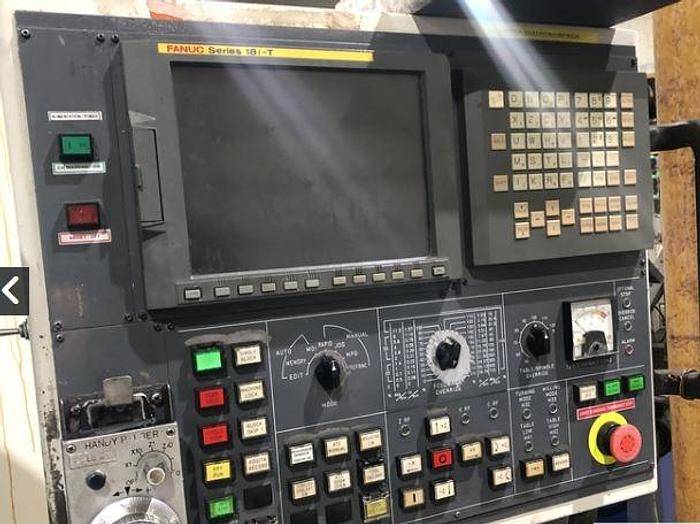

The 2000 Toshiba TMF-10 Vertical Boring Mill with Live Tooling is a reliable CNC machine equipped with a Fanuc 18i-T Control system. This model features a 40-inch table diameter and can accommodate a maximum table load of 4,398 lbs, making it suitable for handling sizeable workpieces. The machine supports a maximum swing and turning diameter of 47.2 inches, with a maximum work height of 36.6 inches. Key movements include rail head travel along the X-axis from -20 to +28.5 inches and a ram head travel along the Z-axis of 31.5 inches. The machine boasts a powerful main motor with 60 HP and supports spindle speeds up to 500 RPM, with milling spindle speeds reaching 2,500 RPM. The milling spindle motor provides 15 HP, and the machine includes a 24-station tool changer to facilitate efficient tool management. Rapid traverse rates for X and Z axes are at 590 IPM and 472 IPM, respectively, ensuring quick positioning. The machine design accommodates a work height under the rail of 29 inches. With overall dimensions of 177"x157"x189" and a weight of 26,400 lbs, the Toshiba TMF-10 provides a robust solution for precision vertical boring applications in industrial settings.
