2012 Haas ST-40LMB
2012 Haas ST-40LMB
Contact us for price
North Carolina
orCall (863) 439-6066
Description
80" Long Bed Option
7" Big Bore Option
21" 3 Jaw Thru Hole Hydraulic Chuck
Chip Conveyor
Programmable Tailstock

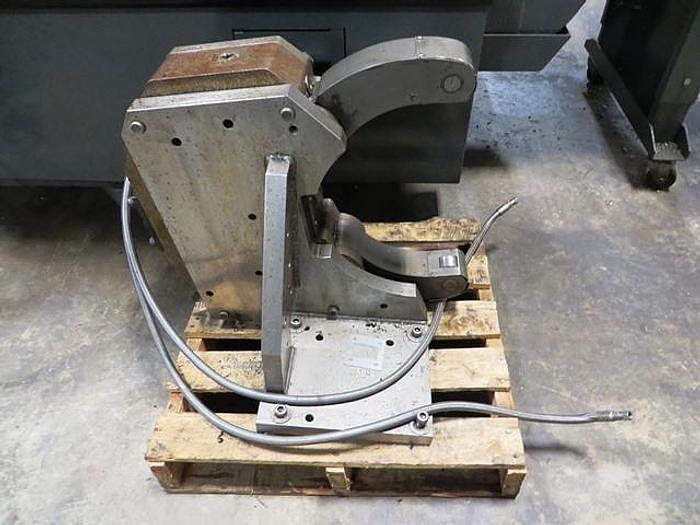

Hydraulic Steady Rest
Additional 20" 3-Jaw Manual Chuck
(6) Static Tool Holders
Specifications
| Manufacturer | Haas |
| Model | ST-40LMB |
| Year | 2012 |
| Condition | Used |
| Stock Number | 119055 |
| Chuck size | 21" Hydraulic Chk |
| Maximum cut diameter/cut length | 25.5" / 80" |
| Maximum swing | 34.5" |
| X-axis travel | 17" |
| Z-axis travel | 80" |
| Swing over cross slide | 25.5" |
| Maximum center distance | 89" |
| Spindle nose / bore / bar capacity | A2-11"/ 7.08" / 7" |
| Turret type | 12 Position Turret |
| Spindle motor | 55 HP |
| Spindle speed | 1,400 RPM |
| Spindle torque | 2100 ft/lbs. |
| Tailstock quill taper | MT #5 |
| Rapid traverse rates x / z | 710 IPM |
| Machine dimensions | 234" x 95" x 86" |
| Machine weight | 31,000 lbs. |
