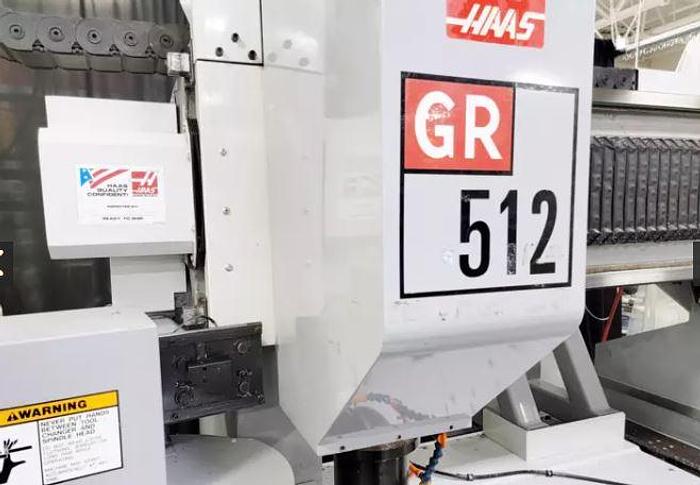

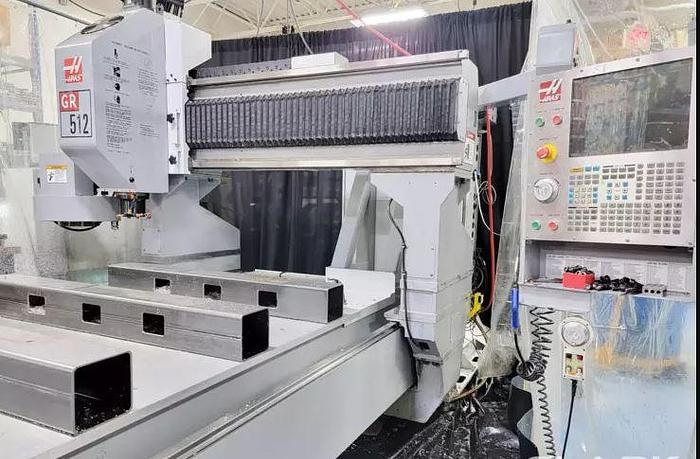

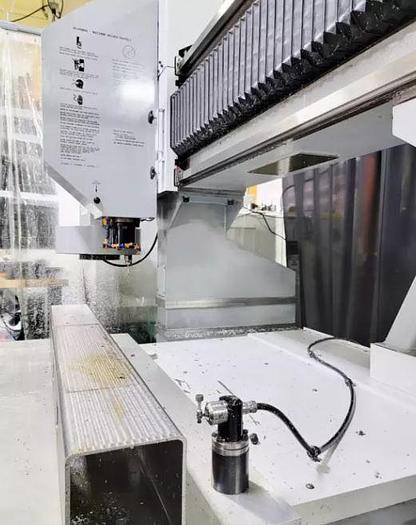

2006 Haas GR-512
No longer available
2006 Haas GR-512
$49,950 (USD)
Location:Maryland
Description
(6") Z-Axis Column Riser

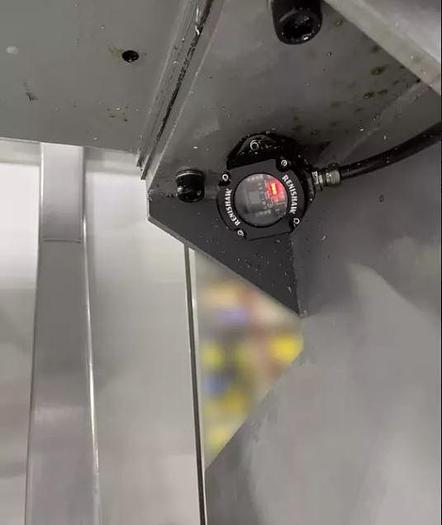

Renishaw Probing System

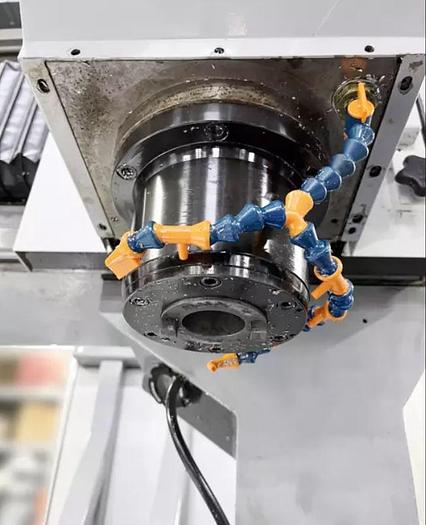

10,000 RPM Spindle
Coordinate Rotation & Scaling
Spindle Orientation
Rigid Tapping
Macros
Coolant System
Cut Primarily Aluminum and some plastic
2,279 hours as of Oct. 2023
Specifications
| Manufacturer | Haas |
| Model | GR-512 |
| Year | 2006 |
| Condition | Used |
| Stock Number | 119051 |
| Table size | 146" x 53" |
| Maximum weight on table | 6,000 lbs. |
| X-axis travel | 144" |
| Y-axis travel | 61" |
| Z-axis travel | 11" |
| Maximum distance between columns | 62" |
| Spindle speed | 10,000 RPM |
| Spindle taper | CAT 40 |
| Spindle motor 30 min. / cont | 15 HP |
| Tool magazine capacity | 10 Station ATC |
| Max. tool diameter | 3.5" |
| Spindle nose to table | 2.5" - 19.5" |
| Rapid traverse (x/y/z) | 800/2,100/1,100 IPM |
| Machine dimensions lxwxh | 252.75" x 130.50" x 99.25" |
| Machine weight | 18,000 lbs |
