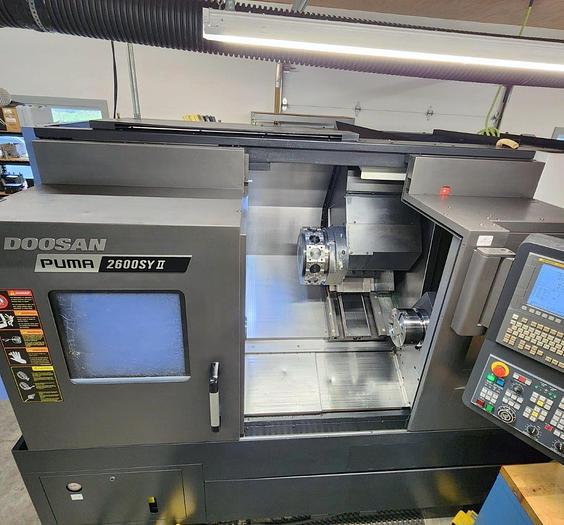

2018 Doosan Puma 2600SY II

No longer available
2018 Doosan Puma 2600SY II
New Hampshire
Description
Full C Axis Spindle Rotation - Both
Live Milling/Drilling Capability
Subspindle Y Axis Capability

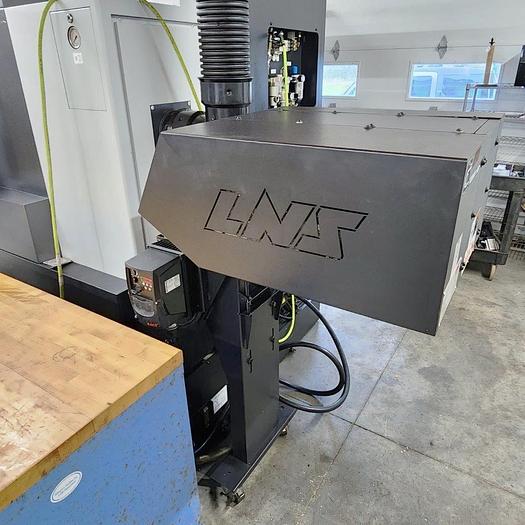

Barfeed Interface
10" 3 Jaw Hydraulic Chuck on Main Spindle
8" 3 Jaw Hydraulic Chuck on Subspindle
Royal QG-80 Collet Chuck for Main Spindle
16C Collet Chuck for Sub Spindle
Tool Presetter
Chip Conveyor

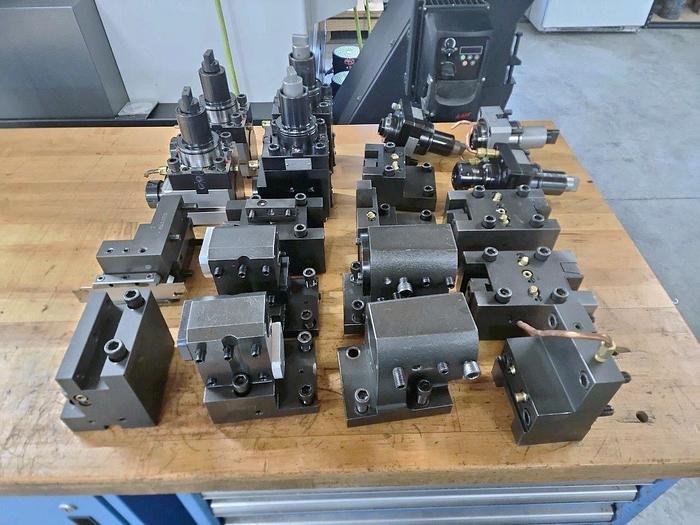

PCMCIA Card Interface Ethernet Interface RS 232 Port Interface Boxed Ways (4) X-Axis Radial Live Holders
(3) Z-Axis Axial Live Holders
Assortment of Static Tool Holders

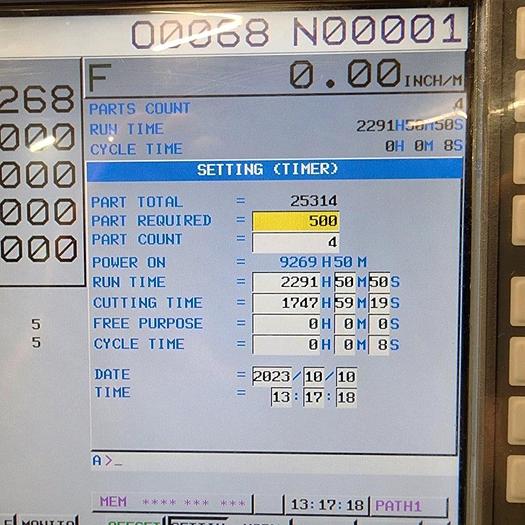

**Cutting Hours as of October 2023 - 1,747 Hours**
**Machine has primarily cut stainless steel (316)**
**Estimated replacement cost as equipped, $230,000 plus**

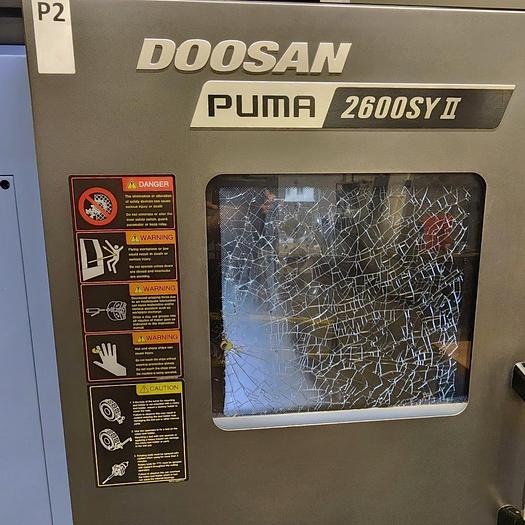

**Front window is broken and is in need of replacement**
Specifications
Manufacturer | Doosan |
Model | Puma 2600SY II |
Year | 2018 |
Condition | Used |
Stock Number | 119045 |

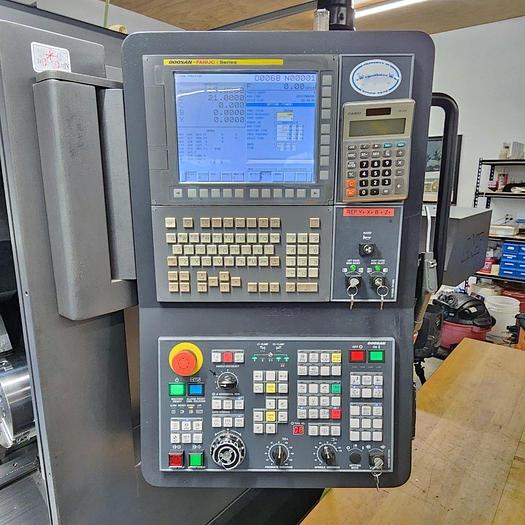

Control | Fanuc i Series Control |
Chuck Size | 10" 3-Jaw Main Spindle / 8" 3-Jaw Subspindle |
Maximum Swing over Bed | 30.7" |
Maximum Cutting Diameter | 14.8" |
Maximum Machining Length | 29.9" |
Maximum Bar Capacity | 3" Main Spindle / 2" Subspindle |
X-Axis Travel | 10.2" |
Y-Axis Travel | 4.13" |
Z-Axis Travel | 32.7" |
C Axis Spindle Rotation - Both | .001 Degree |
Spindle Nose / Spindle Bore | A2-8" Main Spindle / A2-5" Subspindle / 3.6" Main Spindle Bore / 2.4" Subspindle Bore |
Spindle Speeds - Main | 4,000 RPM |
Spindle Motor - Main | 30 HP |
Subspindle Speed / Motor | 6,000 rpm / 20 HP |
Rotary Tool Speed / Rotary Motor | 5,000 RPM / 10 HP |
Number of Turret Positions | 12 Station Turret - BMT 65 |
Rapid Traverse Rates X, Z / Y | 1181 IPM / 394 IPM |
Machine Dimensions | 172" x 85" x 86" |
Machine Weight | 16,100 lbs. |
