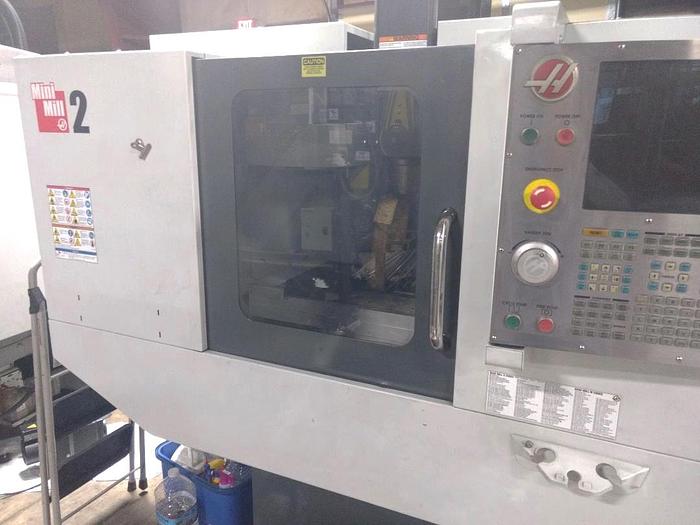

2012 Haas Mini Mill 2
No longer available
2012 Haas Mini Mill 2
Location:North Carolina
Description
Wired for 4th Axis
Haas Probing Package
Spindle Orientation
User Definable Macros
Coordinate Rotation & Scaling
Haas Intuitive Programming
Remote Jog Handle
Rigid Tapping
Complete Coolant System with Tank & Pump
15" Color LCD Monitor
Memory Lock Keyswitch
RS 232 Port Interface
LED Work Light
All Available Manuals
Can Be Used at Either 208V Three Phase or 240V Single Phase Power
Specifications
| Manufacturer | Haas |
| Model | Mini Mill 2 |
| Year | 2012 |
| Condition | Used |
| Stock Number | 119038 |
| Machine Control | Haas CNC Control |

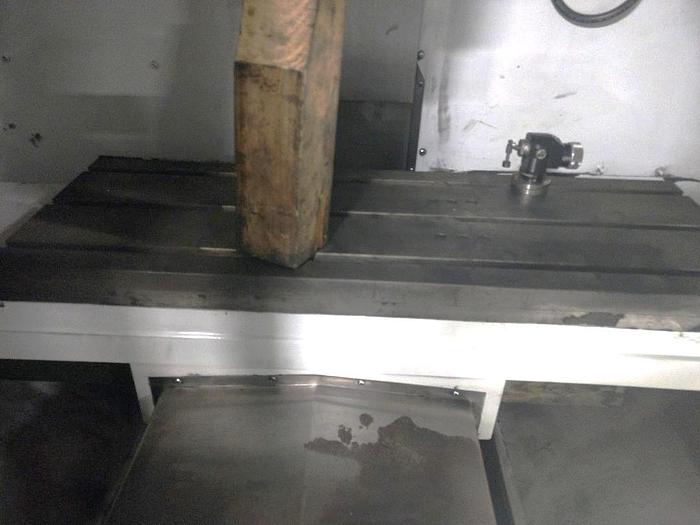

| Table Size | 40"x14" |
| Maximum Table Load | 500 lbs |
| X-Axis Travel | 20" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 14" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 6,000 rpm |
| Spindle Motor | 7.5 hp |
| Rapid Traverse Rates | 600 ipm |
| Tool Magazine Capacity | 10 Position ATC |
| Distance Spindle Nose to Table Top | 4" - 18" |
| Maximum Tool Diameter / Length / Weight | 3.5" / NA / 12 lbs |
| Machine Dimensions LxWxH | 91"x88"x100" |
| Machine Weight | 5,100 lbs |
