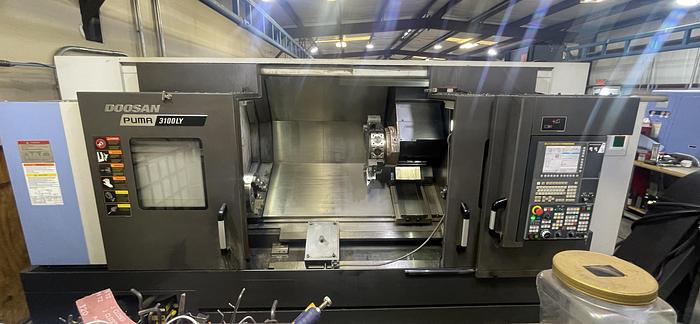

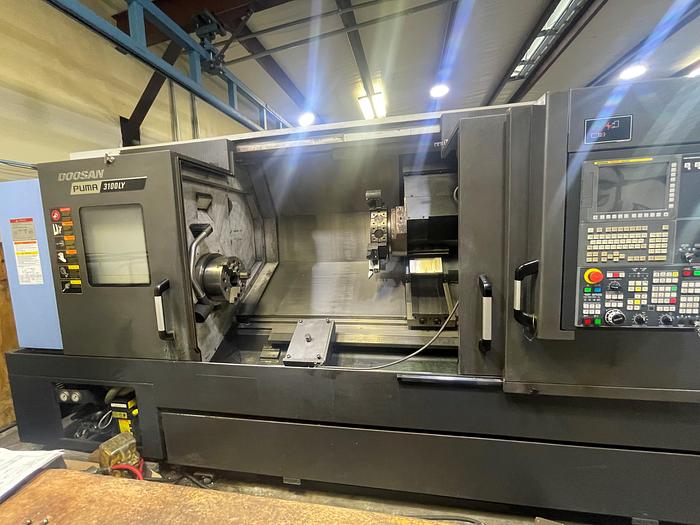

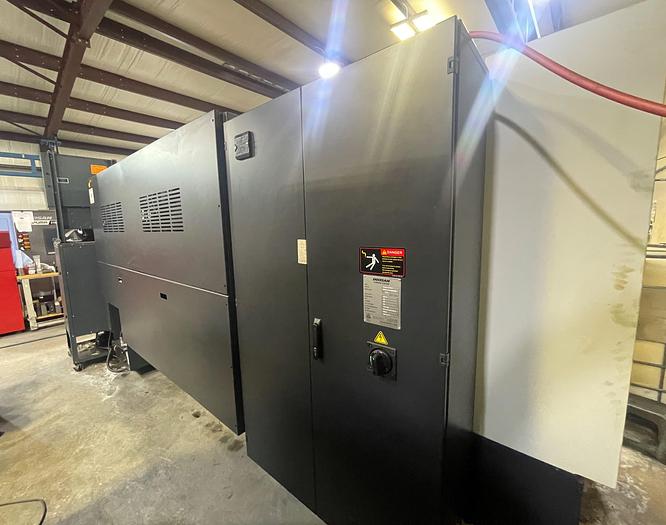

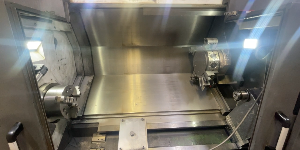

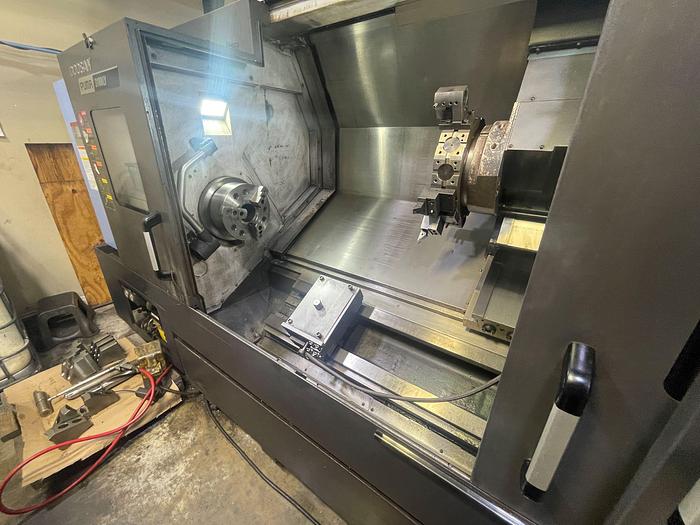

2018 Doosan Puma 3100LY
2018 Doosan Puma 3100LY
Location:Louisiana
Description
Full C Axis Spindle Rotation
Live Milling/Drilling Capability Y Axis Capability 12" 3 Jaw Hydraulic Chuck
Tool Presetter
Chip Conveyor

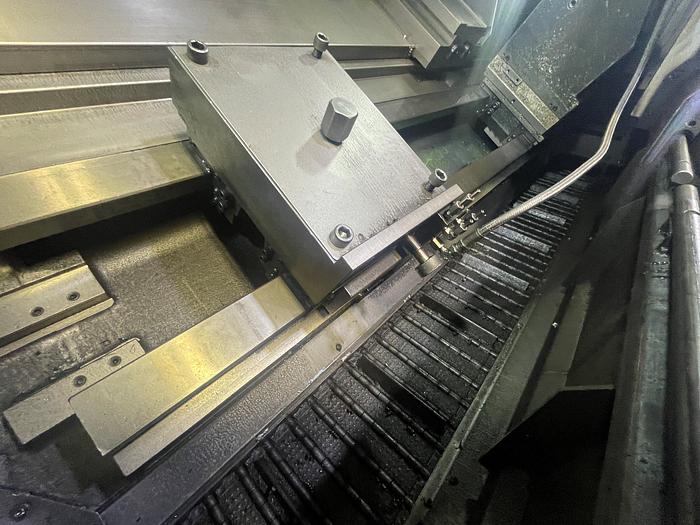

Programmable Positioning Bracket for Steady Rest
Manual RIP-212 Pass Through Type Steady Rest with 0.5" - 12" Capacity
Barfeed Interface only
Long Bed Design Option

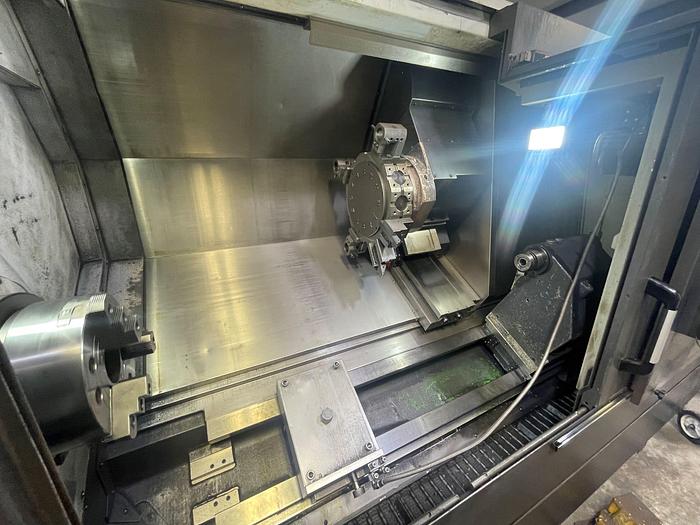

24 Station Turret

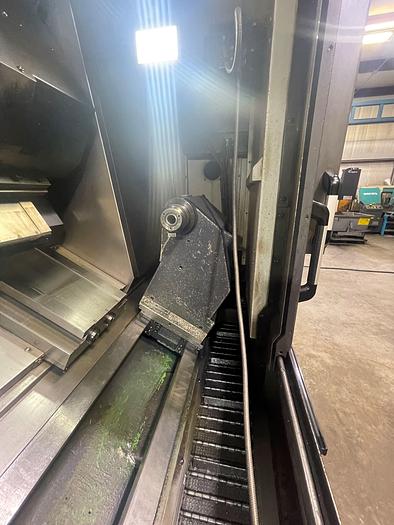

Programmable Tailstock with MT #4 Built in Dead Center

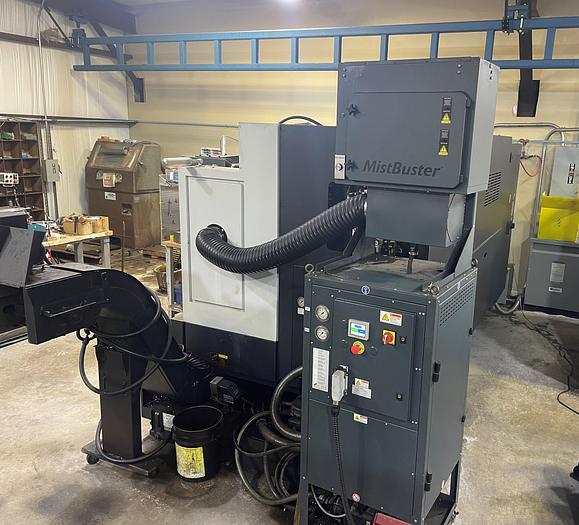

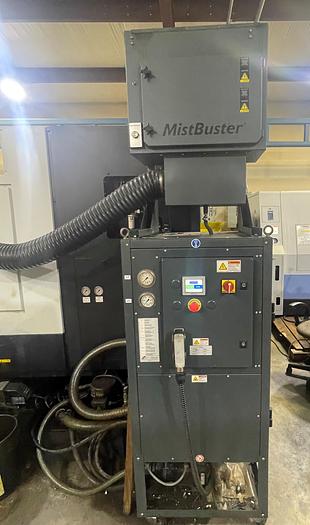

ATS Systems Mist Collector
Cooljet 1000 PSI High Pressure Coolant with Media Free Filtration
Unexpected Disturbance Torque Detection Function
Rigid Tapping on Both Main Spindle and Rotary Tools
Coolant System with Tank & Pump PCMCIA Card Interface Ethernet Interface RS 232 Port Interface

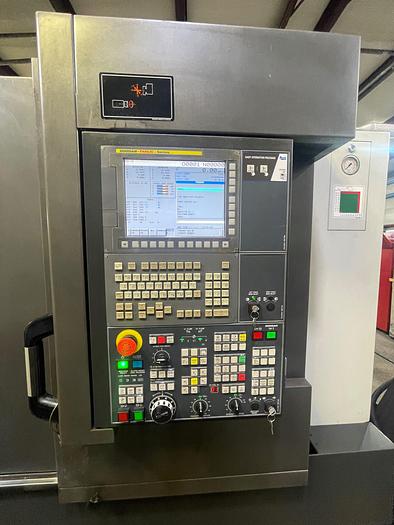

iHMi Touch Screen Interface with Swiveling Operators Panel
Structured Thermal Growth Compensation
EZ Guide i for Conversational Programming
Tool Load Monitoring System
3 Color Signal Light Tower
Boxed Ways
30 Degree One Piece Cast Slant Bed All Available Static Tooling
Two Live Tool Holders (1) Axial and (1) Radial
**ONLY 3,194 Spindle Run Hours**
Specifications
| Manufacturer | Doosan |
| Model | Puma 3100LY |
| Year | 2018 |
| Condition | Used |
| Stock Number | 119021 |
| Control | Fanuc 0i-Plus Control |
| Chuck Size | 12" 3 Jaw Hydraulic Chuck |
| Maximum Swing over Bed | 33.46" |
| Maximum Cutting Diameter | 16.53" |
| Maximum Machining Length | 50.4" |
| Maximum Bar Capacity | 4.02" |
| X-Axis Travel | 11.554" |
| Y-Axis Travel | 5.12" |
| Z-Axis Travel | 53.19" |
| C Axis Spindle Rotation | .001 Degree |
| Spindle Nose / Spindle Bore | A2-11" / 4.52" |
| Spindle Speeds - Main | 2,800 RPM |
| Spindle Motor - Main | 30 HP |
| Rotary Tool Speed / Rotary Motor | 5,000 RPM / 10 HP |
| Number of Turret Positions | 24 Station Turret - BMT Type |
| Rapid Traverse Rates X, Z / Y | 1181 IPM / 394 IPM |
| Tailstock Quill Diameter / Quill Travel / Taper | 3.94" / 3.94" / MT #4 |
| Machine Dimensions | 178.5" x 81.5" x 92" |
| Machine Weight | 17,640 lbs. |
