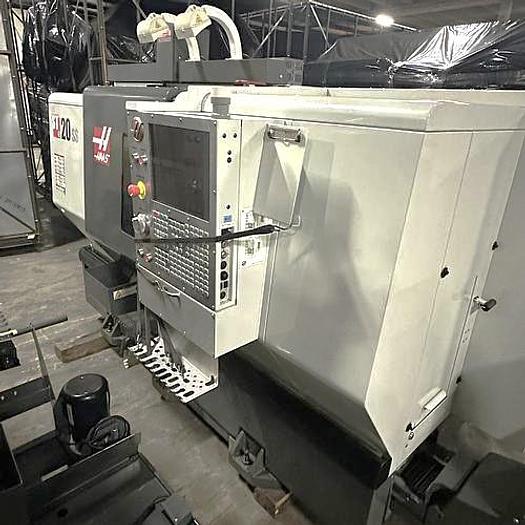

2013 Haas ST-20SS w/Live Tooling

No longer available

2013 Haas ST-20SS w/Live Tooling

North Carolina

Description

Full C-Axis Spindle Rotation

Live Milling/Drilling Capability

Belt Type Chip Conveyor

8.3" 3 Jaw Hydraulic Chuck

Parts Catcher

Programmable Tailstock

Automatic Tool Presetter

Ethernet Interface

High-Intensity Lighting

Internal High-Voltage Isolated Transformer

Servo Auto Door

Rigid Tapping

Spindle Orientation

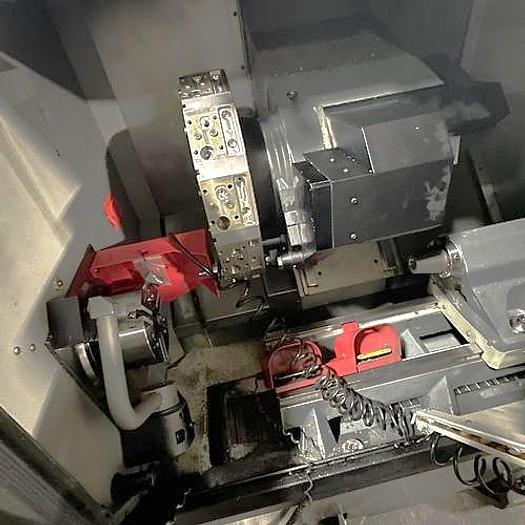

Hybrid Style 24 Station VDI/BOT Turret

(1) Axial & (1) Radial Live Tool Holder


**No Production Use With This Machine**

**Replacement Cost As Equipped $128,626**

Specifications

ManufacturerHaas
ModelST-20SS w/Live Tooling
Year2013
ConditionUsed
Stock Number119017
Chuck size8.3" 3 Jaw Hydraulic Chuck
Maximum Turning Diameter13"
Maximum turning length21"
X-axis travel9.3"
Z-axis travel21"
Center distance24"
Turret type24 Position Hybrid Style
Spindle Nose / Spindle Bore / Bar CapacityA2-6" / 2.4" / 2"
Spindle speed5,000 RPM
Spindle motor30 HP
Rotary Tool Speed / Rotary Motor6,000 RPM / 7.5 HP
Tailstock taper / travelMT #4 / 20"
Rapid traverse rates x / z945 IPM / 1200 IPM
Machine dimensions143"x90"x87"
Machine weight8,820 lbs.
