2009 Doosan HM-1000

2 Pallet Changer

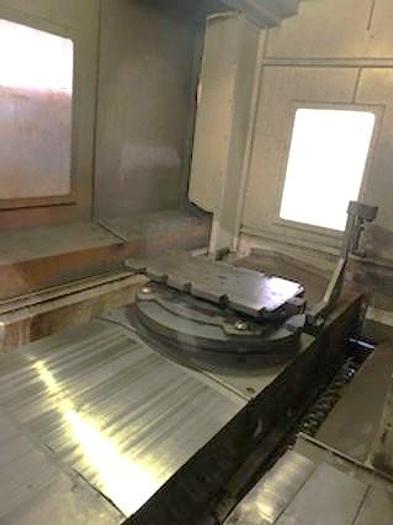

1 Degree Indexing on 4th Axis Table

90 Station Tool Changer

Coolant Through the Spindle - Chip Blaster

Chip Conveyor

RS 232 Port Interface

All Available Manuals

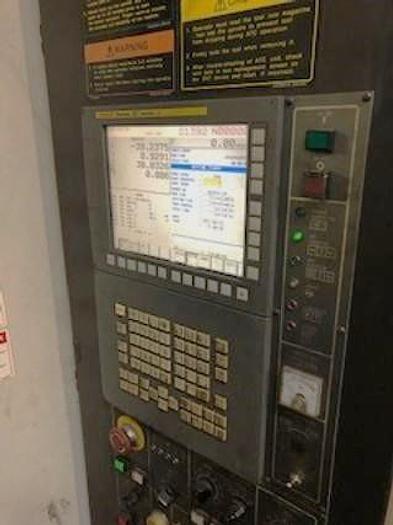

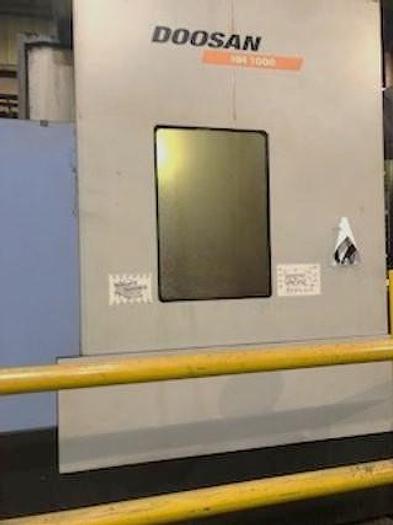

The 2009 Doosan HM-1000 is a CNC horizontal machining center equipped with a Fanuc 31iA control system. It features two pallets, each measuring 39.4" x 39.4" and capable of supporting up to 5,500 lbs. The machine's pallet indexing is efficient, providing 1-degree increments. Its substantial travel capacity includes an X-axis travel of 83" and Y and Z-axis travels of 49" each. The machine operates with a #50 spindle taper and can achieve speeds up to 6,000 RPM, powered by a 35 HP spindle motor. It is outfitted with a 90-station automatic tool changer, ensuring high productivity for complex tasks. The Doosan HM-1000, weighing 60,000 lbs, extends over dimensions of 16.5' x 30' x 153", indicating its robust construction suited for demanding industrial applications. This machine is ideal for operations requiring precision and efficiency in large-scale machining, providing reliable performance with substantial capacity and flexibility.
