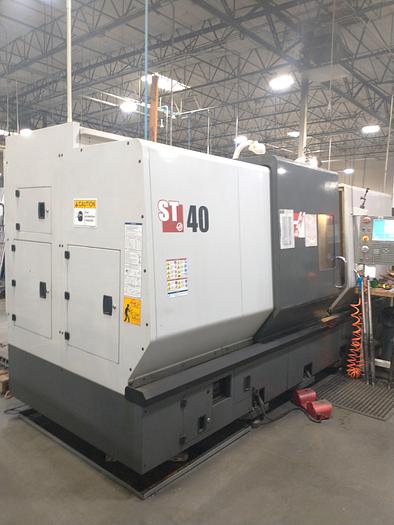

2012 Haas ST-40
No longer available
2012 Haas ST-40
$75,000 (USD)
Location:California
Description
Collet Chuck
Tool Presetter Chip Conveyor - Belt Style

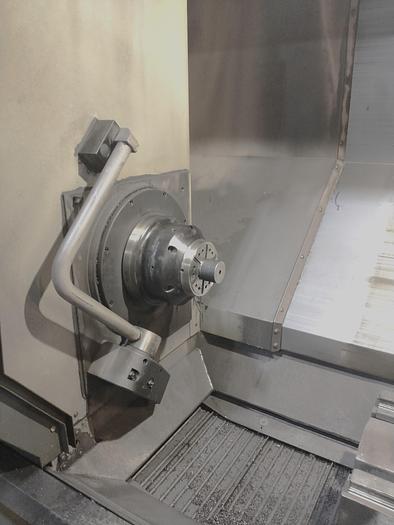

High Intensity Lighting Fully Programmable Tailstock Remote Jog Handle
Intuitive Programming System USB Port Interface RS 232 Port Interface Rigid Tapping 15" Color LCD Monitor All Available Manuals

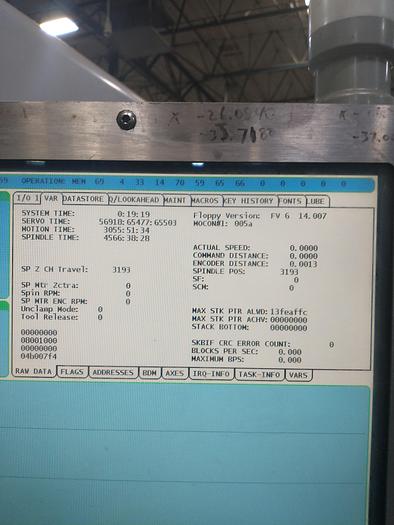

**Motion Hours 3,055**
**Spindle Hours 4,566**
Specifications
| Manufacturer | Haas |
| Model | ST-40 |
| Year | 2014 |
| Condition | Used |
| Stock Number | 119014 |
| Control | Haas CNC Control |
| Chuck Size | To Be Determined |
| Maximum Swing | 40" |
| Maximum Swing Over Cross Slide | 25.5" |
| Distance Between Centers | 44" |
| X-Axis Travel | 17" |
| Z-Axis Travel | 44" |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-8" / 4.62" / 4" |
| Spindle Speed | 2,400 RPM |
| Spindle Motor | 40 HP |
| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates | 710 IPM |
| Tailstock Center | #5 MT |
| Machine Dimensions LxWxH | 150"x77"x74" |
| Machine Weight | 27,000 lbs |
