2019 Mazak Nexus QTN 450-II/2000
No longer available
2019 Mazak Nexus QTN 450-II/2000
Location:South Korea
Description

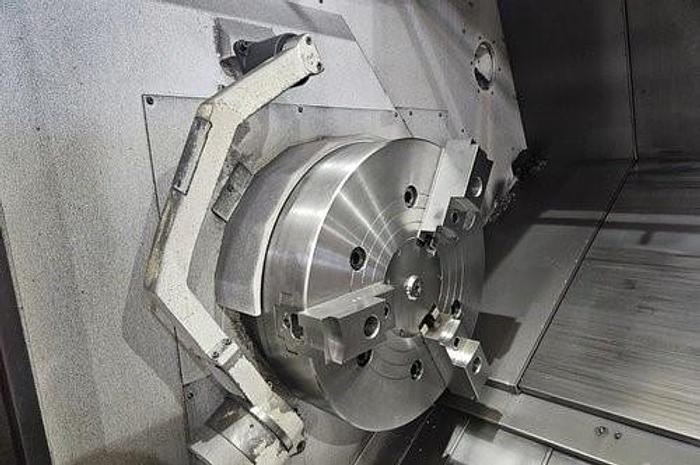

21" 3 Jaw Hydraulic Chuck

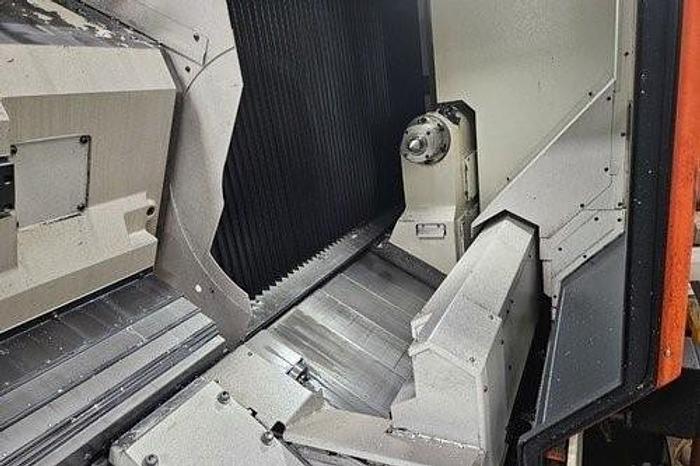

Side Exit Chip Conveyor Automatic Tool Eye Programmable Tailstock
SMW Model K3-MSW Programmable Hydraulic Steady Rest for 2.5" - 9.25" Capacity
EIA/ISO Input Function
EIA Helical & Pattern Cycles
EIA 3D Compensation
Coordinate Rotation & Scaling
Tilted Work Plane
Pitch Error Compensation
Threading
Inverse Time
Polar Coordinate Input
Spiral Interpolation
External Data Input/Output
Comparison Stop 12.1" Color LCD USB Interface (2 Ports) LAN Port Interface
RS 232 Port Interface User Macro Multi-Tap Transformer Tool Path Storage Windows XP Operation System All Available Manuals All Available Tooling
**Machine is located in South Korea**
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 450-II/2000 |
| Year | 2019 |
| Condition | Used |
| Control | Mazatrol Smooth G Control |
| Chuck Size | 21" 3-Jaw Hydraulic Chuck |
| Maximum Swing | 33.268" |
| Maximum Turning Diameter | 22.835" |
| Maximum Turning Length | 83.5" |
| Maximum Bar Capacity | 4.9" |
| X-Axis Travel | 13.37" |
| Z-Axis Travel | 83.5" |
| Spindle Nose / Spindle Bore | A2-11" / 5.3" |
| Spindle Speeds | 2,000 RPM - Geared |
| Spindle Motor | 50 HP |
| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates | 1181 IPM / 1299 IPM |
| Tailstock Body Travel / Center | 72.5" / MT #5 |
| Machine Dimensions | not available |
| Machine Weight | 25,910 lbs. |
