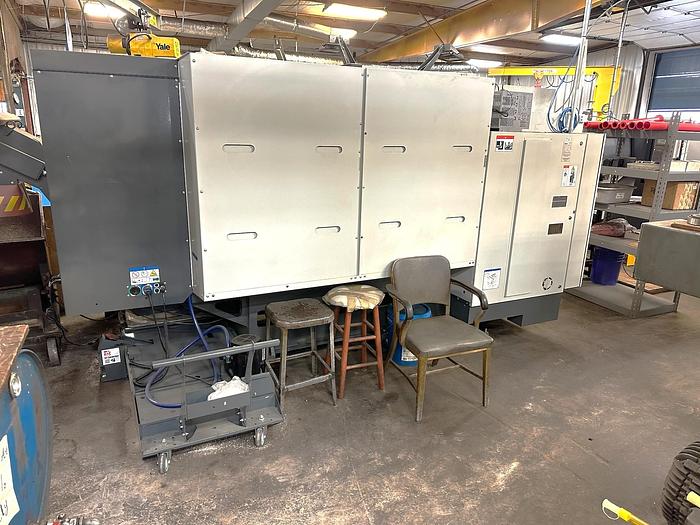

2022 Haas ST-35 2 Axis CNC Turning Center - 4" Bar Capacity
Featured
No longer available

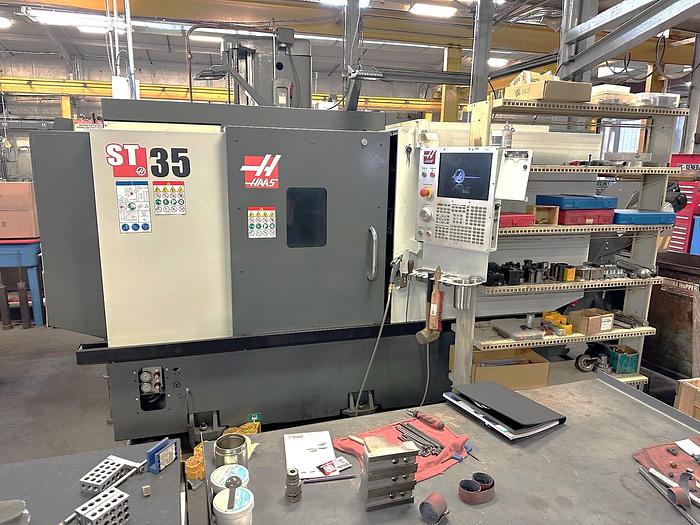

2022 Haas ST-35 2 Axis CNC Turning Center - 4" Bar Capacity
Location:Texas
Description
4" Bar Capacity

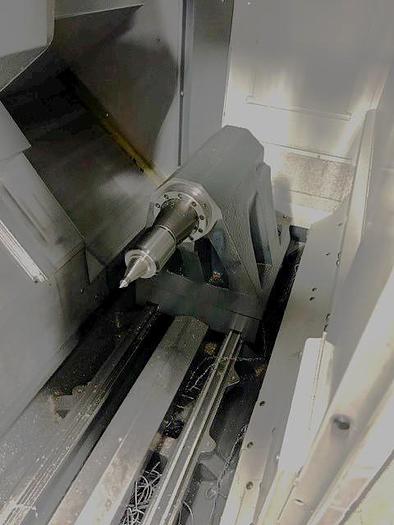

Programmable Tailstock

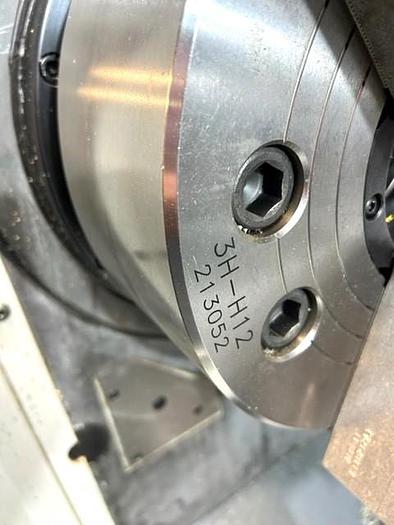

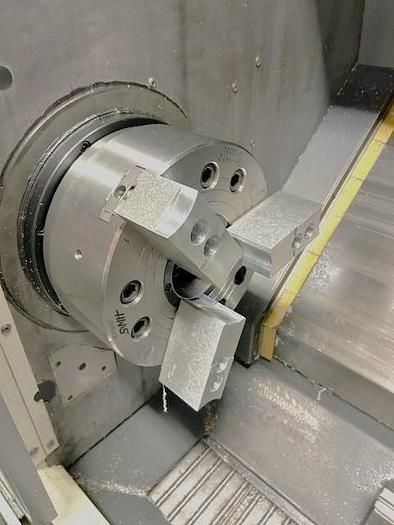

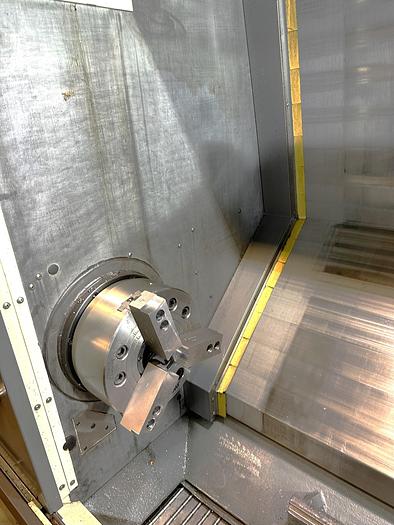

12" 3 Jaw Hydraulic Chuck
Chip Conveyor
Chip Tray Filter Kit
High Intensity Lighting
Coolant Tank Oil Skimmer Kit
55 Gallon Coolant Tank
Rigid Tapping
Visual Part Programming System- Conversational
User Definable Macros
Ethernet Interface
WiFi Connection for Haas Control
USB Port Interface
RS 232 Port Interface
1 GB Program Memory
Early Power Failure Detection Module
Haas Connect: Remote Monitoring
Haas Drop

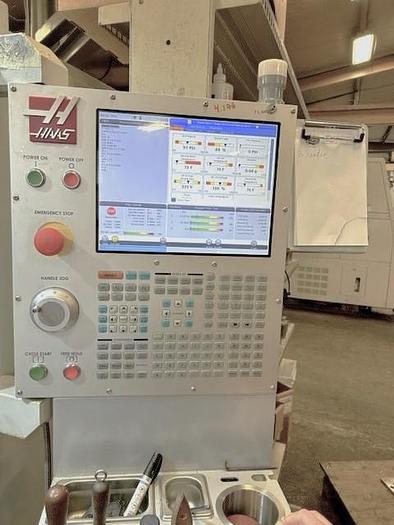

15" Color LCD Monitor
Wired 220V Electrics

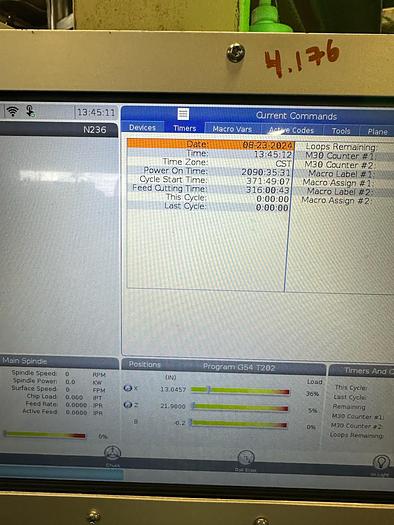

**ONLY 2,090 Power ON HOURS**
**ONLY 371 Cycle Start Hours**
**ONLY 316 Feed Cutting Hours**
**Manufactured New in February of 2022**
**Price out new at $109,170 as equipped, $98,253 at current discount pricing**
Specifications
| Manufacturer | Haas |
| Model | ST-35 |
| Year | 2022 |
| Condition | Used |
| Stock Number | 119011 |
| Chuck Size | 12" 3 Jaw Hydraulic |
| Maximum Swing | 31.75" |
| Maximum Turning Diameter | 21" |
| Maximum Machining Length | 26" |
| Distance Between Centers | 32.5" |
| Maximum Bar Capacity | 4" |
| X-Axis Travel | 9.4" |
| Z-Axis Travel | 32.5" |
| Spindle Nose / Spindle Bore | A2-8" / 4.62" |
| Spindle Speeds | 3,200 RPM |
| Spindle Motor | 40 HP |

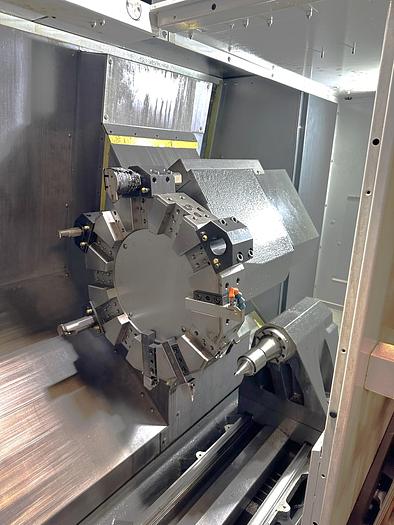

| Number of Turret Positions | 12 Station Bolt on Type |
| Rapid Traverse Rates | 945 IPM |
| Tailstock Taper | MT #4 |
| Machine Dimensions | 156" x 64" x 90" |
| Machine Weight | 14,300 lbs. |
