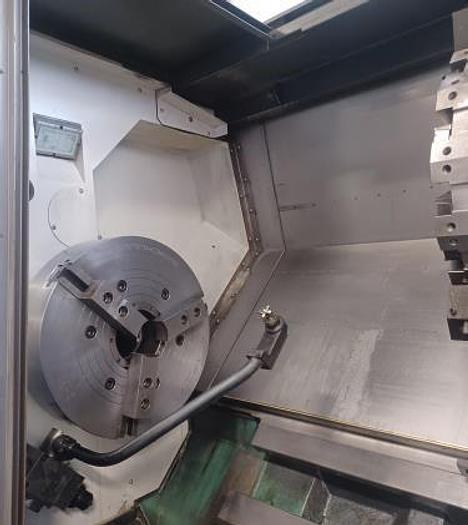

2017 Doosan Puma 5100LB
2017 Doosan Puma 5100LB
$169,500 (USD)
California
orCall (863) 439-6066
Description
Chip Conveyor 24" Samchully 3 Jaw Hydraulic Chuck
Steady Rest Provision Programmable Tailstock
Tool Presetter 2 Speed Gearbox
Card Interface RS 232 Port Interface Coolant System with Tank & Pump
Boxed Way Construction on Slant Bed All Available Tooling All Available Manuals
**ONLY 5,317 Power On Hours**
**ONLY 1,116 Spindle Run Hours**
Specifications
| Manufacturer | Doosan |
| Model | Puma 5100LB |
| Year | 2017 |
| Condition | Used |
| Stock Number | 119010 |

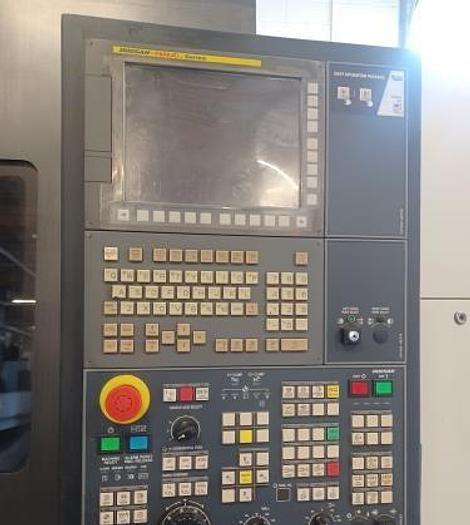

| Control | Fanuc i Series Control |

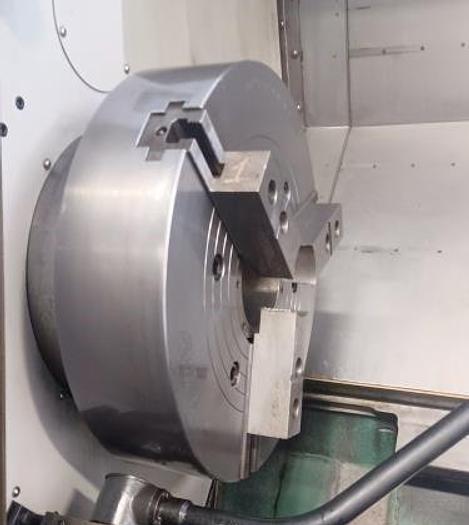

| Chuck Size | 24" Hydraulic Chuck |
| Maximum Swing | 35.4" |
| Maximum Turning Diameter | 26" |
| Maximum Turning Length | 82" |
| Maximum Bar Capacity | 6.5" |
| X-Axis Travel | 14.3" |
| Z-Axis Travel | 84.8" |
| Spindle Nose / Spindle Bore | A2-15" / 7.1" |
| Spindle Speeds | 1 - 1,500 RPM with Gearbox |
| Spindle Motor | 60 HP |

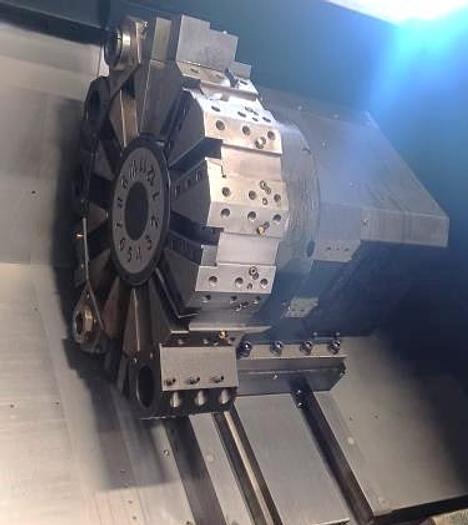

| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates X/Z | 630 IPM / 787 IPM |
| Tailstock Quill Diameter / Center | 4.7" / MT #5 |
| Tailstock Quill Travel | 4.7" |
| Machine Dimensions | 231.5" x 89.5" x 90" |
| Machine Weight | 26,560 lbs. |
