2015 Haas VM-2
2015 Haas VM-2
$69,500 (USD)
North Carolina
Description

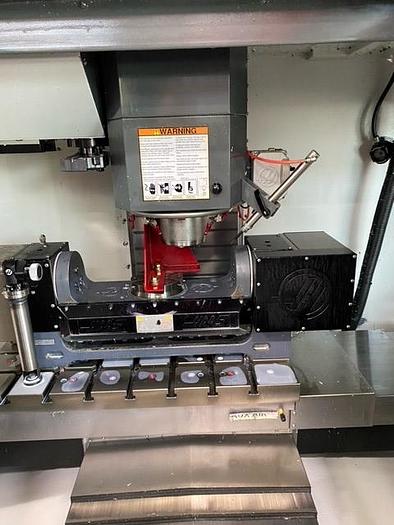

4th / 5th Axis Drive
WIPS Haas Wireless Probing Tool & Part Probing Renishaw
Thru the Spindle Coolant 300 psi
Programmable Coolant Nozzle
Remote Jog Handle
Rigid Tapping
Automatic Air Gun
Table Auxiliary Air Supply
55 Gallon Coolant Tank
Auxiliary Coolant Filter
Coolant Tank Oil Skimmer
Ethernet
RS 232C Port Interface for DNC Operation
Expanded Memory
High-Intensity Lighting
Second Home Position
Intuitive Programming System
Multi-Auger Chip Conveyor
Notebook Computer Shelf
Early Power Failure Detection Module
High-Speed Look-Ahead Control
Spindle Orientation
Tool Tray 40 Taper
User Definable Macros
Coordinate Rotation & Scaling
Front Table
Wired 360/480V
Internal High Voltage Transformer
**Mold Machine**
**TR160 Sigma 5 Trunnion Table for Additional $17k**
Specifications
| Manufacturer | Haas |
| Model | VM-2 |
| Year | 2015 |
| Condition | Used |
| Stock Number | 119008 |
| Table size | 36" x 18" |
| Table load capacity | 3,500 lbs |
| X-axis travel | 30" |
| Y-axis travel | 20" |
| Z-axis travel | 20" |
| Spindle taper | CT 40 |
| Spindle speed | 12,000 RPM |
| Spindle motor 30 min. / cont. | 30 HP |
| Tool magazine capacity-side mount | 24 + 1 Position ATC |
| Tool change time | 3.6 seconds |
| Max. tool diameter / length | 5" / 11" |
| Rapid traverse rates | 710 IPM |
| Machine dimensions lxwxh | 88"x92"x104" |
| Machine weight | 7,900 lbs. |
