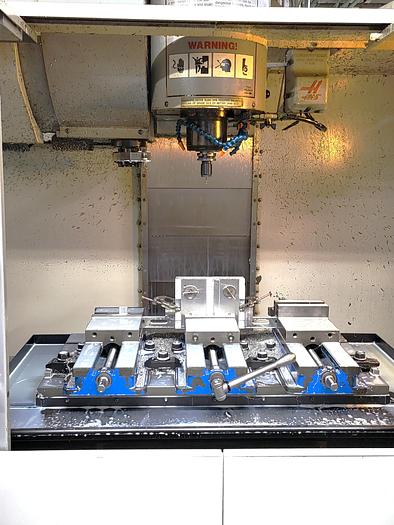

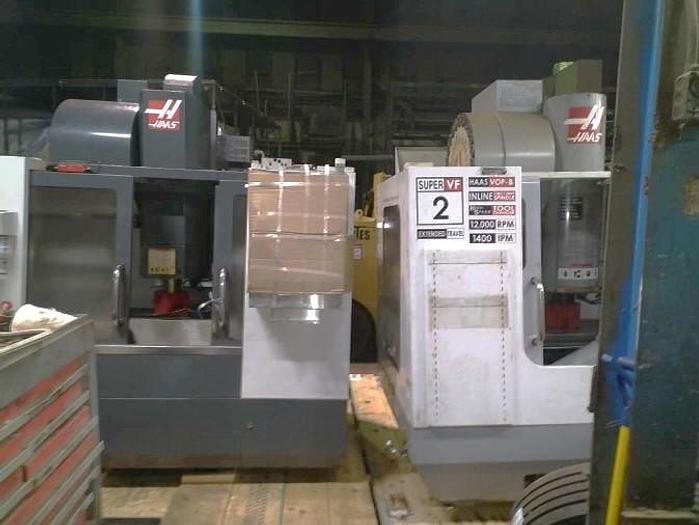

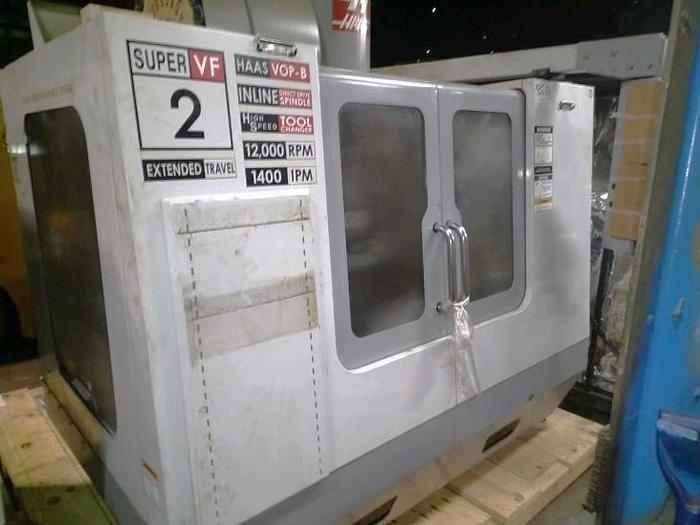

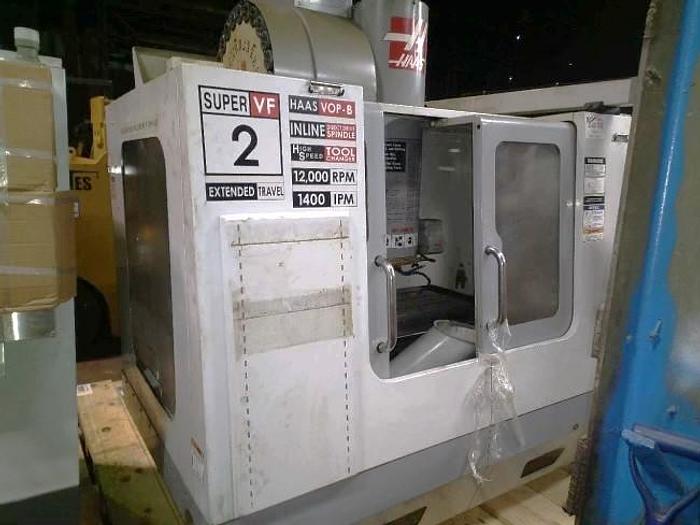

2006 Haas VF2SS YT

No longer available
2006 Haas VF2SS YT
$26,950 (USD)
Location:New York, NY
Description
4th Axis Drive & Wiring
24 Position Side Mounted Tool Changer
Extended Y Axis Travel of 20"
BT #40 Spindle Taper
Programmable Coolant Nozzle
Auger Style Chip Conveyor
1 MB Program Storage
Visual Quick Code
Spindle Orientation
Coordinate Rotation & Scaling
Complete Coolant System with Tank & Pump
3.5" Floppy Disk Interface
RS 232C Port Interface for DNC Operation
Wired 208/230V Electrics
All Available Manuals
**If you wanted to switch to CAT 40 tool arm on ATC it runs just under $1200 for the arm and roughly $1500 for travel and install cost depending on distance from Haas HFO**
Specifications
Manufacturer | Haas |
Model | VF2SS YT |
Year | 2006 |
Condition | Used |
Stock Number | 119003 |
Pallet Size / Number of Pallets | 36" x 18" |
Max table load | 1,500 lbs |
X axis travel | 30" |
Y axis travel | 20" |
Z axis travel | 20" |
Spindle taper | BT #40 |
Spindle speed | 12,000 RPM |
Spindle motor | 30 HP - Direct Drive |
Spindle nose to table top | 4" - 24" |
Number of tool positions | 24 + 1 Position Side Mount |
Max tool weight | 12 lbs. |
Rapid feed rate (x,y,z) | 1,400 IPM |
Cutting feed rate | 0.1 - 833 IPM |
Machine dimensions | 106" x 101" x 101 " |
Machine weight (approximately) | 9,500 lbs. |
