2011 Haas VF2SS
2011 Haas VF2SS
Contact us for price
New York, NY
orCall (863) 439-6066
Description
Programmable Coolant Nozzle
Auger Style Chip Conveyor
BT 40 Spindle Taper
Rigid Tapping
USB Port Interface
RS 232C Port Interface for DNC Operation
Coolant Tank with Pump
Wired 195-260V Electrics
All Available Manuals
***If you wanted to switch to a CAT 40 tool arm on the toolchanger, it runs just under $1200 for the arm and roughly $1500 for travel and install cost depending on distance from Haas HFO**
**14,357 Run Time (power on) Hours**
**Approximately 5,000 Spindle Cut Hours**
**Manufactured New in September of 2011**

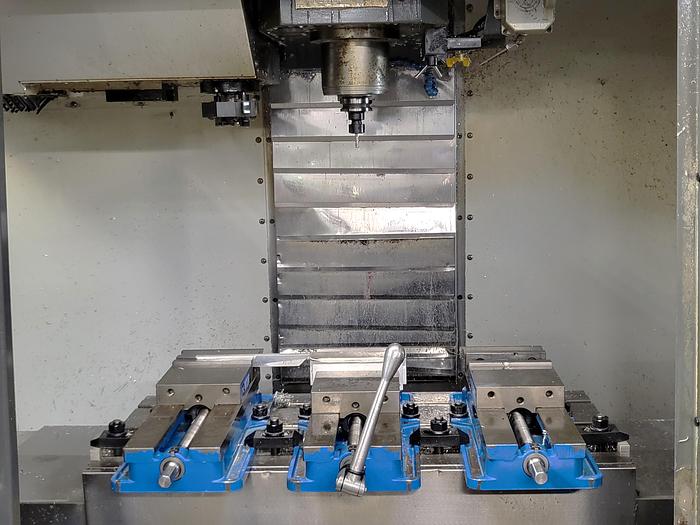

**Recently removed from shop. Vices in photos are NOT included**
Specifications
| Manufacturer | Haas |
| Model | VF2SS |
| Year | 2011 |
| Condition | Used |
| Stock Number | 119002 |
| Table size | 36" x 14" |
| Max table load | 1,500 lbs |
| X axis travel | 30" |
| Y axis travel | 16" |
| Z axis travel | 20" |
| Spindle taper | BT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP - Direct Drive |
| Spindle nose to table top | 4" - 24" |
| Number of tool positions | 24 + 1 Position Side Mount |
| Max tool weight | 12 lbs. |
| Rapid feed rate (x,y,z) | 1,400 IPM |
| Cutting feed rate | 0.1 - 833 IPM |
| Machine dimensions | 88" x 94" x 102"H |
| Machine weight (approximately) | 9,000 lbs. |
