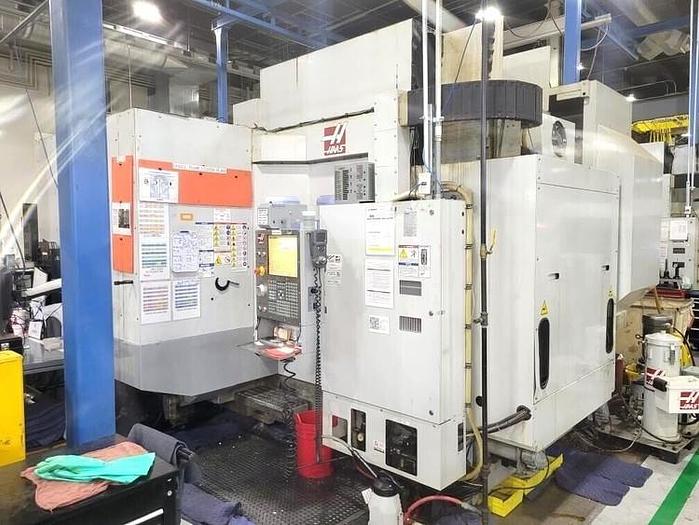

2009 Haas EC-1600ZT
No longer available
2009 Haas EC-1600ZT
$139,950 (USD)
Location:Oklahoma
Description
Fully 4th Built in Rotary Table
10,000 RPM Spindle
Coolant Through the Spindle - 1000 PSI
Wireless Intuitive Probing System - Renishaw
Coordinate Rotation & Scaling
Spindle Orientation
User Definable Macros
Auxiliary Coolant Filter System
CNC Cabinet Cooler
(8) Spare M Functions

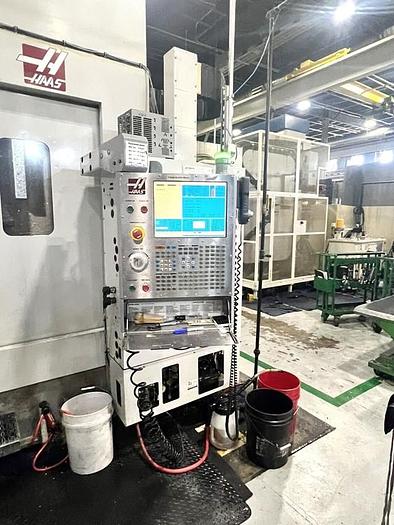

Remote Jog Handle w/ Color LCD
Dual Augers
15" Color LCD Monitor
USB Port Interface
RS 232 Port Interface
Rigid Tapping
Memory Lock Key Switch

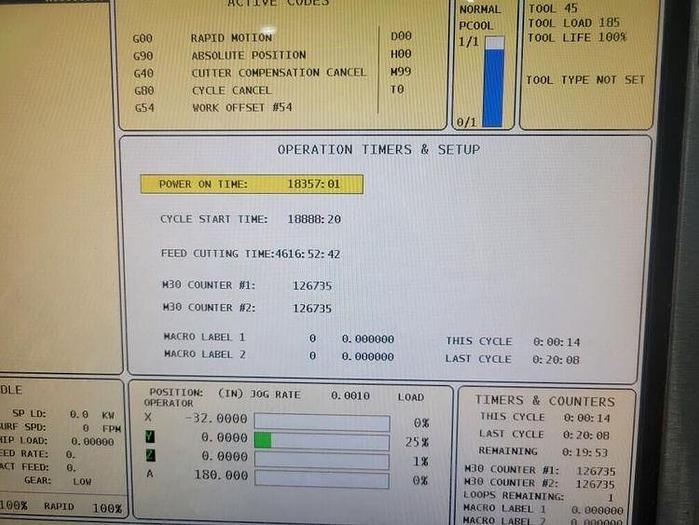

**Power On Time 18,357 Hours**
**Feed Cut Hours 4,616**
Specifications
| Manufacturer | Haas |
| Model | EC-1600YZT |
| Year | 2009 |
| Condition | Used |
| Stock Number | 118999 |
| Table Size | 64" x 36" |
| Maximum Table Load | 10,000 lbs |
| Built In Platter Diameter | 30" Diameter |
| B-Axis Table Rotation | .001 Degree Increment |
| X-axis travel | 64" |
| Y-Axis Travel | 50" |
| Z-Axis Travel | 40" |
| Spindle Taper | CAT 50 |
| Spindle Speed | 10,000 RPM |
| Spindle Motor | 30 HP 2-Speed Geared Head |
| Tool Magazine Capacity | 50 Position Tool Changer |
| Rapid Traverse Rates | 600 IPM |
| Maximum Tool Diameter / Length / Weight | 10" / 20" / 30 lbs |
| Machine Dimensions LxWxH | 190"x144"x135" |
| Machine Weight | 35,000 lbs |
