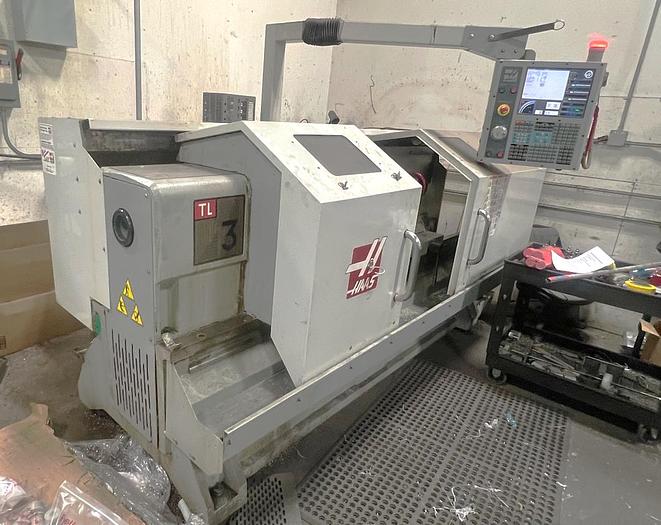

2007 Haas TL-3
No longer available
2007 Haas TL-3
$27,500 (USD)
Location:Illinois
Description

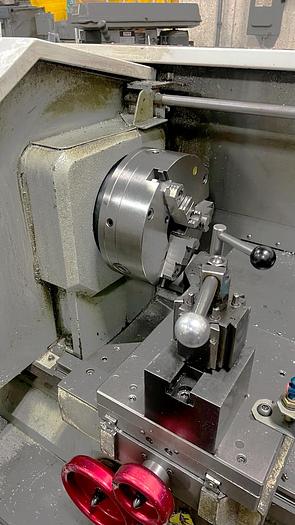

10" 3 Jaw Manual Chuck

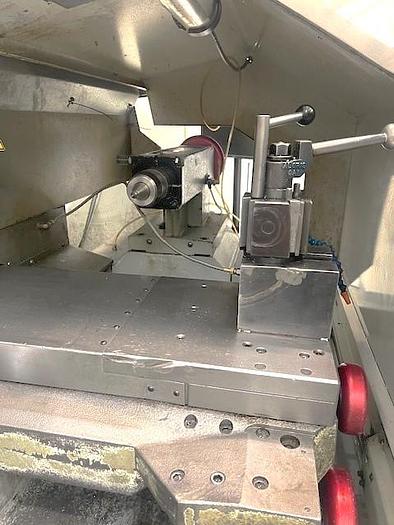

Tool Post

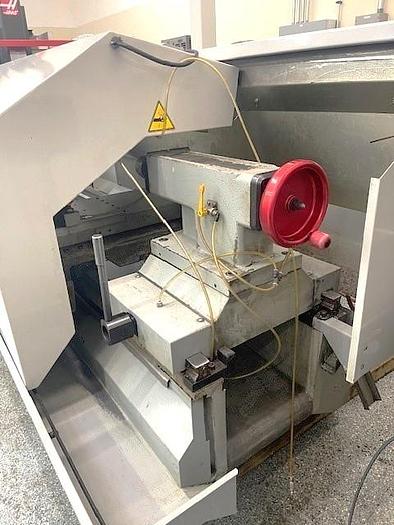

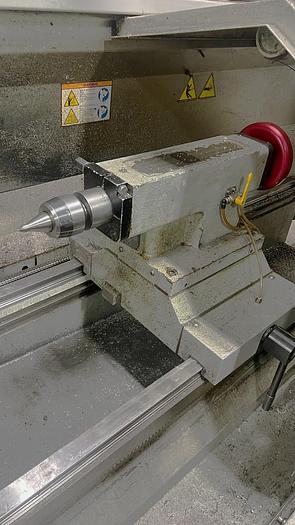

Tailstock

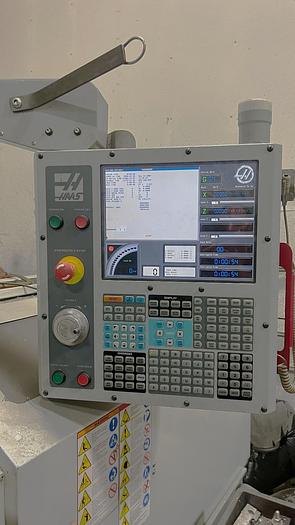

Haas Intuitive Programming System
Rigid Tapping
Manual Hand Wheels
Coolant Tank & Pump
USB Port Interface
RS 232 Port Interface
All Available Manuals
**Machine is in the process of having a new spindle drive installed and will be available shortly**
Specifications
| Manufacturer | Haas |
| Model | TL-3 |
| Year | 2007 |
| Condition | Used |
| Stock Number | 118997 |
| Machine Control | Haas CNC Control |
| Chuck Size | 10" 3-Jaw Manual Chuck |
| Maximum Swing | 20" |
| Maximum Swing Over Cross Slide | 13" |
| Maximum Machining Diameter | 20" |
| Distance Between Centers | 60" |
| X-axis travel | 12" |
| Z-Axis Travel | 60" |
| Spindle Speeds | 0 - 1,800 RPM |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 3.5" / 3" |
| Spindle Motor | 18 HP |
| Number of Tool Positions | Tool Post |
| Rapid Traverse Rates X/Z | 75 IPM / 150 IPM |
| Tailstock Bore Taper | #5 MT |
| Machine Dimensions LxWxH | 123" x 77" x 87" |
| Machine Weight | 9,624 lbs |
