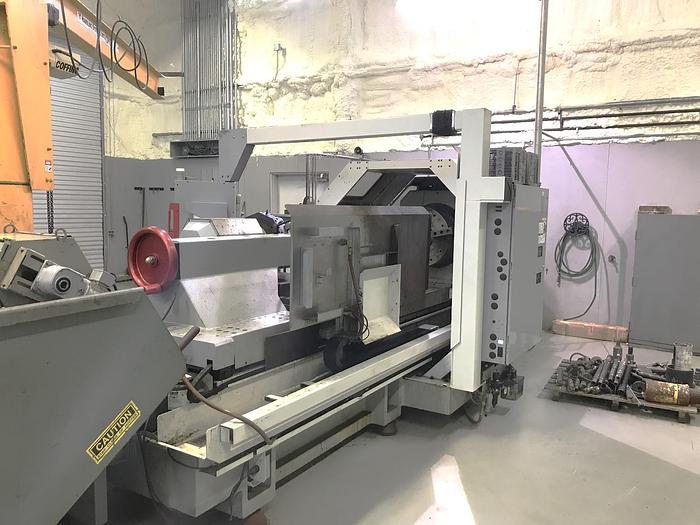

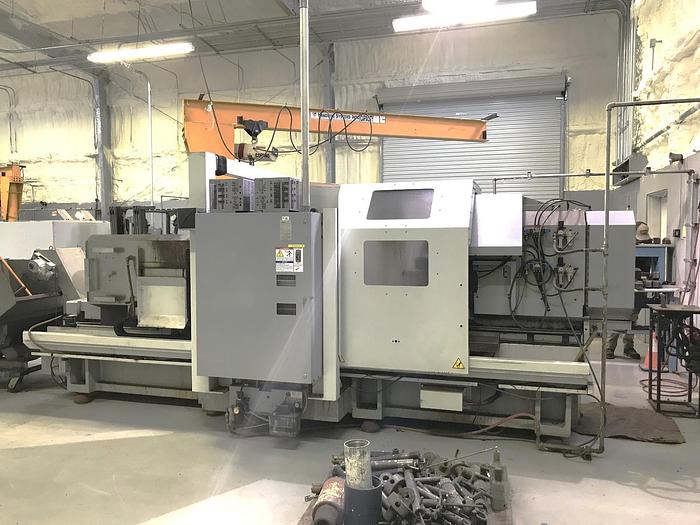

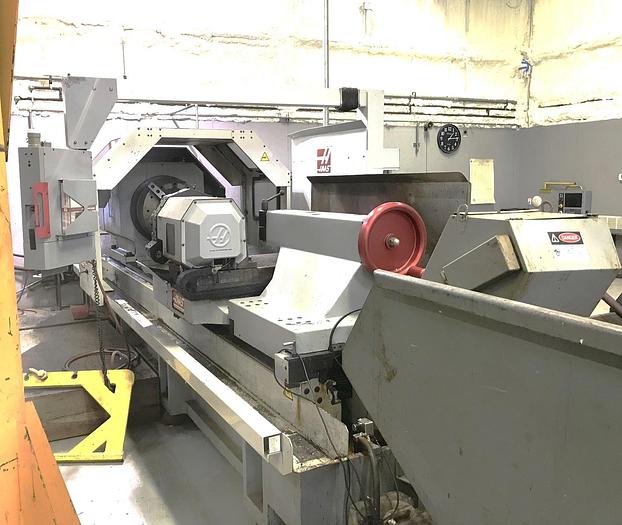

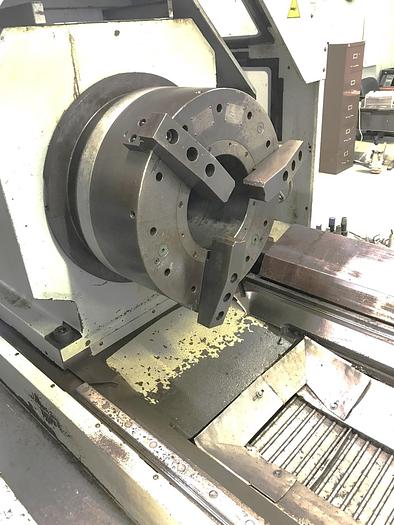

2008 Haas TL-4
No longer available
2008 Haas TL-4
Location:Texas
Description
10.8" Big Bore Spindle

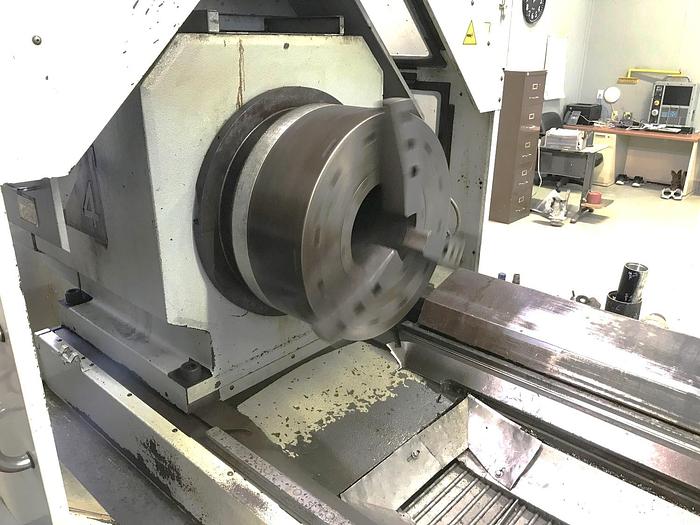

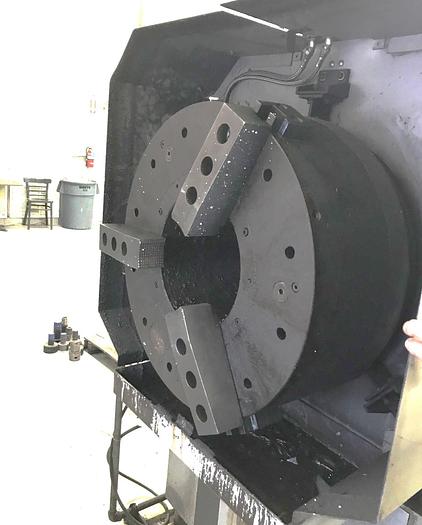

24" Front & Rear 3 Jaw ATS Air Chucks
Tailstock

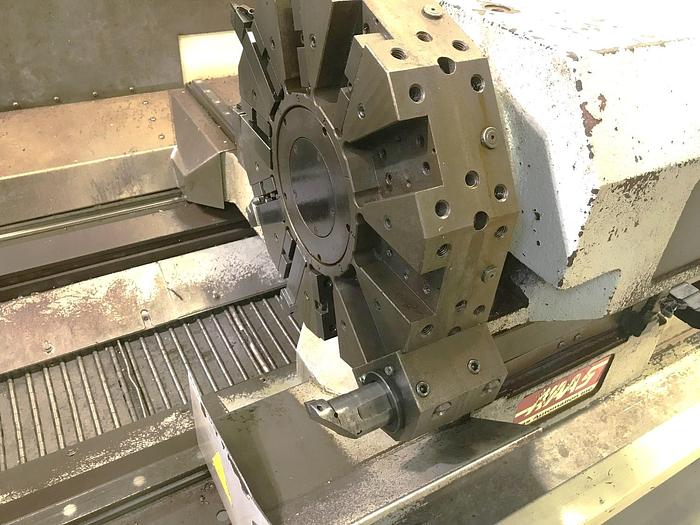

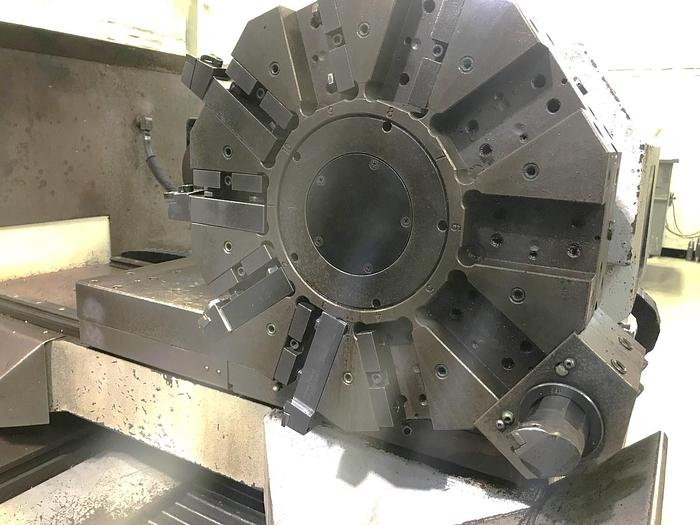

10 Station Turret Option
Chip Conveyor
2 Speed Gearbox
1 MB Programming Memory
15" LCD Color Monitor
RS 232 Port Interface
Remote Jog Handle
Intuitive Programming System
Spindle Orientation
Rigid Tapping
Work Light
Coolant System with Tank & Pump
Haas Manual
Some Tooling
Specifications
| Manufacturer | Haas |
| Model | TL-4 with 10 Station Turret & Air Chucks |
| Year | 2008 |
| Condition | Used |
| Stock Number | 118990 |

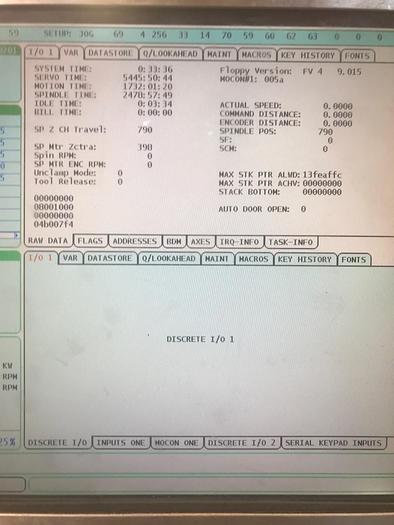

| Machine Control | Haas CNC Control |
| Chuck Size | 24" Front & Rear Air Chucks |
| Maximum Swing | 35" |
| Maximum Swing Over Cross Slide | 16" |
| Maximum Cutting Diameter | 35" |
| Distance Between Centers | 91" |
| X-Axis Travel | 18" |
| Z-Axis Travel | 80" |
| Spindle Speeds | 0 - 500 RPM |
| Spindle Nose / Spindle Bore | A1-20" / 10.81" |
| Spindle Motor | 55 hp |
| Number of Tool Positions | 10 Position Turret |
| Tailstock Bore Taper | #5 MT |
| Machine Dimensions LxWxH | 240"x102"x87" |
| Machine Weight | 29,380 lbs |
