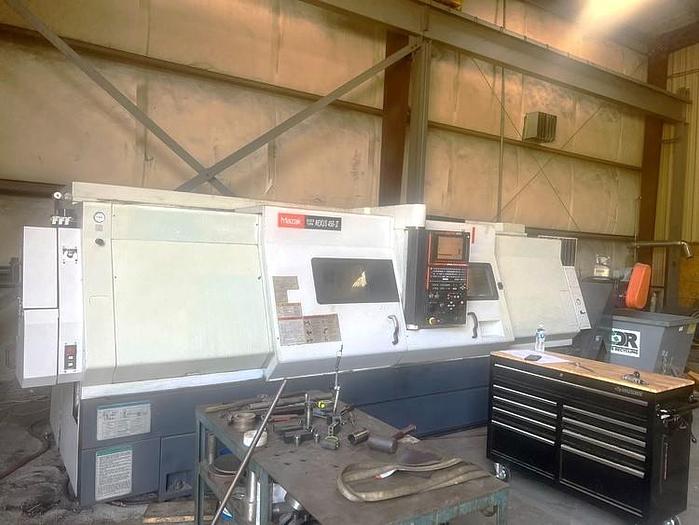

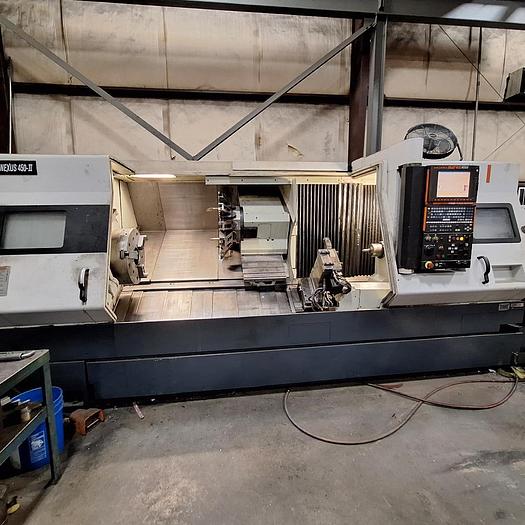

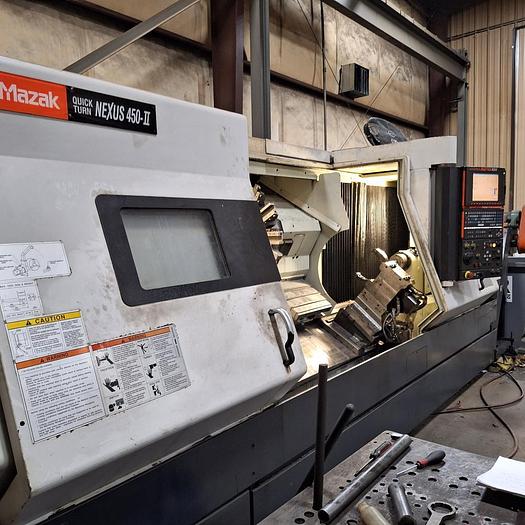

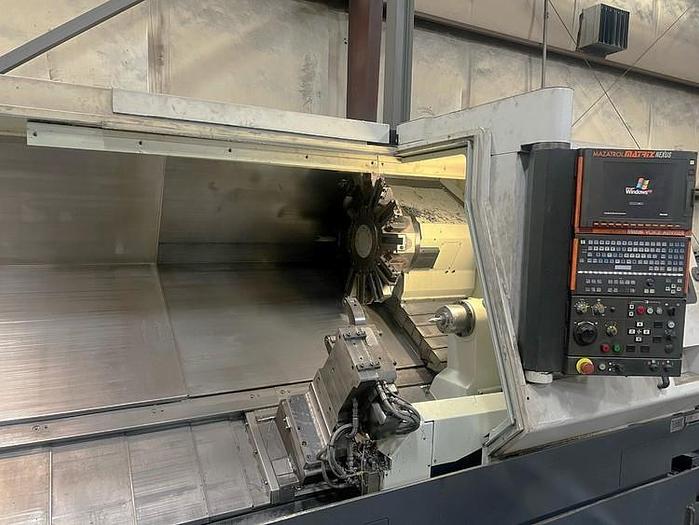

2006 Mazak Nexus QTN 450-II/2000
No longer available
2006 Mazak Nexus QTN 450-II/2000
Location:Tennessee
Description
Big Bore Spindle Option

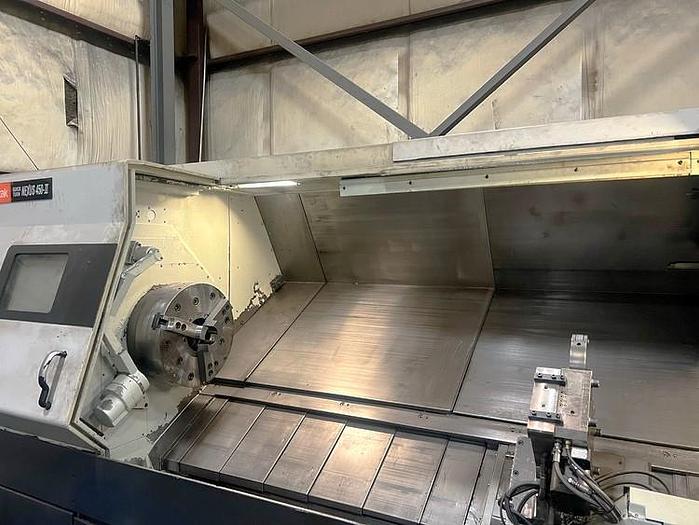

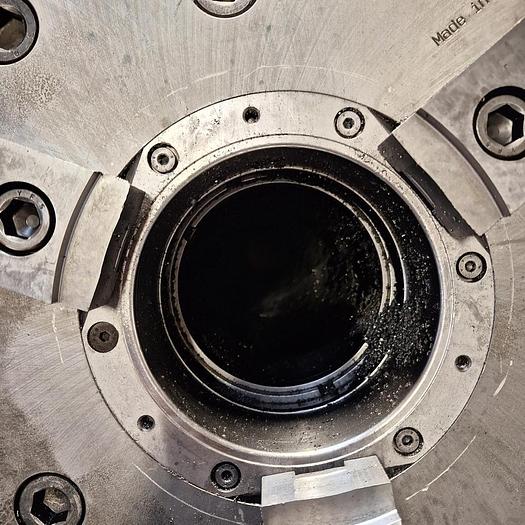

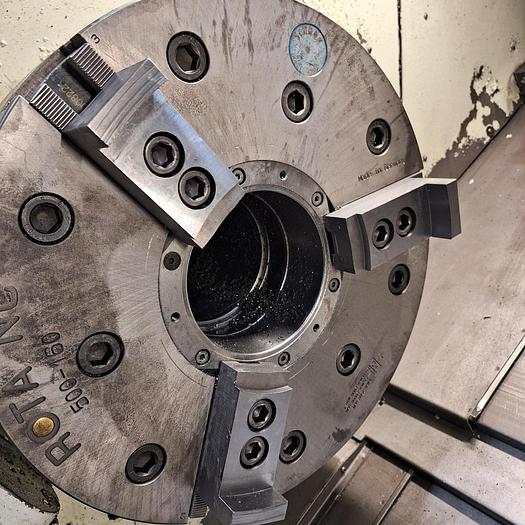

18" Schunk 3 Jaw Hydraulic Chuck with 6.0" Through Hole

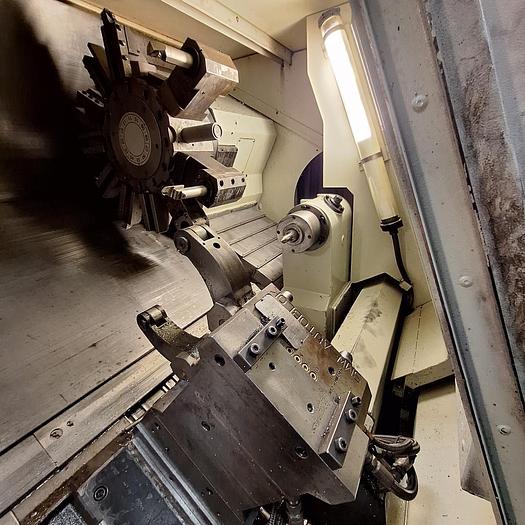

SMW Model SLU 3.2 Hydraulic Steady Rest with 3.9″-7.87″ Capacity
High Power Coolant (520W/ 59 PSI/ 16 GPM)
Side Exit Chip Conveyor Automatic Tool Eye Programmable Tailstock 12.1" Color LCD USB Interface (2 Ports) LAN Port Interface
RS 232 Port Interface User Macro Multi-Tap Transformer Tool Path Storage Windows XP Operation System All Available Manuals All Available Tooling
**Manufactured New in August of 2006**
**Auto Operation Hours 8,087**
**Auto Cut Hours 6,298**
**Total Cut Hours 5,729**
Specifications
Manufacturer | Mazak |
Model | Nexus QTN 450-II/2000 |
Year | 2006 |
Condition | Used |
Stock Number | 118981 |

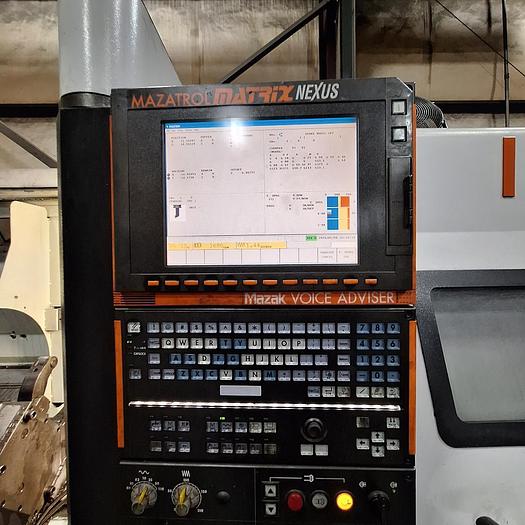

Control | Mazatrol Matrix Nexus |
Chuck Size | 18" 3 Jaw Hydraulic Chuck |
Maximum Swing | 33.268" |
Maximum Turning Diameter | 22.835" |
Maximum Turning Length | 80.3" |
Maximum Bar Capacity | 6.0" |
X-Axis Travel | 12.13" |
Z-Axis Travel | 82.13" |
Spindle Nose / Spindle Bore | A2-15" / 6.5" |
Spindle Speeds | 2,000 RPM - Geared |
Spindle Motor | 50 HP |
Number of Turret Positions | 12 Position Turret |
Rapid Traverse Rates | 1181 IPM |
Tailstock Body Travel / Center | 80.375" / MT #5 |
Machine Dimensions | 196"x90"x80" |
Machine Weight | 24,000 lbs. |
