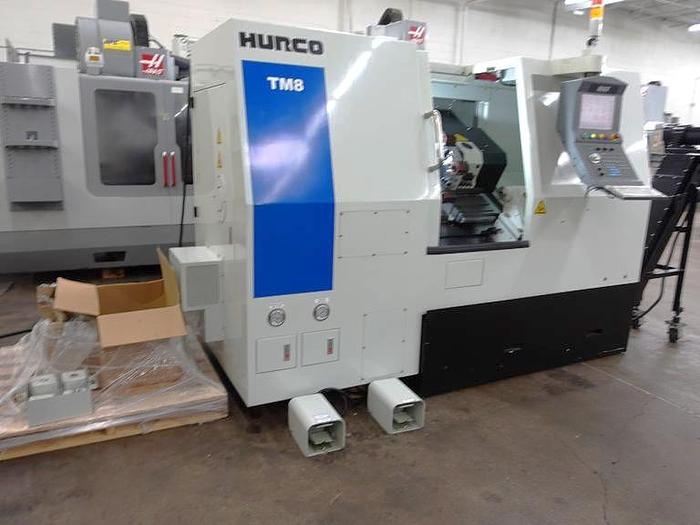

2012 Hurco TM-8

No longer available

2012 Hurco TM-8

$44,500 (USD)

Location:Minnesota

Description

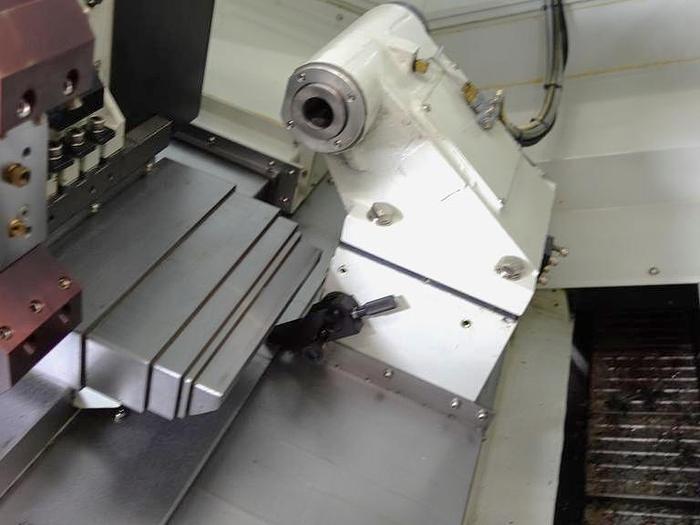

Tailstock with Hydraulic Quill

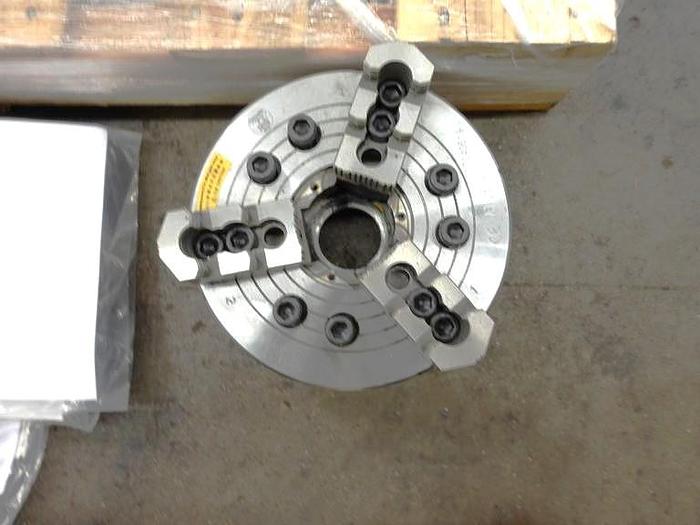

8" 3 Jaw Hydraulic Chuck

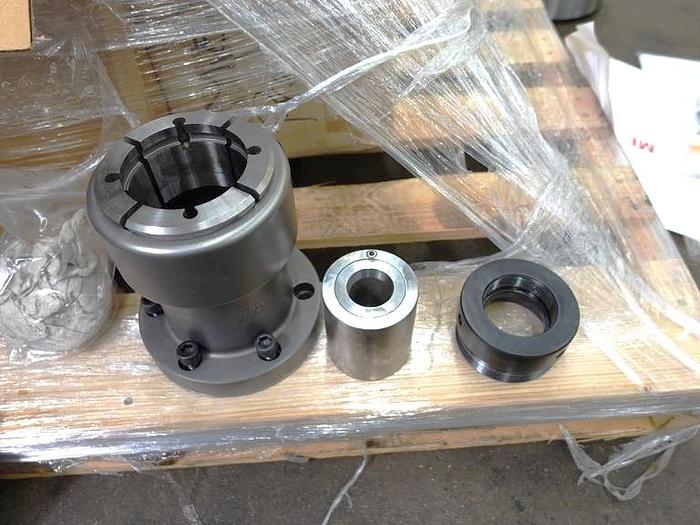

3J Collet Nose

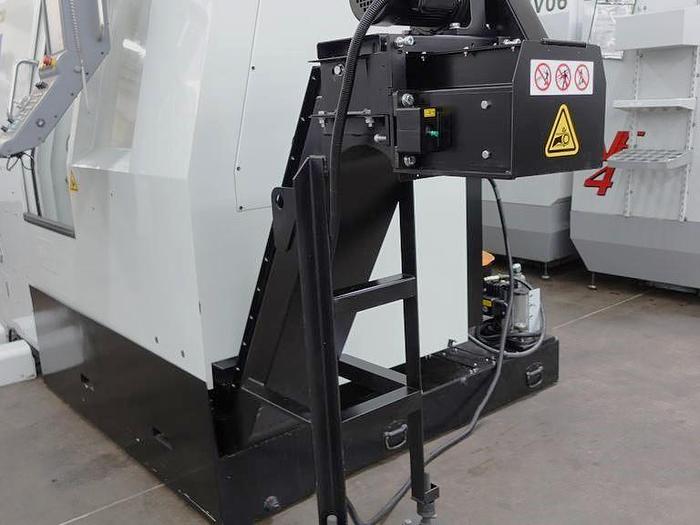

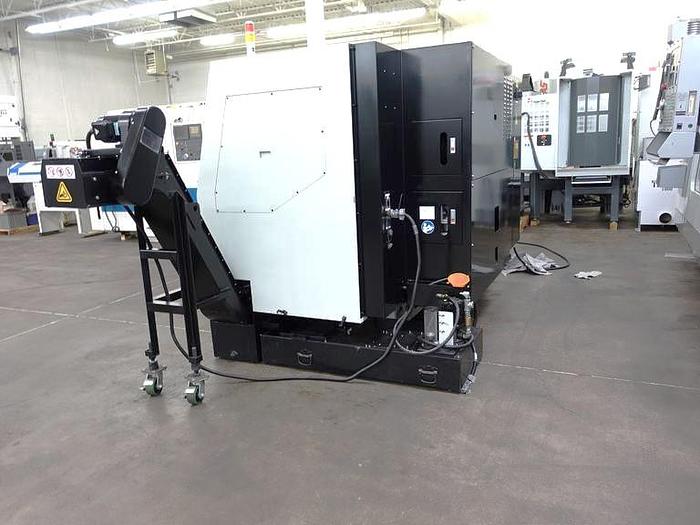

Chip Conveyor

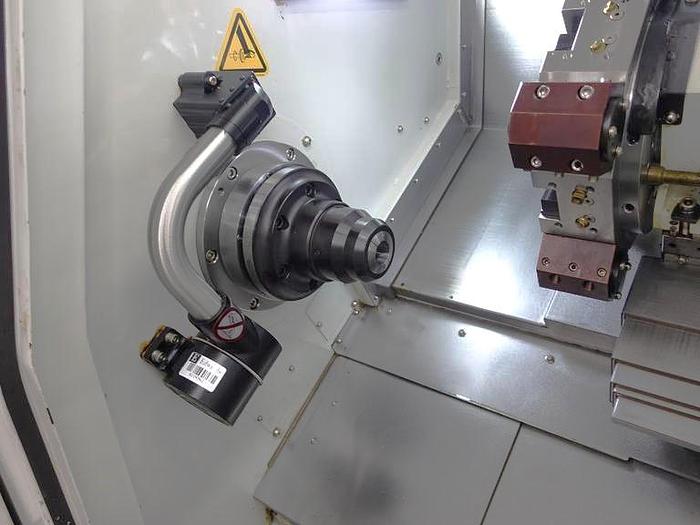

Tool Presetter

Rigid Tapping

3D Graphics

NC Productivity Package

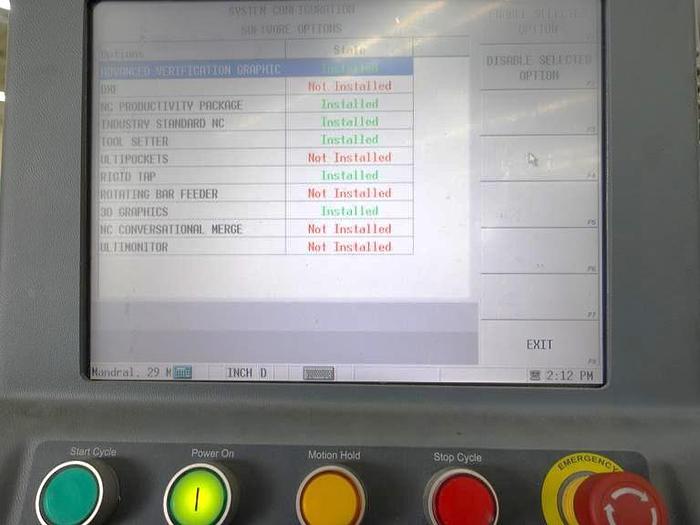

Touch Screen Control with Keyboard

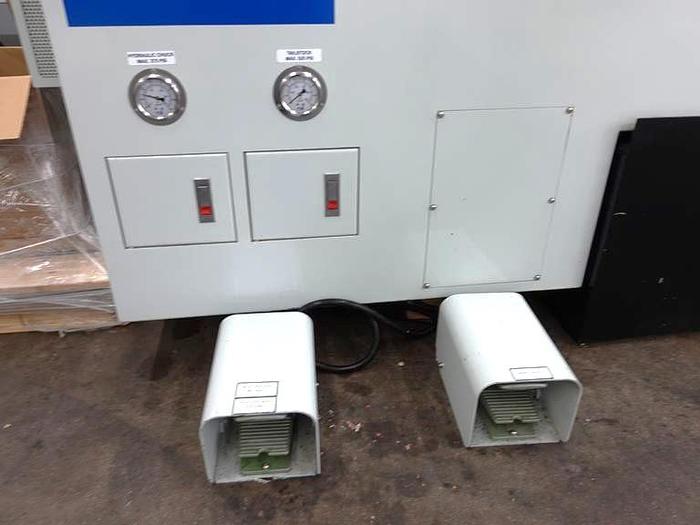

Remote Foot Pedal for Tailstock

Remote Foot Pedal for Chuck

Coolant System with Tank & Pump

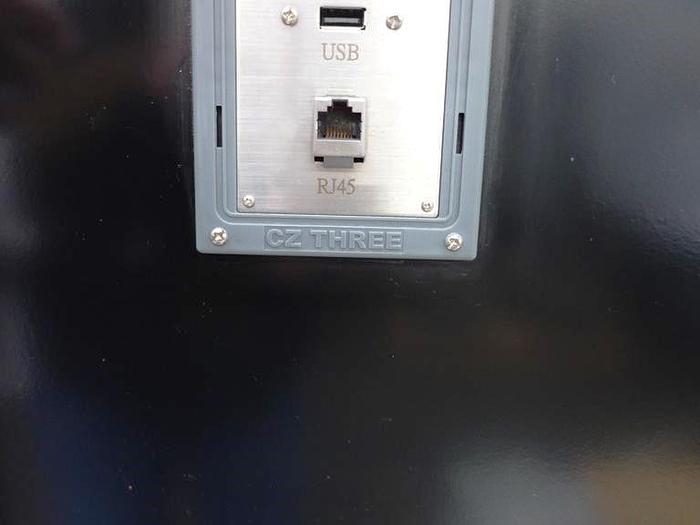

Ethernet Interface

USB Port Interface

RS 232 Port Interface

(5) Turret Boring Bar Holders w/ Assorted Sleeves

(5) Turning Tool Clamps

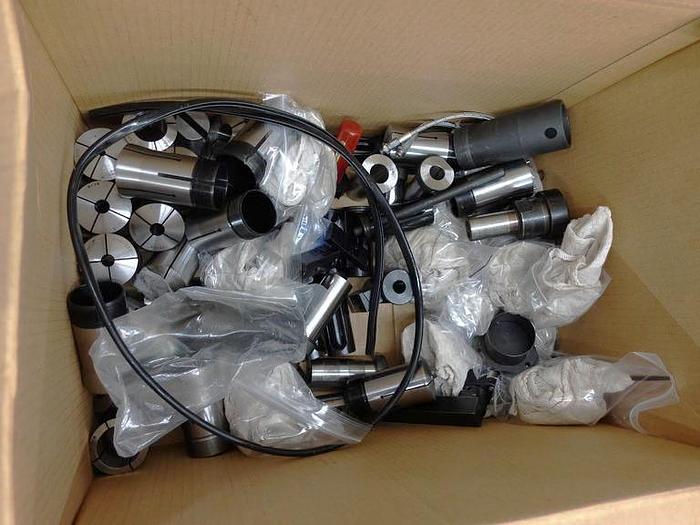

Assorted Collets

Hardinge S30 Master Collet with Assorted Pads

Recovery USB Memory Stick

Wired 230V Electrics

Show All

Specifications

ManufacturerHurco
ModelTM-8
Year2012
ConditionUsed
Stock Number118975

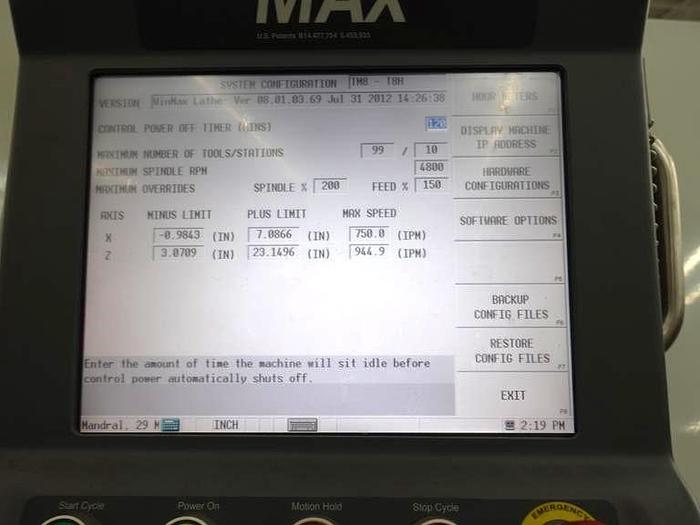

Machine ControlHurco WinMax Control
Chuck Size8" Hydraulic 3-Jaw Chuck
Maximum Swing21.6"
Maximum Turning Diameter12"
Maximum Machining Length19"
Distance Between Centers23"
Spindle Nose / Bore / Bar Capacity A2-6" / 2.44" / 2.0"
Spindle Motor20 HP
Spindle Speed4,800 RPM

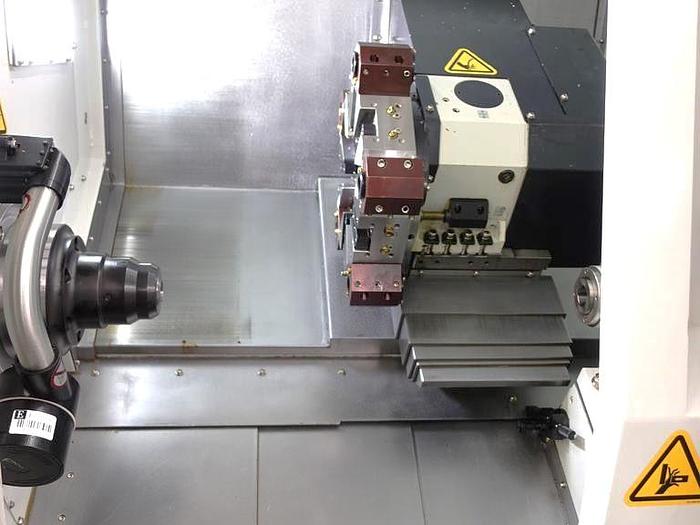

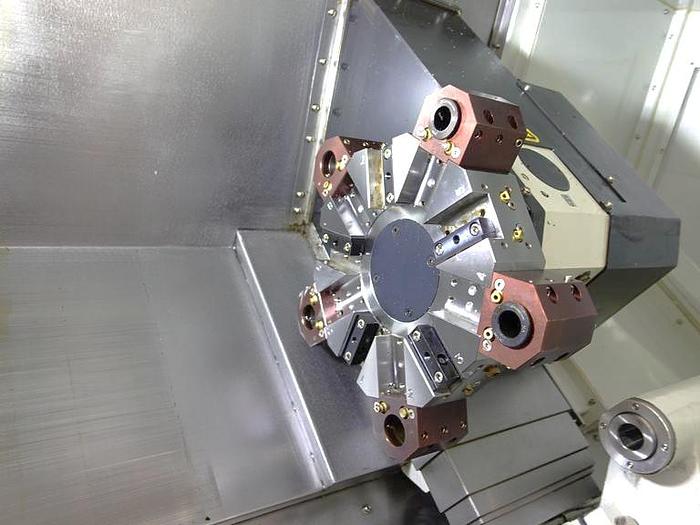

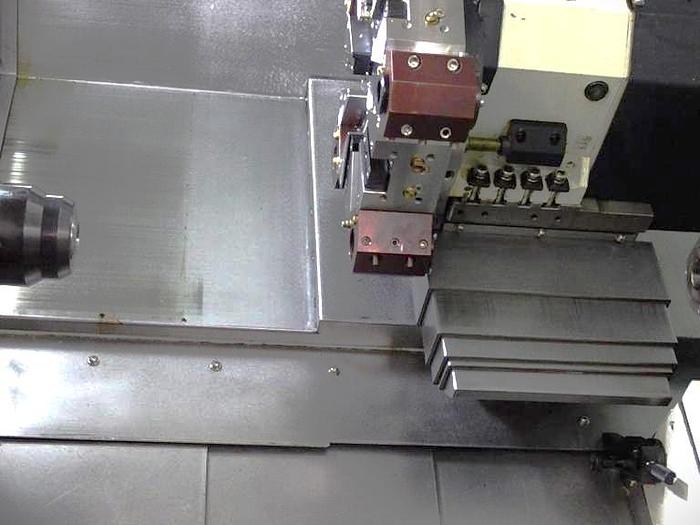

Number of Turret Positions10 Station Turret
Rapid Traverse Rates X/Z750 IPM / 945 IPM
Machine Dimensions LxWxH106" x 72" x 85"
Machine Weight10,000 LBS
