1995 Leblond-Makino A55
No longer available
1995 Leblond-Makino A55
$19,950 (USD)
Location:New Jersey
Description
2 Pallet Changer System 1 Degree Rotary Table
12,000 RPM Spindle 60 Position Tool Magazine
Through the Spindle Coolant Chip Conveyor Flood Coolant System Coolant Tank with Pump Rigid Tapping Spindle Chiller Unit RS 232 Port Interface
Machine 3 Color Status Condition Lights All Available Manuals
**Needs to be moved by end of September 2023, located in northeast based shop**
Specifications
| Manufacturer | Leblond-Makino |
| Model | A55 |
| Year | 1995 |
| Condition | Used |
| Stock Number | 118974 |

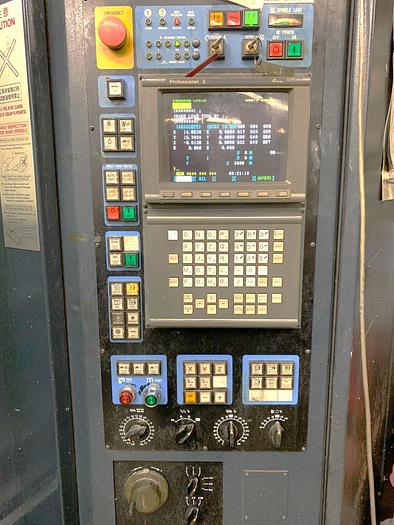

| Control | Makino Pro 3 Series Control |
| Pallet Size / Number of Pallets | 15.75" x 15.75" / 2 Pallet Changer |
| Maximum Weight on Table | 880 lbs. |
| Maximum Part Size D x H | 24.8" x 35.4" |
| Table Indexing | 1 Degree Rotary Table |
| X-axis travel | 22.05" |
| Y-Axis Travel | 22.05" |
| Z-Axis Travel | 22.05" |
| Spindle Nose | CAT #40 |
| Spindle Speeds | 12,000 RPM |
| Spindle Motor | 30 HP |
| Distance Spindle Nose to Table Top | 3.1" - 25.2" |
| Number of Tool Positions | 60 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 5.91" / 11.81" / 17.6 lbs. |
| Tool Change Time Chip to Chip | 2.3 seconds |
| Tool Change Time Tool to Tool | .9 second |
| Rapid Traverse Rates | 945 IPM |
| Cutting Feedrates | 315 IPM |
| Machine Dimensions LxWxH | 146" x 104" x 112.5" |
| Machine Weight | 18,900 lbs. |
