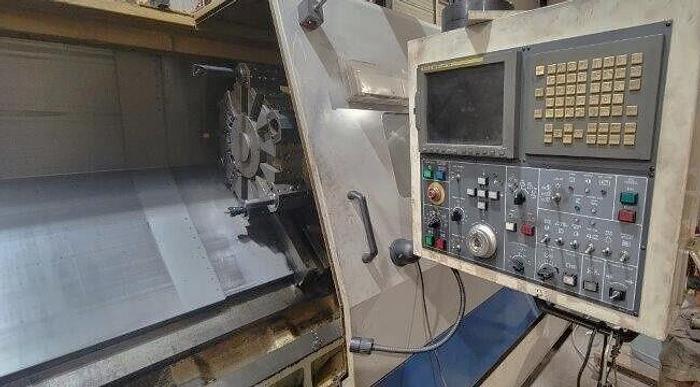

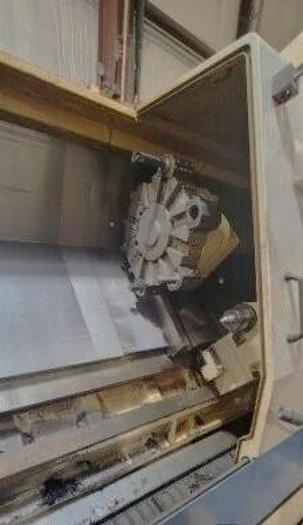

2007 Doosan Puma 400LC
No longer available
2007 Doosan Puma 400LC
$79,950 (USD)
Location:Texas
Description
Chip Conveyor
Steady Rest 18" 3 Jaw Hydraulic Chuck Programmable Tailstock
3.5" Floppy Disk Interface RS 232 Port Interface Coolant System with Tank & Pump
Boxed Way Construction on Slant Bed
Chuck Foot Pedal All Available Tooling All Available Manuals
Specifications
| Manufacturer | Nakamura Tome |
| Model | Puma 400LC |
| Year | 2007 |
| Condition | Used |
| Stock Number | 118972 |
| Control | Fanuc 21i-TB Control |
| Chuck Size | 18" 3 Jaw Hydraulic Chuck |
| Maximum Swing | 30.31" |
| Maximum Turning Diameter | 23.2" |
| Maximum Turning Length | 81.7" |
| Maximum Bar Capacity | 6.5" |
| X-Axis Travel | 14.25" |
| Z-Axis Travel | 84.84" |
| Spindle Nose / Spindle Bore | A2-15" / 7.1" |
| Spindle Speeds | 1 -1500 RPM |
| Spindle Motor | 50 HP |
| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates X/Z | 630 IPM / 790 IPM |
| Tailstock Quill Diameter / Center | 4.7" / MT #5 |
| Tailstock Quill Travel | 4.7" |
| Machine Dimensions | 201" x 94" x 89" |
| Machine Weight | 25,500 lbs. |
