2015 Okamoto Grind-X ACC 2040DX
![Used 2015 Okamoto Grind-X ACC 2040DX](https://i.machineryhost.com/a5771bce93e200c36f7cd9dfd0e5deaa/1a1a2b65f0b7d70f2dcd402a596e111a/large-used-2015-okamoto-grind-x-acc-2040-dx.jpg)
No longer available
2015 Okamoto Grind-X ACC 2040DX
Location:Wisconsin
Description

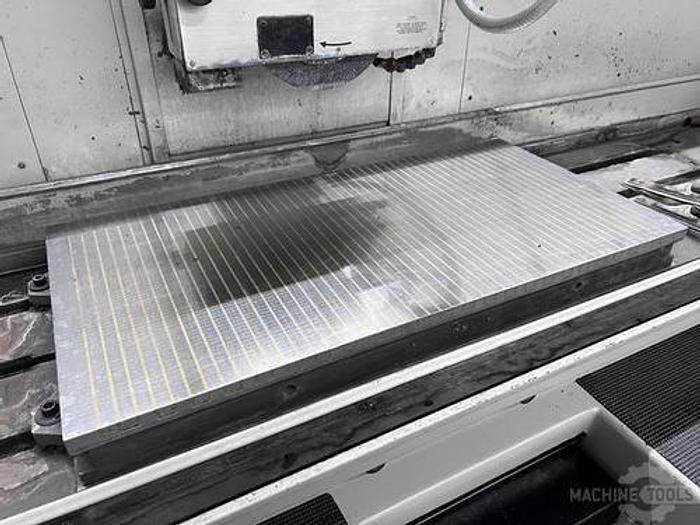

Electric Magnetic Chuck

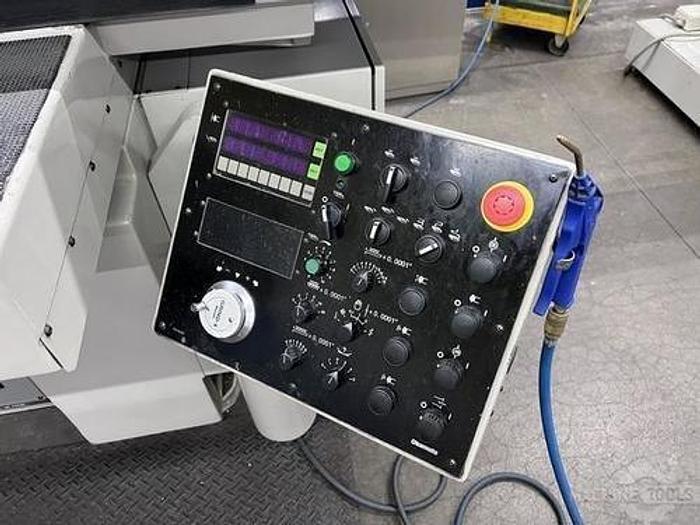

Automatic Chuck Control

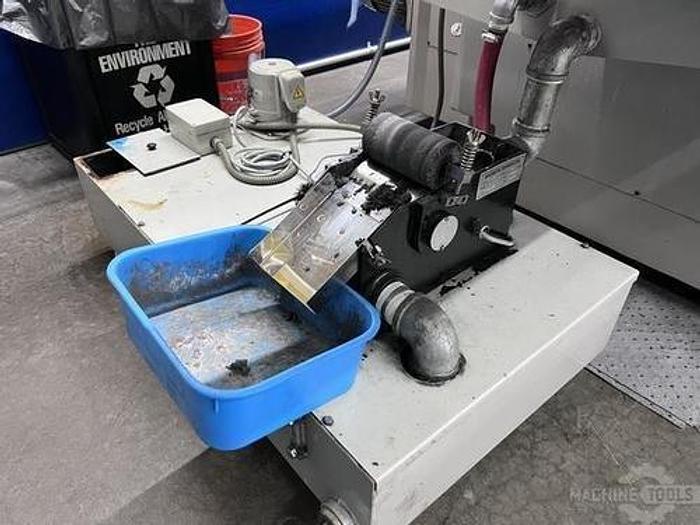

Coolant w/Magnetic Separator
Chiller Unit
**Rigging quoted by PW Walsh $2,314**
Specifications
Manufacturer | Okamoto |
Model | Grind-X ACC 2040DX |
Year | 2015 |
Condition | Used |
Stock Number | 118971 |
Chuck Size | 20"x40" |
Maximum Distance Under Wheel to Table | 21.5" |
Maximum Table Load | 1,540 lbs |
X-axis travel | 45" |
Y-Axis Travel | 21.3" |
Automatic Downfeed Increment | .0005" to .0015" |
Grinding Wheel Size | 12"x2"x5" |
Spindle Motor | 5 HP |
Spindle speed | 1,800 rpm |
Machine Dimensions LxWxH | 180"x96"x84" |
Machine Weight | 12,000 lbs |
