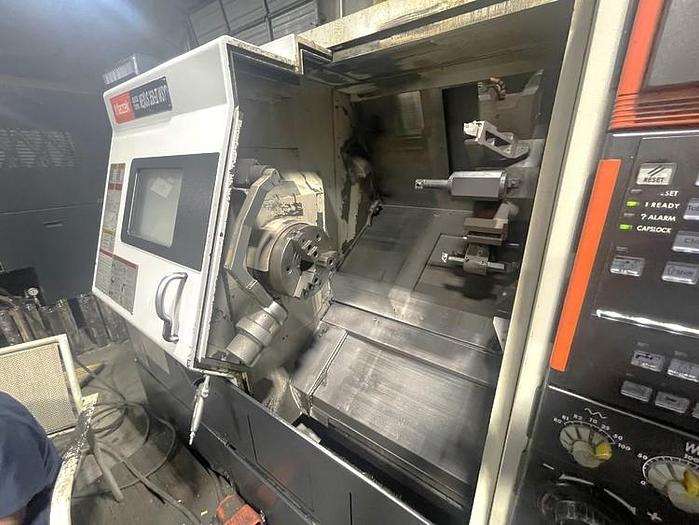

2010 Mazak Nexus QTN 350-II MSY/650
No longer available
2010 Mazak Nexus QTN 350-II MSY/650
$121,900 (USD)
Location:Louisiana
Description
Full C Axis on Main & Subspindle
Live Milling/Drilling Capability
Subspindle
Chip Conveyor

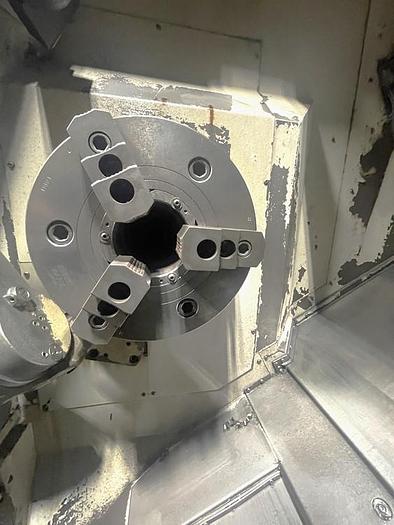

12" 3 Jaw Hydraulic Chuck on Main Spindle

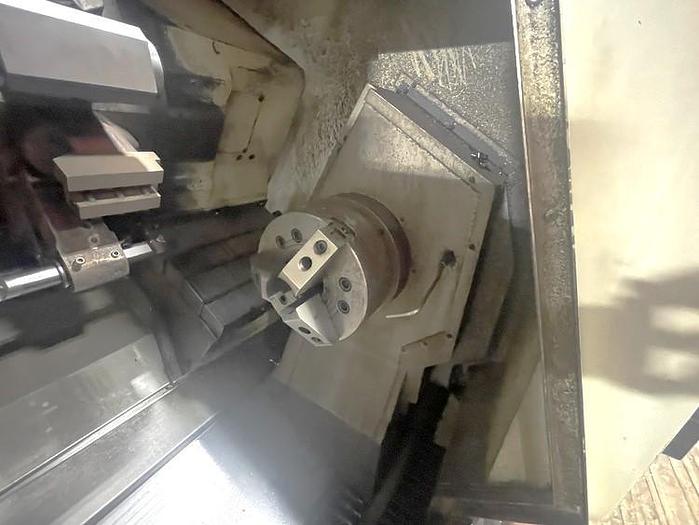

10" 3 Jaw Hydraulic Chuck on Subspindle
Tool Presetter
EIA/ISO Input Function
USB Port Interface
RS 232 Port Interface
Coolant System with Tank and Pump
Multi Tap Transformer
All Available Tooling including (4) Live Tool Holders & Static Tooling
All Available Manuals
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 350-II MSY/650 |
| Year | 2010 |
| Condition | Used |
| Stock Number | 118966 |

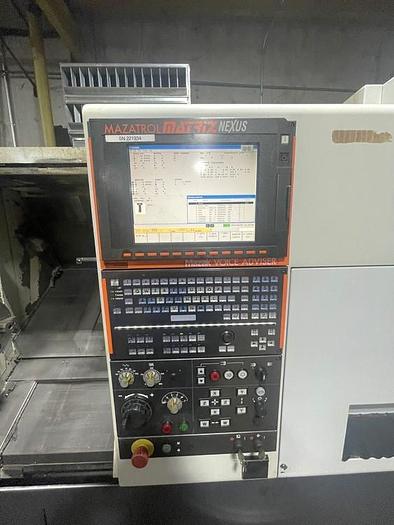

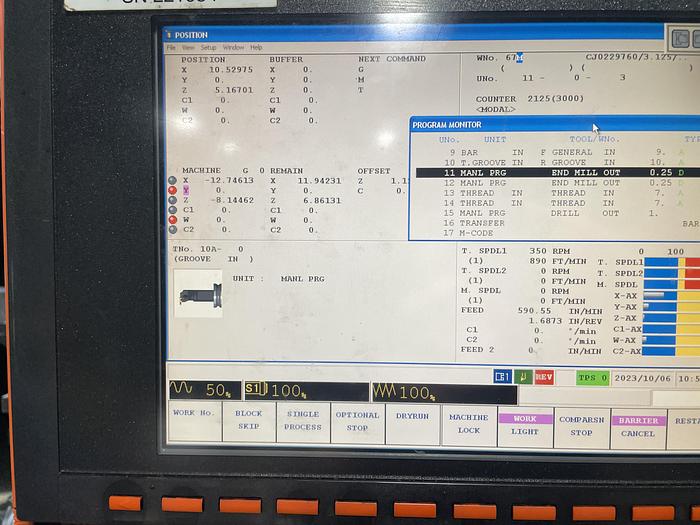

| Machine Control | Mazatrol Matrix Nexus |
| Chuck Sizes Main / Subspindle | 12" Hydraulic / 10" Hydraulic |
| Maximum swing | 29.5" |
| Maximum cutting diameter | 16.54" |
| Maximum machining length | 24.17" |
| X-axis travel | 10.76" |
| Y-Axis Travel | 6.0" (+/- 3.0") |
| Z-axis travel | 26.38" |
| C Axis Spindle Rotation | 0.001 Degree |
| C2 Axis Spindle Rotation | 0.001 Degree |
| W-Axis Travel - Subspindle | 26.63" |
| Spindle nose/spindle bore/bar capacity | A2-11"/4.4"/4.0" |
| Spindle speed | 3,300 RPM |
| Spindle motor 30 min. / cont. | 40 HP / 30 HP |
| Subspindle Speed | 4,000 RPM |
| Subspindle Motor | 35 HP |
| Live Tooling Speed / Motor | 4,000 RPM / 10 HP |

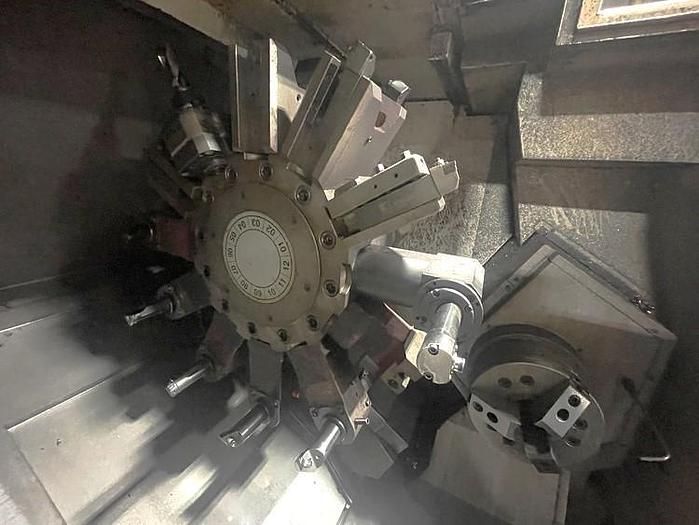

| Turret type | 12 Position Turret |
| Rapid Traverse Rates X / Z | 1181 IPM / 984 IPM |
| Machine dimensions lxwxh | 125" x 81" x 79" |
| Machine weight | 17,500 lbs. |
