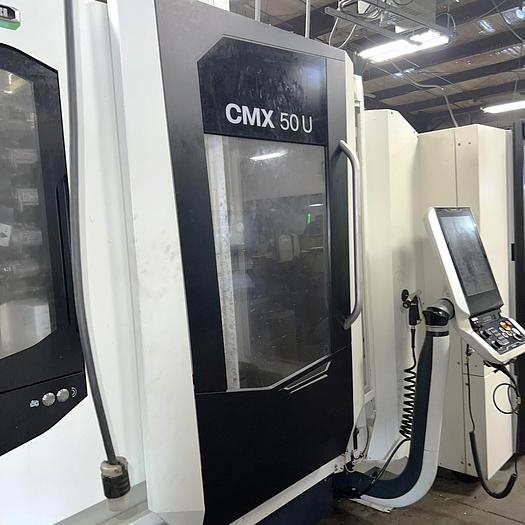

2021 DMG Mori CMX 50U with PH150M 10 Station Pallet System
No longer available
2021 DMG Mori CMX 50U with PH150M 10 Station Pallet System
$355,000 (USD)
Location:Ohio
Description
Machine Prep for PH 150 System

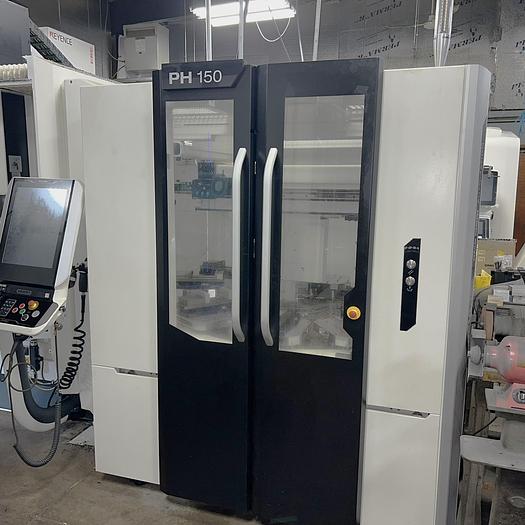

PH 150 FAMOT 10 Station Pallet System
PH 150 FAMOT Integration Kit for CMX U
Clamping Station EROWA UPC-P
Aluminum Pallet 320 mm x 320 mm EROWA UPC-P
Jobmanager - Control Comfort Plus

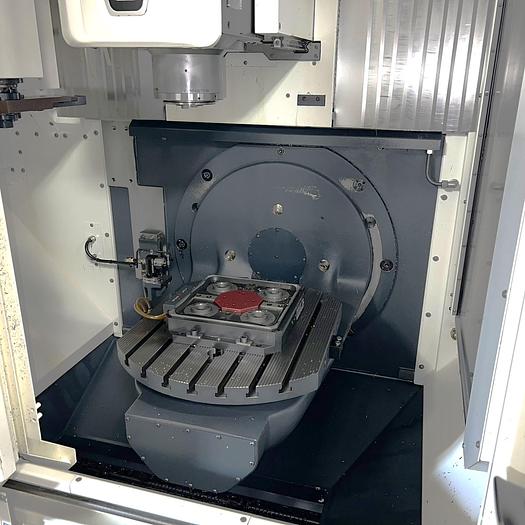

Trunnion Style 5th Axis Table
Coolant Through the Spindle - 40 Bar
Tool Probing - Renishaw
Part Probing - Renishaw
15,000 RPM Spindle
Chip Conveyor
60 Station Tool Changer
Application Tuning Cycle Software by Siemens
3D Quickset for CMXU
Prep for Oil-Mist Extractor Unit
Roto Clear with Multi-Layer Window
USB Port Interface
RS 232 Port Interface
Coolant System with Tank & Pump
**Price Machine New as Equipped at $436,050**
Specifications
| Manufacturer | DMG Mori |
| Model | CMX 50U with PH150M 10 Station Pallet System |
| Year | 2021 |
| Condition | Used |
| Stock Number | 118965 |
| Table size | 24.8″ x 19.7″ |
| Table load capacity | 440 lbs. |
| X axis travel | 19.6" |
| Y axis travel | 17.7" |
| Z axis travel | 15.74" |
| B axis rotate of trunnion | -5 Degrees to 110 Degrees |
| C axis table rotation | .001 Degree Positioning |
| Spindle taper | CAT #40 Taper |
| Spindle speed | 15,000 RPM |
| Spindle motor | 27.2 HP |
| Tool magazine | 60 + 1 Position Toolchanger |
| Maximum Tool Diameter / Weight | 2.76" / 17.6 lbs. |
| Rapid traverse rates | 1181 IPM |
| Machine dimensions | 163″ x 140″ x 107″ |
| Machine weight | 12,000 lbs Machine only |
