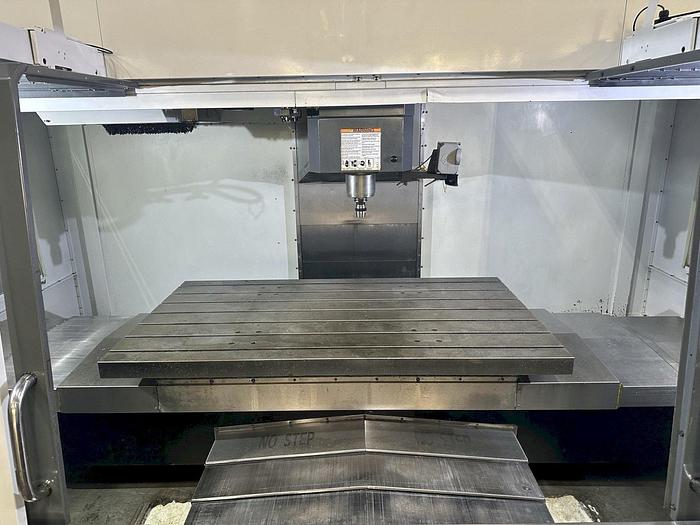

2013 Haas VF8/40
No longer available
2013 Haas VF8/40
$109,500 (USD)
Location:Ohio
Description
30 Station Side Mounted Tool Changer
Coolant Through the Spindle - 300 PSI
15,000 RPM Spindle
Rigid Tapping
Chip Auger Conveyor
Remote Jog Handle
Programmable Coolant Nozzle
Upgraded 95 Gallon Coolant System with Tank & Pump
Ethernet Interface
USB Port Interface
RS 232 Port Interface
Memory Key Lock Switch
Specifications
| Manufacturer | Haas |
| Model | VF8/40 |
| Year | 2013 |
| Condition | Used |
| Stock Number | 118959 |

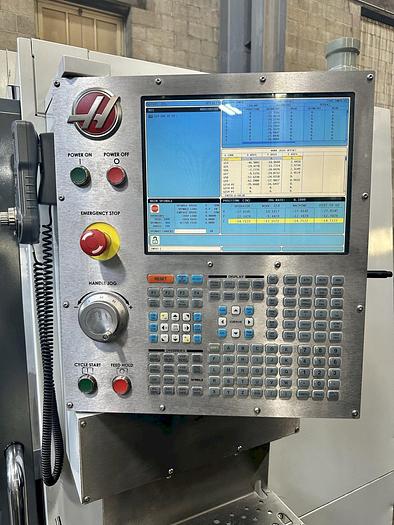

| Machine Control | Haas 32 BIT |
| Table size | 64"x 36" |
| Maximum Table Load | 4,000 lbs |
| X-Axis Travel | 64" |
| Y-Axis Travel | 40" |
| Z-Axis Travel | 30" |
| Spindle Taper | CAT 40 |
| Spindle Motor | 30 HP |
| Spindle Speeds | 15,000 RPM |
| Distance Spindle Nose to Table Top | 4" - 34" |
| Tool Magazine Capacity | 30 Position Side Mount ATC |
| Maximum Tool Diameter / Weight | 5.3" / 25 lbs. |
| Rapid Traverse Rates X / Y, Z | 540 IPM / 600 IPM |
| Machine Dimensions LxWxH | 193"x120"x130" |
| Machine Weight | 24,800 lbs. |
